Intel® Server Board S3420GP TPS
4.

Platform Management

This chapter is only for The Intel
S3420GPLC.
The platform management subsystem is based on the Integrated BMC features of the
ServerEngines* Pilot II. The onboard platform management subsystem consists of
communication buses, sensors, system BIOS, and server management firmware. The following
diagram provides an overview of the Server Management Bus (SMBUS) architecture used on
this server board.

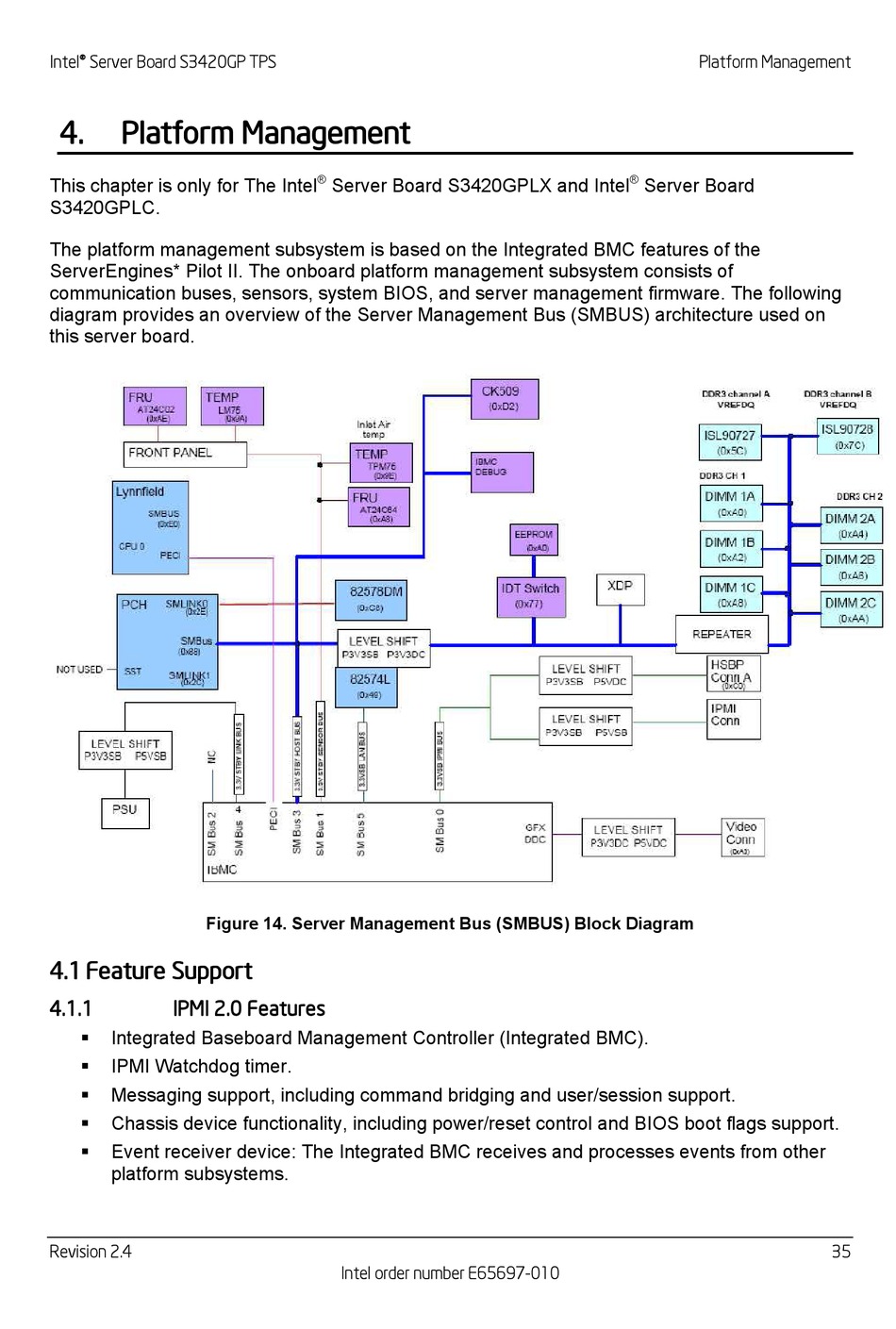

Figure 14. Server Management Bus (SMBUS) Block Diagram

4.1 Feature Support

4.1.1

IPMI 2.0 Features

 Integrated Baseboard Management Controller (Integrated BMC).
 IPMI Watchdog timer.
 Messaging support, including command bridging and user/session support.
 Chassis device functionality, including power/reset control and BIOS boot flags support.
Event receiver device: The Integrated BMC receives and processes events from other

platform subsystems.
Revision 2.4
®
Server Board S3420GPLX and Intel
Intel order number E65697-010
Platform Management
®
Server Board
35
