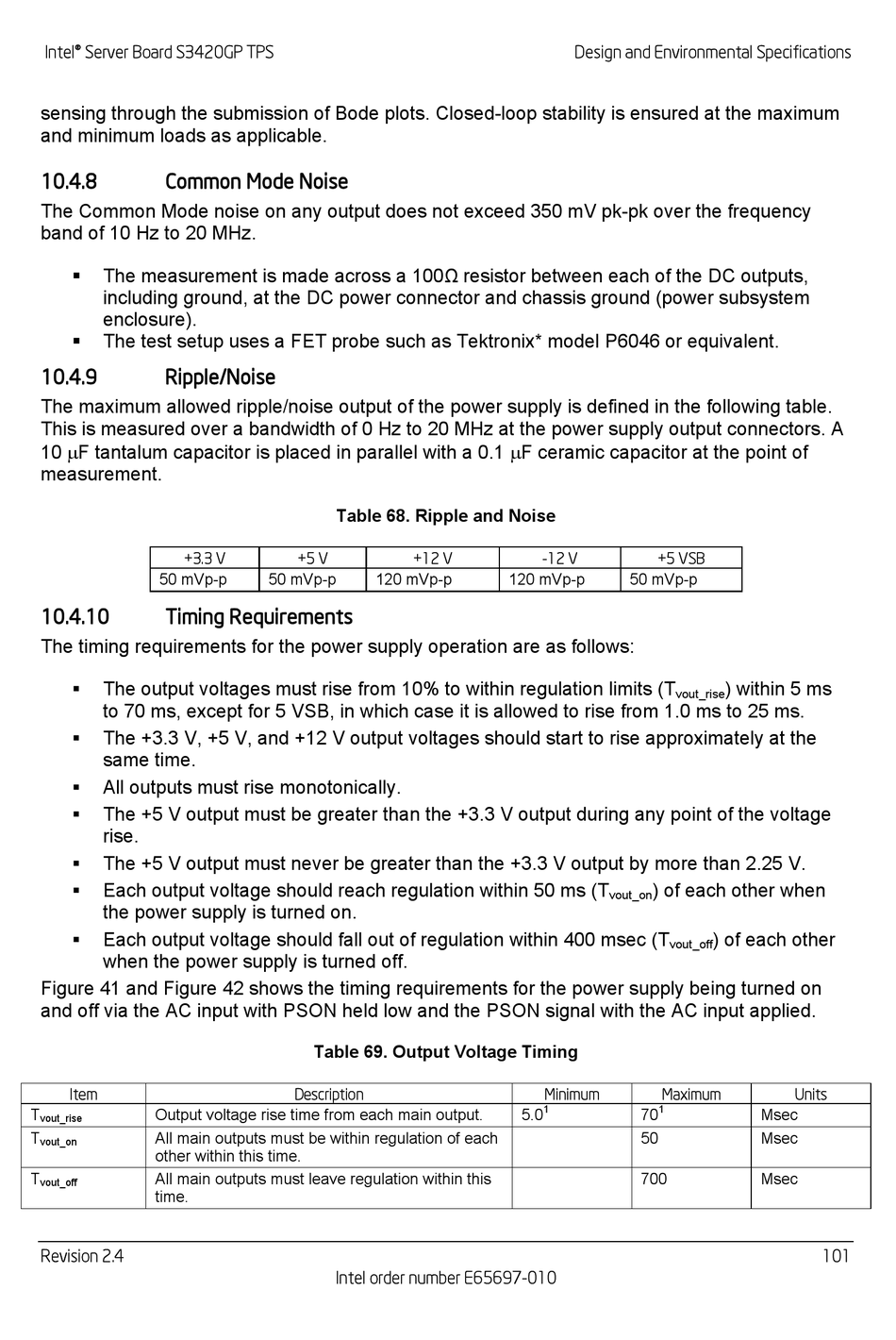

Intel® Server Board S3420GP TPS
sensing through the submission of Bode plots. Closed-loop stability is ensured at the maximum
and minimum loads as applicable.
10.4.8

Common Mode Noise

The Common Mode noise on any output does not exceed 350 mV pk-pk over the frequency
band of 10 Hz to 20 MHz.
 The measurement is made across a 100Ω resistor between each of the DC outputs,
including ground, at the DC power connector and chassis ground (power subsystem
enclosure).
 The test setup uses a FET probe such as Tektronix* model P6046 or equivalent.
10.4.9

Ripple/Noise

The maximum allowed ripple/noise output of the power supply is defined in the following table.
This is measured over a bandwidth of 0 Hz to 20 MHz at the power supply output connectors. A
10 F tantalum capacitor is placed in parallel with a 0.1 F ceramic capacitor at the point of
measurement.
+3.3 V
50 mVp-p
10.4.10

Timing Requirements

The timing requirements for the power supply operation are as follows:
The output voltages must rise from 10% to within regulation limits (T

to 70 ms, except for 5 VSB, in which case it is allowed to rise from 1.0 ms to 25 ms.
The +3.3 V, +5 V, and +12 V output voltages should start to rise approximately at the

same time.
All outputs must rise monotonically.

The +5 V output must be greater than the +3.3 V output during any point of the voltage

rise.
The +5 V output must never be greater than the +3.3 V output by more than 2.25 V.

Each output voltage should reach regulation within 50 ms (T

the power supply is turned on.
Each output voltage should fall out of regulation within 400 msec (T

when the power supply is turned off.
Figure 41 and Figure 42 shows the timing requirements for the power supply being turned on
and off via the AC input with PSON held low and the PSON signal with the AC input applied.
Item
T Output voltage rise time from each main output.
vout_rise
T All main outputs must be within regulation of each
vout_on
other within this time.
T All main outputs must leave regulation within this
vout_off
time.
Revision 2.4

Table 68. Ripple and Noise

+5 V +12 V
50 mVp-p 120 mVp-p

Table 69. Output Voltage Timing

Description
Intel order number E65697-010
Design and Environmental Specifications
-12 V +5 VSB
120 mVp-p 50 mVp-p
vout_rise
) of each other when
vout_on
vout_off
Minimum Maximum
1 1
5.0 70
50
700
) within 5 ms
) of each other
Units
Msec
Msec
Msec
101
