Figure 16. Setup Utility - Fan Controller (Manual) Display; Table 14. Setup Utility - Hardware Monitor Screen Fields - Intel S3420GPLC - Server Board Motherboard Specification

Intel® Server Board S3420GP TPS
Advanc
Main

ed
Hardware monitor
Real-time Temperature and Voltage Status
Fan Controller
CPU Fan
Hysteresis
Default Fan PW M
System Fan
Hysteresis
Default Fan PWM
Auxiliary Fan 1
Hysteresis
Default Fan PWM
Auxiliary Fan 2
Hysteresis
Default Fan PWM
Setup Item
Voltage and
Temperature Status
CPU Fan Controller
Revision 2.4
Secu rit Server
y Management
Manual
[2 Degree Celsius/3 Degree Celsius/4 Degree Celsius
[40%/60%/80%/100%]
[2 Degree Celsius/3 Degree Celsius/4 Degree Celsius
[40%/60%/80%/100%]
[2 Degree Celsius/3 Degree Celsius/4 Degree Celsius
[40%/60%/80%/100%]
[2 Degree Celsius/3 Degree Celsius/4 Degree Celsius
[40%/60%/80%/100%]

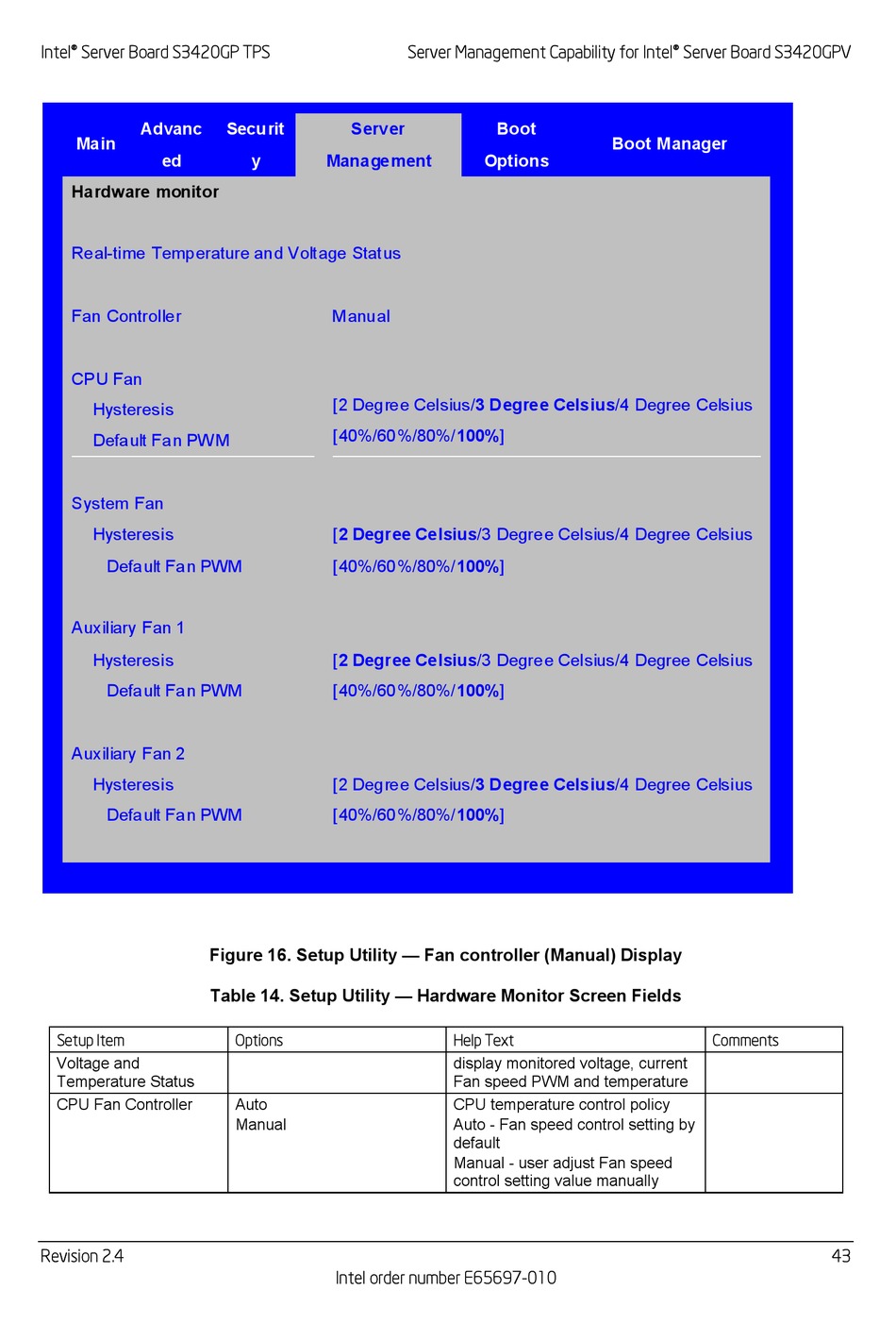

Figure 16. Setup Utility — Fan controller (Manual) Display
Table 14. Setup Utility — Hardware Monitor Screen Fields
Options
Auto
Manual
Intel order number E65697-010
Server Management Capability for Intel® Server Board S3420GPV
Boot
Options
Help Text
display monitored voltage, current
Fan speed PWM and temperature
CPU temperature control policy
Auto - Fan speed control setting by
default
Manual - user adjust Fan speed
control setting value manually
Boot Manager 
Comments
43
