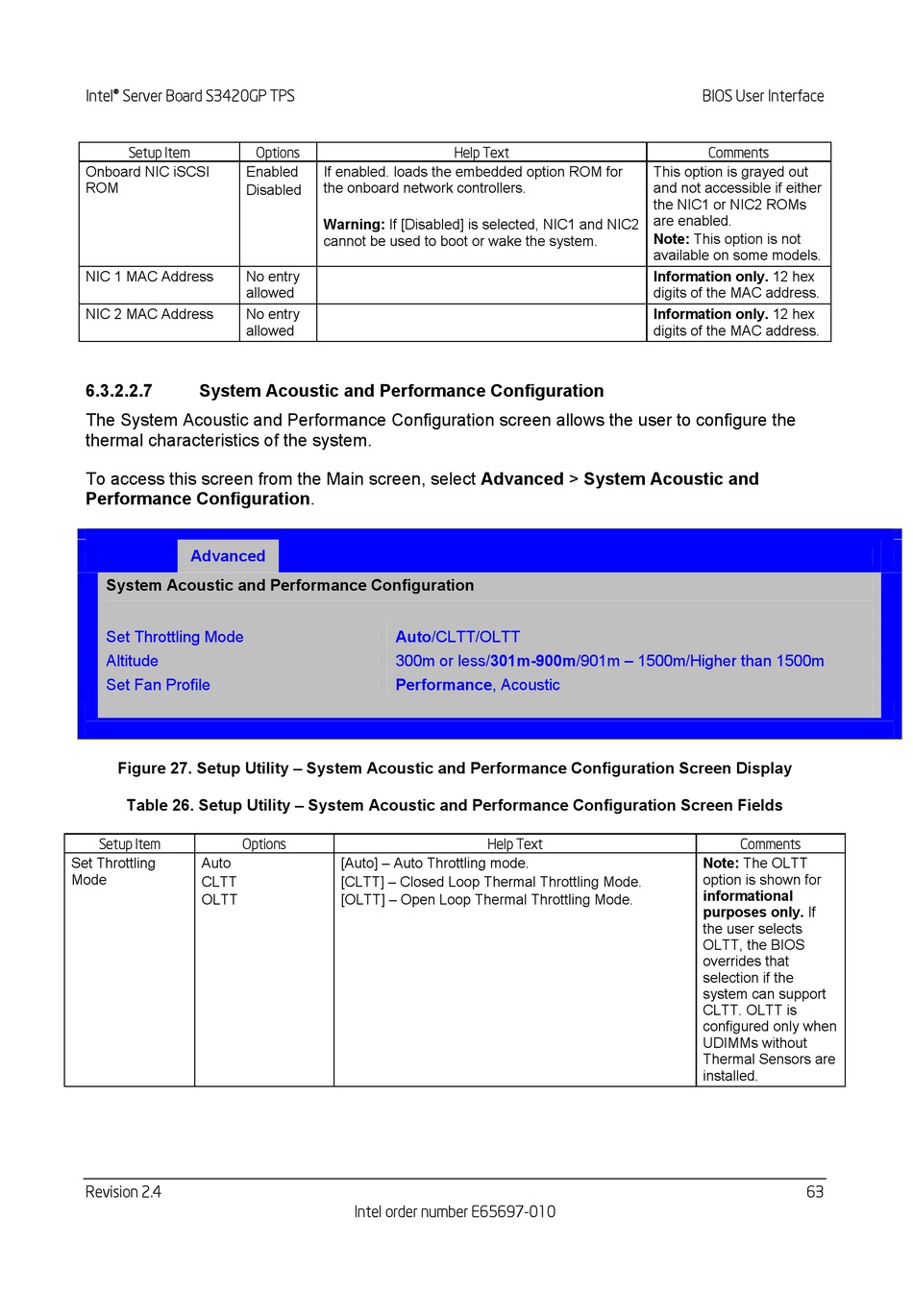

Figure 27. Setup Utility - System Acoustic And Performance Configuration Screen Display; Table 26. Setup Utility - System Acoustic And Performance Configuration Screen Fields - Intel S3420GPLC - Server Board Motherboard Specification

Intel® Server Board S3420GP TPS
Setup Item
Onboard NIC iSCSI
ROM
NIC 1 MAC Address
NIC 2 MAC Address
6.3.2.2.7 System Acoustic and Performance Configuration
The System Acoustic and Performance Configuration screen allows the user to configure the
thermal characteristics of the system.
To access this screen from the Main screen, select Advanced > System Acoustic and
Performance Configuration.
Advanced

System Acoustic and Performance Configuration
Set Throttling Mode
Altitude
Set Fan Profile
Figure 27. Setup Utility – System Acoustic and Performance Configuration Screen Display
Table 26. Setup Utility – System Acoustic and Performance Configuration Screen Fields
Setup Item
Set Throttling Auto
Mode
CLTT
OLTT
