BIOS User Interface
Advance
Main

d
System Boot Timeout
Boot Option #1
Boot Option #2
Boot Option #x
Hard Disk Order
CDROM Order
Network Device Order
►Delete Boot Option
EFI Optimized Boot
Boot Option Retry
Setup Item
Boot Timeout
Boot Option #x
Hard Disk Order
CDROM Order
Floppy Order
Network Device Order
70
Security Server Management

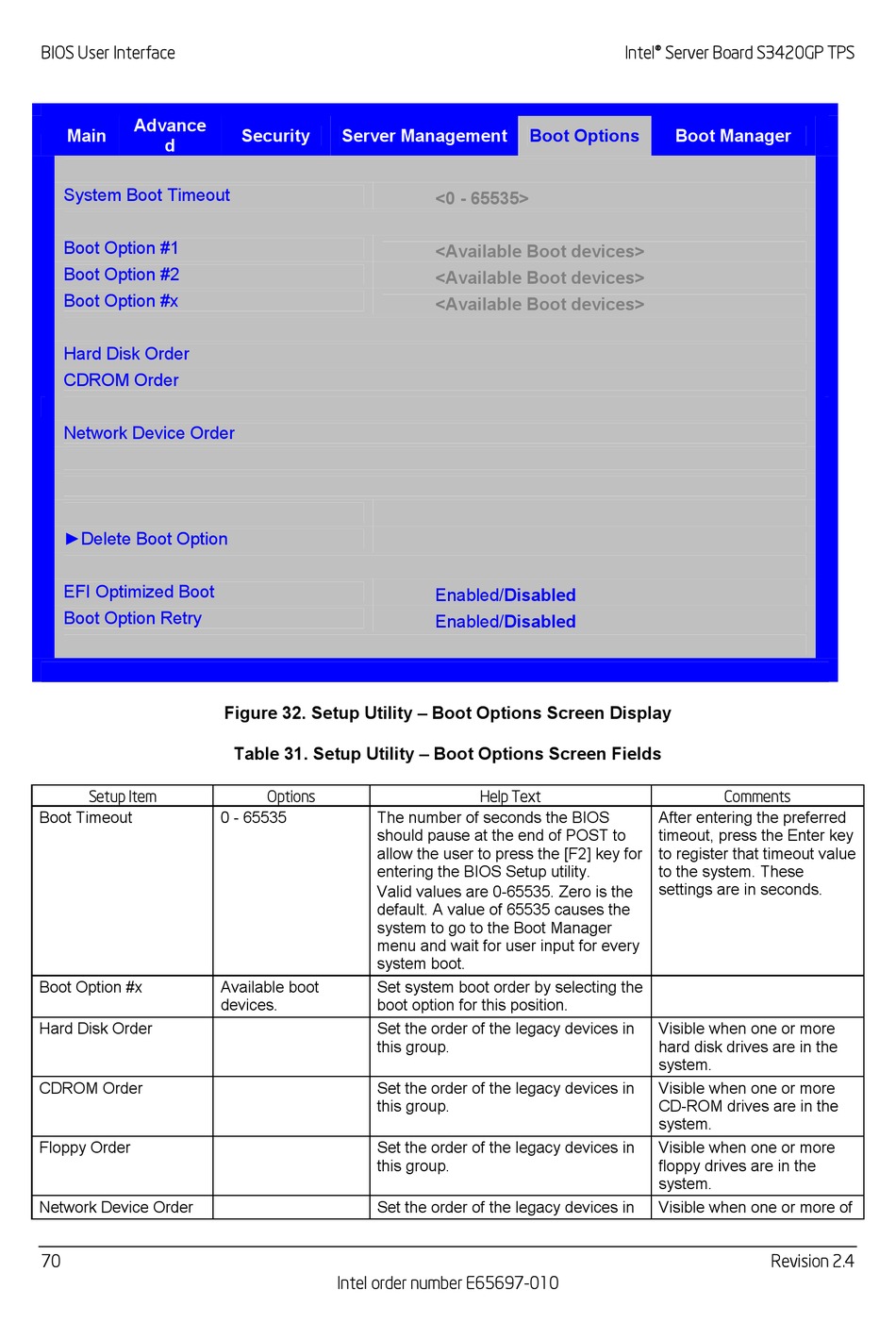

Figure 32. Setup Utility – Boot Options Screen Display
Table 31. Setup Utility – Boot Options Screen Fields
Options
0 - 65535 The number of seconds the BIOS
should pause at the end of POST to
allow the user to press the [F2] key for
entering the BIOS Setup utility.
Valid values are 0-65535. Zero is the
default. A value of 65535 causes the
system to go to the Boot Manager
menu and wait for user input for every
system boot.
Available boot Set system boot order by selecting the
devices. boot option for this position.
Set the order of the legacy devices in
this group.
Set the order of the legacy devices in
this group.
Set the order of the legacy devices in
this group.
Set the order of the legacy devices in
Intel order number E65697-010
Boot Options
<0 - 65535>
<Available Boot devices>
<Available Boot devices>
<Available Boot devices>
Enabled/Disabled
Enabled/Disabled
Help Text
Intel® Server Board S3420GP TPS
Boot Manager
Comments
After entering the preferred
timeout, press the Enter key
to register that timeout value
to the system. These
settings are in seconds.
Visible when one or more
hard disk drives are in the
system.
Visible when one or more
CD-ROM drives are in the
system.
Visible when one or more
floppy drives are in the
system.
Visible when one or more of
Revision 2.4

