BIOS User Interface
Setup Item
Delete Boot Option
6.3.2.6.2 Hard Disk Order Screen
The Hard Disk Order screen allows the user to control the hard disks.
To access this screen from the Main screen, choose Boot Options > Hard Disk Order.

Hard Disk #1
Hard Disk #2

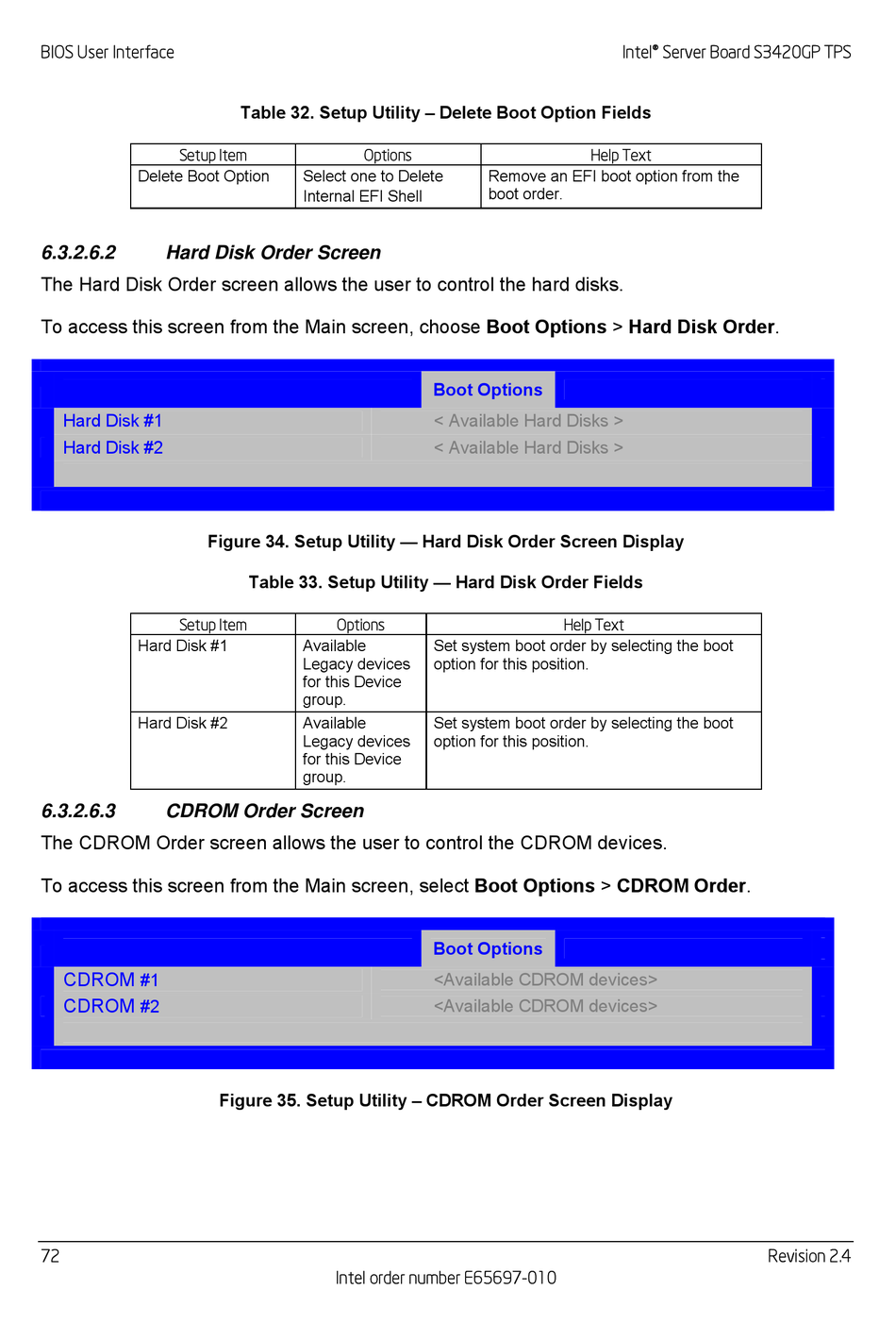

Figure 34. Setup Utility — Hard Disk Order Screen Display
Setup Item
Hard Disk #1
Hard Disk #2
6.3.2.6.3 CDROM Order Screen
The CDROM Order screen allows the user to control the CDROM devices.
To access this screen from the Main screen, select Boot Options > CDROM Order.

CDROM
#1
CDROM
#2
72
Table 32. Setup Utility – Delete Boot Option Fields
Options
Select one to Delete
Internal EFI Shell
Table 33. Setup Utility — Hard Disk Order Fields
Options
Available
Legacy devices
for this Device
group.
Available
Legacy devices
for this Device
group.
Figure 35. Setup Utility – CDROM Order Screen Display
Intel order number E65697-010
Help Text
Remove an EFI boot option from the
boot order.
Boot Options
< Available Hard Disks >
< Available Hard Disks >
Help Text
Set system boot order by selecting the boot
option for this position.
Set system boot order by selecting the boot
option for this position.
Boot Options
<Available CDROM devices>
<Available CDROM devices>
Intel® Server Board S3420GP TPS
Revision 2.4


