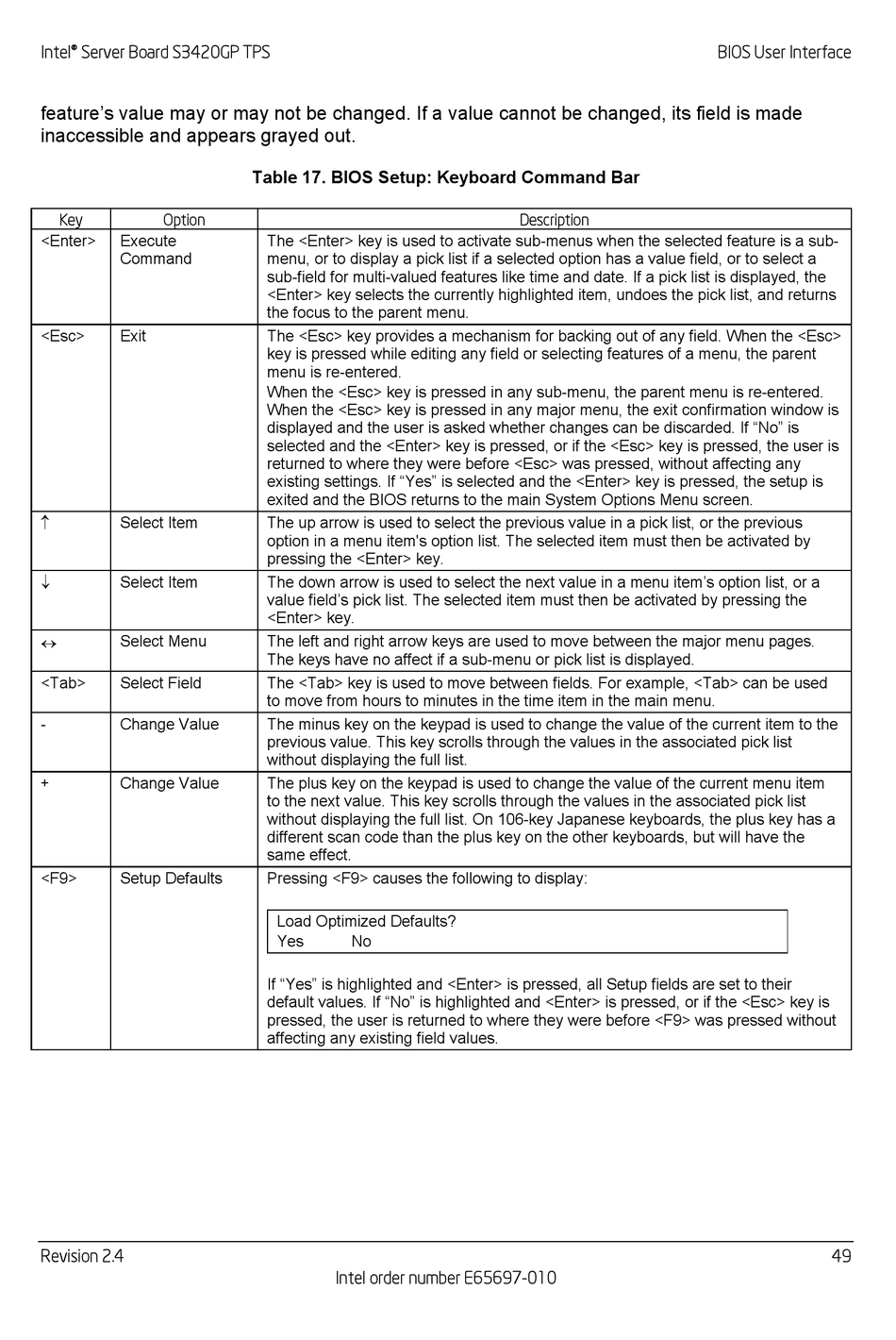

Table 17. Bios Setup: Keyboard Command Bar - Intel S3420GPLC - Server Board Motherboard Specification

Intel® Server Board S3420GP TPS
feature's value may or may not be changed. If a value cannot be changed, its field is made
inaccessible and appears grayed out.
Key Option
<Enter> Execute
Command
<Esc> Exit

Select Item

Select Item
 Select Menu
<Tab> Select Field
- Change Value
+ Change Value
<F9> Setup Defaults
Revision 2.4

Table 17. BIOS Setup: Keyboard Command Bar

The <Enter> key is used to activate sub-menus when the selected feature is a sub-
menu, or to display a pick list if a selected option has a value field, or to select a
sub-field for multi-valued features like time and date. If a pick list is displayed, the
<Enter> key selects the currently highlighted item, undoes the pick list, and returns
the focus to the parent menu.
The <Esc> key provides a mechanism for backing out of any field. When the <Esc>
key is pressed while editing any field or selecting features of a menu, the parent
menu is re-entered.
When the <Esc> key is pressed in any sub-menu, the parent menu is re-entered.
When the <Esc> key is pressed in any major menu, the exit confirmation window is
displayed and the user is asked whether changes can be discarded. If "No" is
selected and the <Enter> key is pressed, or if the <Esc> key is pressed, the user is
returned to where they were before <Esc> was pressed, without affecting any
existing settings. If "Yes" is selected and the <Enter> key is pressed, the setup is
exited and the BIOS returns to the main System Options Menu screen.
The up arrow is used to select the previous value in a pick list, or the previous
option in a menu item's option list. The selected item must then be activated by
pressing the <Enter> key.
The down arrow is used to select the next value in a menu item's option list, or a
value field's pick list. The selected item must then be activated by pressing the
<Enter> key.
The left and right arrow keys are used to move between the major menu pages.
The keys have no affect if a sub-menu or pick list is displayed.
The <Tab> key is used to move between fields. For example, <Tab> can be used
to move from hours to minutes in the time item in the main menu.
The minus key on the keypad is used to change the value of the current item to the
previous value. This key scrolls through the values in the associated pick list
without displaying the full list.
The plus key on the keypad is used to change the value of the current menu item
to the next value. This key scrolls through the values in the associated pick list
without displaying the full list. On 106-key Japanese keyboards, the plus key has a
different scan code than the plus key on the other keyboards, but will have the
same effect.
Pressing <F9> causes the following to display:
Load Optimized Defaults?
Yes No
If "Yes" is highlighted and <Enter> is pressed, all Setup fields are set to their
default values. If "No" is highlighted and <Enter> is pressed, or if the <Esc> key is
pressed, the user is returned to where they were before <F9> was pressed without
affecting any existing field values.
