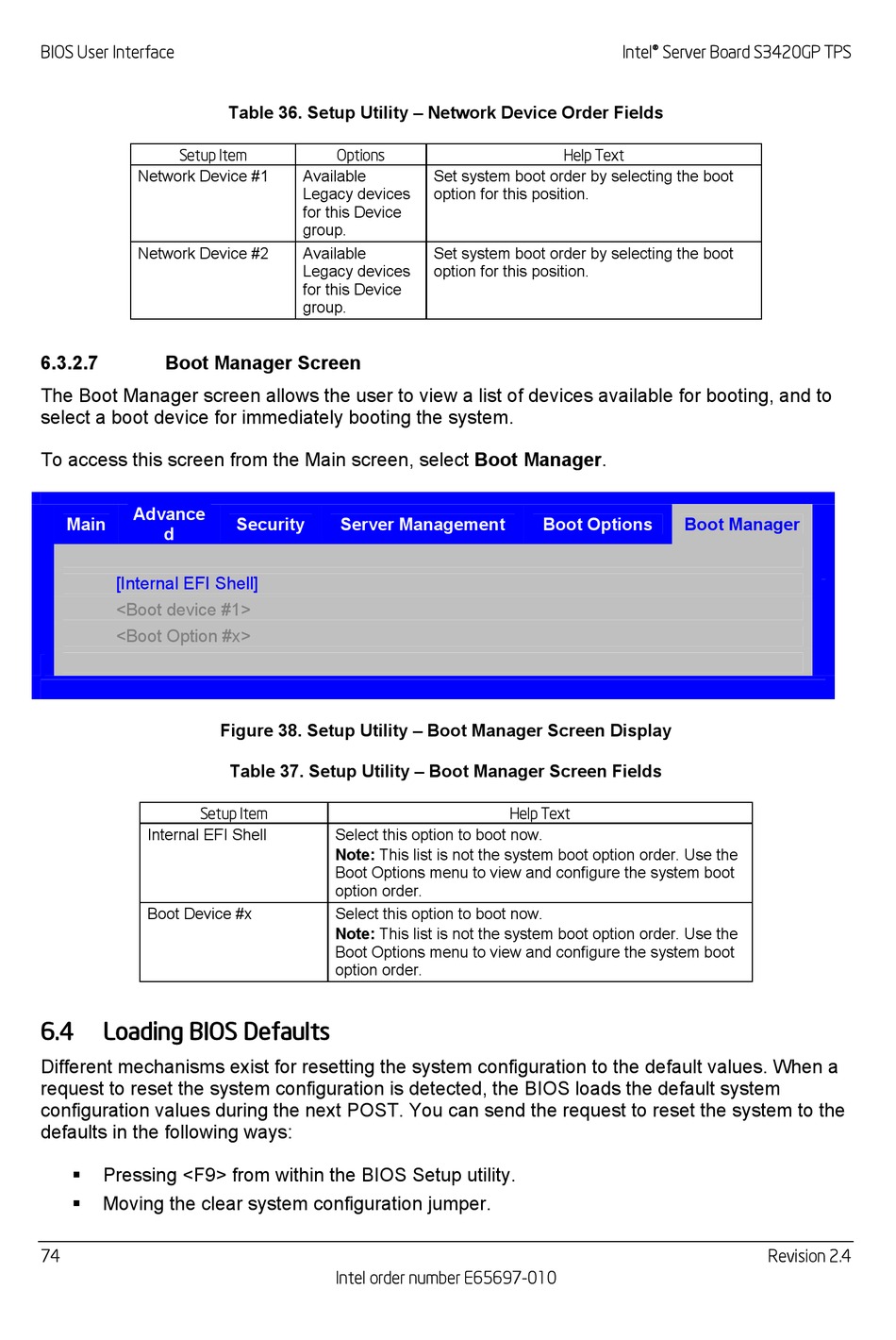

Loading Bios Defaults; Figure 38. Setup Utility - Boot Manager Screen Display; Table 36. Setup Utility - Network Device Order Fields; Table 37. Setup Utility - Boot Manager Screen Fields - Intel S3420GPLC - Server Board Motherboard Specification

BIOS User Interface
Setup Item
Network Device #1
Network Device #2
6.3.2.7 Boot Manager Screen
The Boot Manager screen allows the user to view a list of devices available for booting, and to
select a boot device for immediately booting the system.
To access this screen from the Main screen, select Boot Manager.
Advance
Main
d
[Internal EFI Shell]
<Boot device #1>
<Boot Option #x>

Setup Item
Internal EFI Shell
Boot Device #x
6.4

Loading BIOS Defaults

Different mechanisms exist for resetting the system configuration to the default values. When a
request to reset the system configuration is detected, the BIOS loads the default system
configuration values during the next POST. You can send the request to reset the system to the
defaults in the following ways:
 Pressing <F9> from within the BIOS Setup utility.
 Moving the clear system configuration jumper.
74
Table 36. Setup Utility – Network Device Order Fields
Options
Available
Legacy devices
for this Device
group.
Available
Legacy devices
for this Device
group.
Security Server Management
Figure 38. Setup Utility – Boot Manager Screen Display
Table 37. Setup Utility – Boot Manager Screen Fields
Select this option to boot now.
Note: This list is not the system boot option order. Use the
Boot Options menu to view and configure the system boot
option order.
Select this option to boot now.
Note: This list is not the system boot option order. Use the
Boot Options menu to view and configure the system boot
option order.
Intel order number E65697-010
Help Text
Set system boot order by selecting the boot
option for this position.
Set system boot order by selecting the boot
option for this position.
Boot Options
Help Text
Intel® Server Board S3420GP TPS
Boot Manager
Revision 2.4

