Intel® Server Board S3420GP TPS
Setup Item
O/S Boot Watchdog
Timer
O/S Boot Watchdog
Timer Policy
O/S Boot Watchdog
Timer Timeout
Plug & Play BMC
Detection
ACPI 1.0 Support
Console Redirection
System Information
6.3.2.4.1 Console Redirection Screen
The Console Redirection screen allows the user to enable or disable console redirection and to
configure the connection options for this feature.
To access this screen from the Main screen, select Server Management > Console
Redirection.

Console Redirection
Console Redirection
Flow Control
Baud Rate
Terminal Type
Legacy OS Redirection
Revision 2.4
Options
Enabled If enabled, the BIOS programs the watchdog timer
with the timeout value selected. If the OS does not
Disabled
complete booting before the timer expires, the BMC
resets the system and an error is logged.
Requires OS support or Intel Management Software.
Power Off If the OS boot watchdog timer is enabled, this is the
system action taken if the watchdog timer expires.
Reset
[Reset] - System performs a reset.
[Power Off] - System powers off.
5 minutes If the OS watchdog timer is enabled, this is the
timeout value used by the BIOS to configure the
10 minutes
watchdog timer.
15 minutes
20 minutes
Enabled If enabled, the BMC is detectable by OSs that support
plug and play loading of an IPMI driver. Do not enable
Disabled
if your OS does not support this driver.
Enabled [Enabled] - Publish ACPI 1.0 version of FADT in Root
System Description Table.
Disabled
This may be required for compatibility with OS
versions that only support ACPI 1.0.
View/Configure console redirection information and
settings.
View system information
Server Management

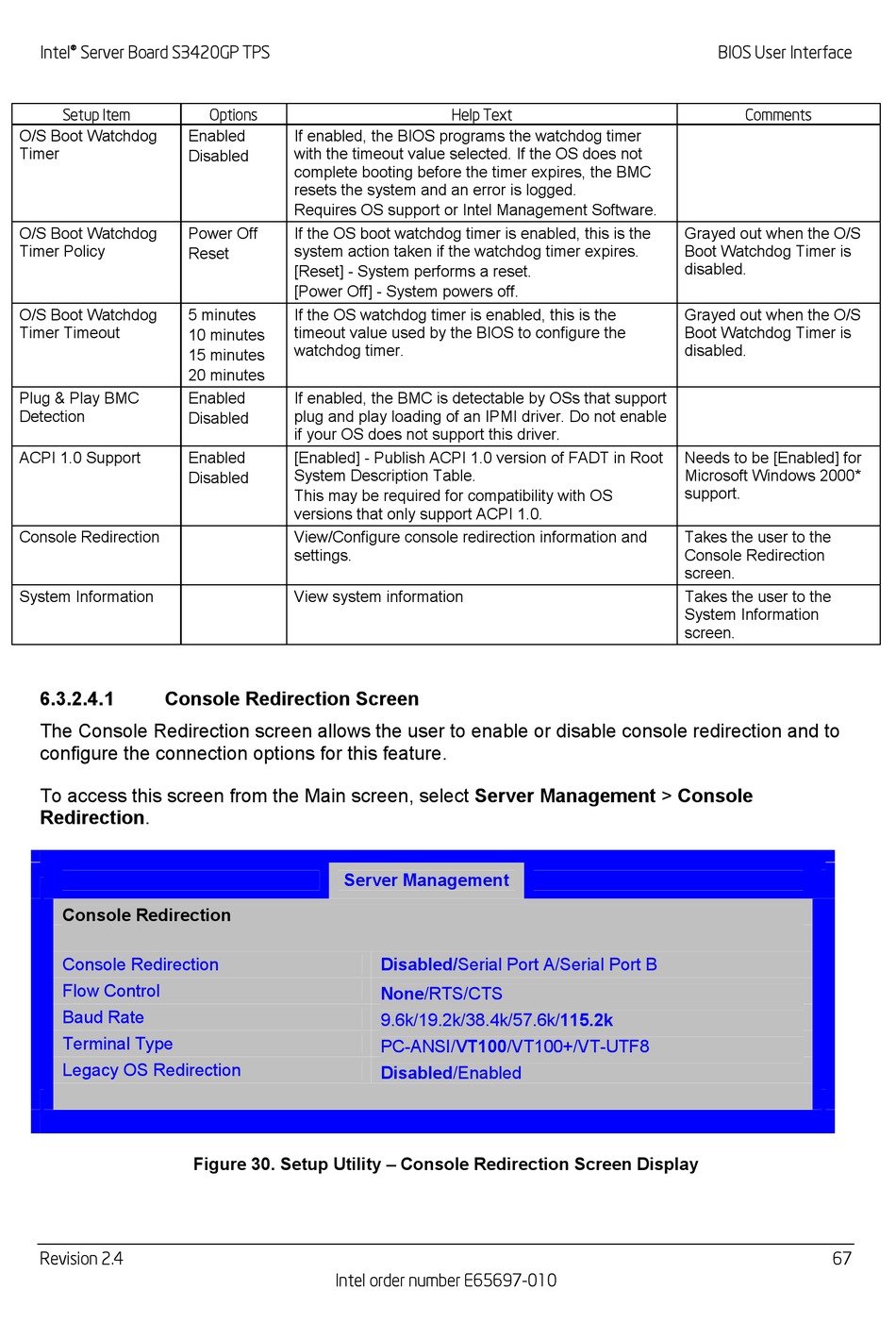

Figure 30. Setup Utility – Console Redirection Screen Display
Intel order number E65697-010
Help Text
Disabled/Serial Port A/Serial Port B
None/RTS/CTS
9.6k/19.2k/38.4k/57.6k/115.2k
PC-ANSI/VT100/VT100+/VT-UTF8
Disabled/Enabled
BIOS User Interface
Comments
Grayed out when the O/S
Boot Watchdog Timer is
disabled.
Grayed out when the O/S
Boot Watchdog Timer is
disabled.
Needs to be [Enabled] for
Microsoft Windows 2000*
support.
Takes the user to the
Console Redirection
screen.
Takes the user to the
System Information
screen.

67
