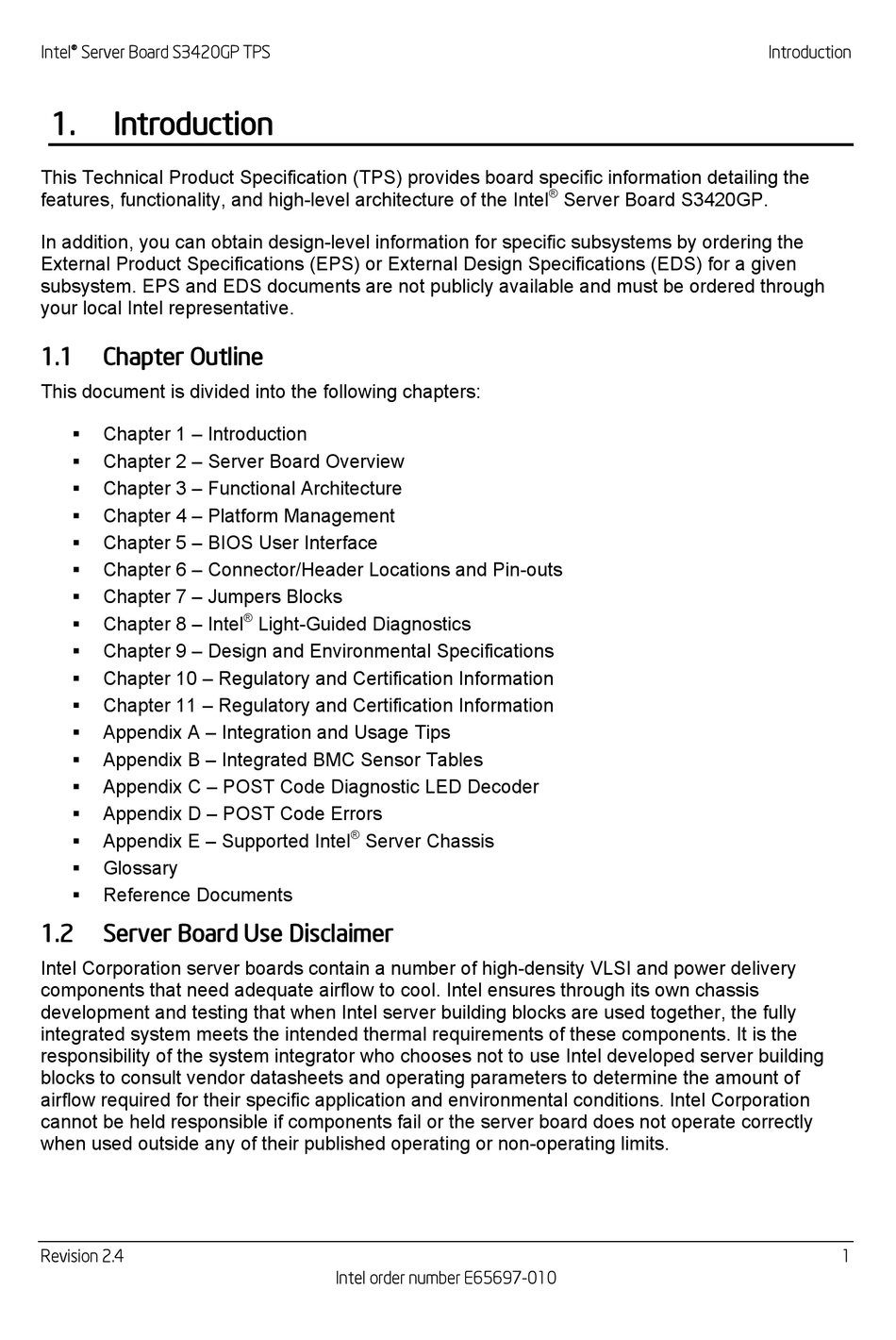

Intel® Server Board S3420GP TPS
1.

Introduction

This Technical Product Specification (TPS) provides board specific information detailing the
features, functionality, and high-level architecture of the Intel
In addition, you can obtain design-level information for specific subsystems by ordering the
External Product Specifications (EPS) or External Design Specifications (EDS) for a given
subsystem. EPS and EDS documents are not publicly available and must be ordered through
your local Intel representative.
1.1

Chapter Outline

This document is divided into the following chapters:
Chapter 1 – Introduction

Chapter 2 – Server Board Overview

Chapter 3 – Functional Architecture

Chapter 4 – Platform Management

Chapter 5 – BIOS User Interface

Chapter 6 – Connector/Header Locations and Pin-outs

Chapter 7 – Jumpers Blocks

Chapter 8 – Intel

Chapter 9 – Design and Environmental Specifications

Chapter 10 – Regulatory and Certification Information

Chapter 11 – Regulatory and Certification Information

Appendix A – Integration and Usage Tips

Appendix B – Integrated BMC Sensor Tables

Appendix C – POST Code Diagnostic LED Decoder

Appendix D – POST Code Errors

Appendix E – Supported Intel

Glossary

Reference Documents

1.2

Server Board Use Disclaimer

Intel Corporation server boards contain a number of high-density VLSI and power delivery
components that need adequate airflow to cool. Intel ensures through its own chassis
development and testing that when Intel server building blocks are used together, the fully
integrated system meets the intended thermal requirements of these components. It is the
responsibility of the system integrator who chooses not to use Intel developed server building
blocks to consult vendor datasheets and operating parameters to determine the amount of
airflow required for their specific application and environmental conditions. Intel Corporation
cannot be held responsible if components fail or the server board does not operate correctly
when used outside any of their published operating or non-operating limits.
Revision 2.4
®
Light-Guided Diagnostics
®
Server Chassis
Intel order number E65697-010
®
Server Board S3420GP.
Introduction
1
