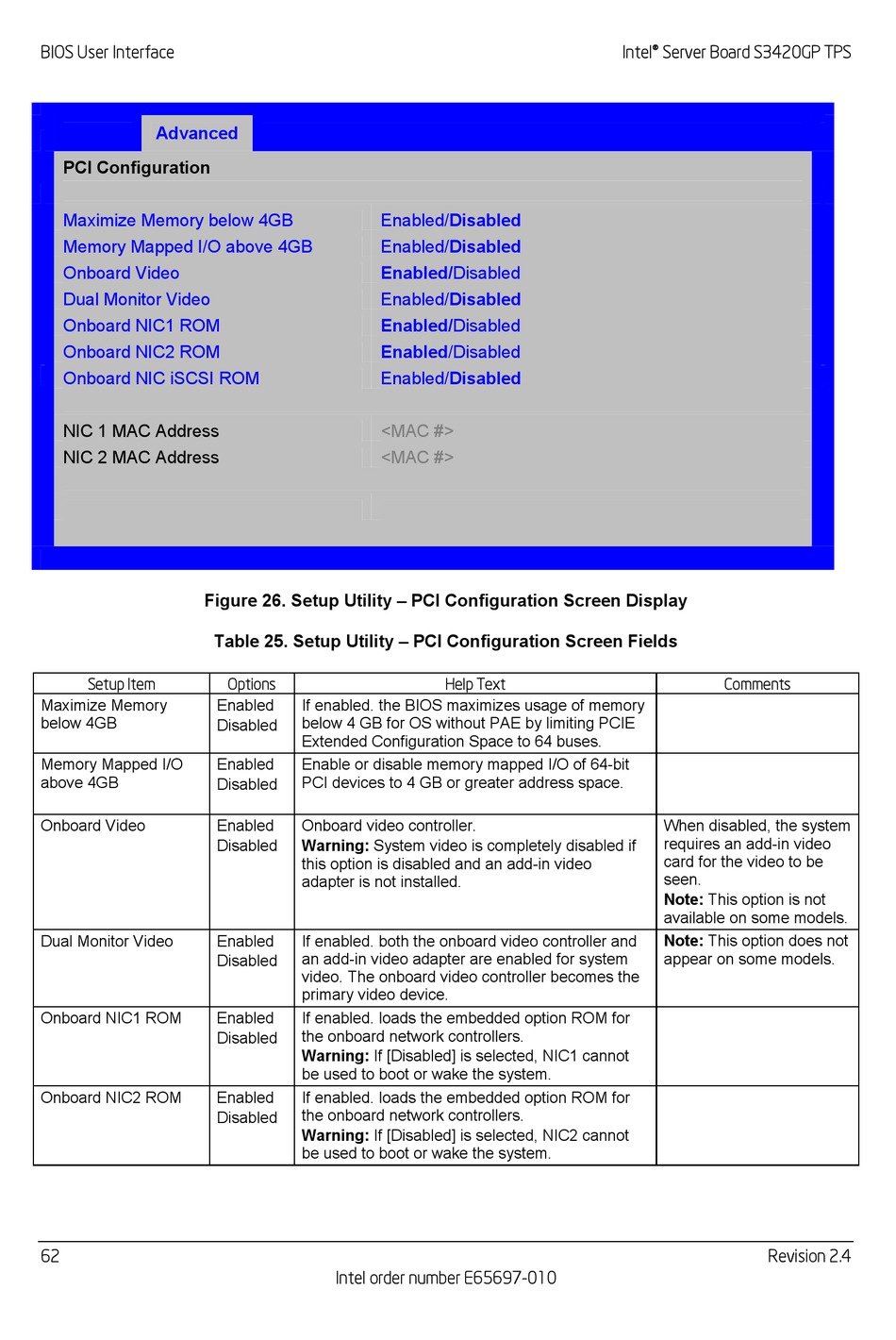

Figure 26. Setup Utility - Pci Configuration Screen Display; Table 25. Setup Utility - Pci Configuration Screen Fields - Intel S3420GPLC - Server Board Motherboard Specification

BIOS User Interface

Advanced

PCI Configuration
Maximize Memory below 4GB
Memory Mapped I/O above 4GB
Onboard Video
Dual Monitor Video
Onboard NIC1 ROM
Onboard NIC2 ROM
Onboard NIC iSCSI ROM
NIC 1 MAC Address
NIC 2 MAC Address
Figure 26. Setup Utility – PCI Configuration Screen Display
Setup Item
Maximize Memory
below 4GB
Memory Mapped I/O
above 4GB
Onboard Video
Dual Monitor Video
Onboard NIC1 ROM
Onboard NIC2 ROM
62
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
Enabled/Disabled
<MAC #>
<MAC #>
Table 25. Setup Utility – PCI Configuration Screen Fields
Options
Enabled If enabled. the BIOS maximizes usage of memory
below 4 GB for OS without PAE by limiting PCIE
Disabled
Extended Configuration Space to 64 buses.
Enabled Enable or disable memory mapped I/O of 64-bit
PCI devices to 4 GB or greater address space.
Disabled
Enabled Onboard video controller.
Disabled Warning: System video is completely disabled if
this option is disabled and an add-in video
adapter is not installed.
Enabled If enabled. both the onboard video controller and
an add-in video adapter are enabled for system
Disabled
video. The onboard video controller becomes the
primary video device.
Enabled If enabled. loads the embedded option ROM for
the onboard network controllers.
Disabled
Warning: If [Disabled] is selected, NIC1 cannot
be used to boot or wake the system.
Enabled If enabled. loads the embedded option ROM for
the onboard network controllers.
Disabled
Warning: If [Disabled] is selected, NIC2 cannot
be used to boot or wake the system.
Intel order number E65697-010
Help Text
Intel® Server Board S3420GP TPS
Comments
When disabled, the system
requires an add-in video
card for the video to be
seen.
Note: This option is not
available on some models.
Note: This option does not
appear on some models.
Revision 2.4

