Intel® Server Board S3420GP TPS
Advance
Main

d
Logged in as <Administrator or
Platform ID
System BIOS 
Version
Build Date

Memory
Total Memory
Quiet Boot
POST Error Pause

System Date
System Time

Setup Item
Logged in as
Platform ID
System BIOS
Version
Build Date
Memory
Revision 2.4
Security Server Management
User>
<Platform Identification
SXXXX.86B.xx.yy.zzzz
<MM/DD/YYYY>
<How much memory is
Enabled/Disabled
Enabled/Disabled
<Current
<Current

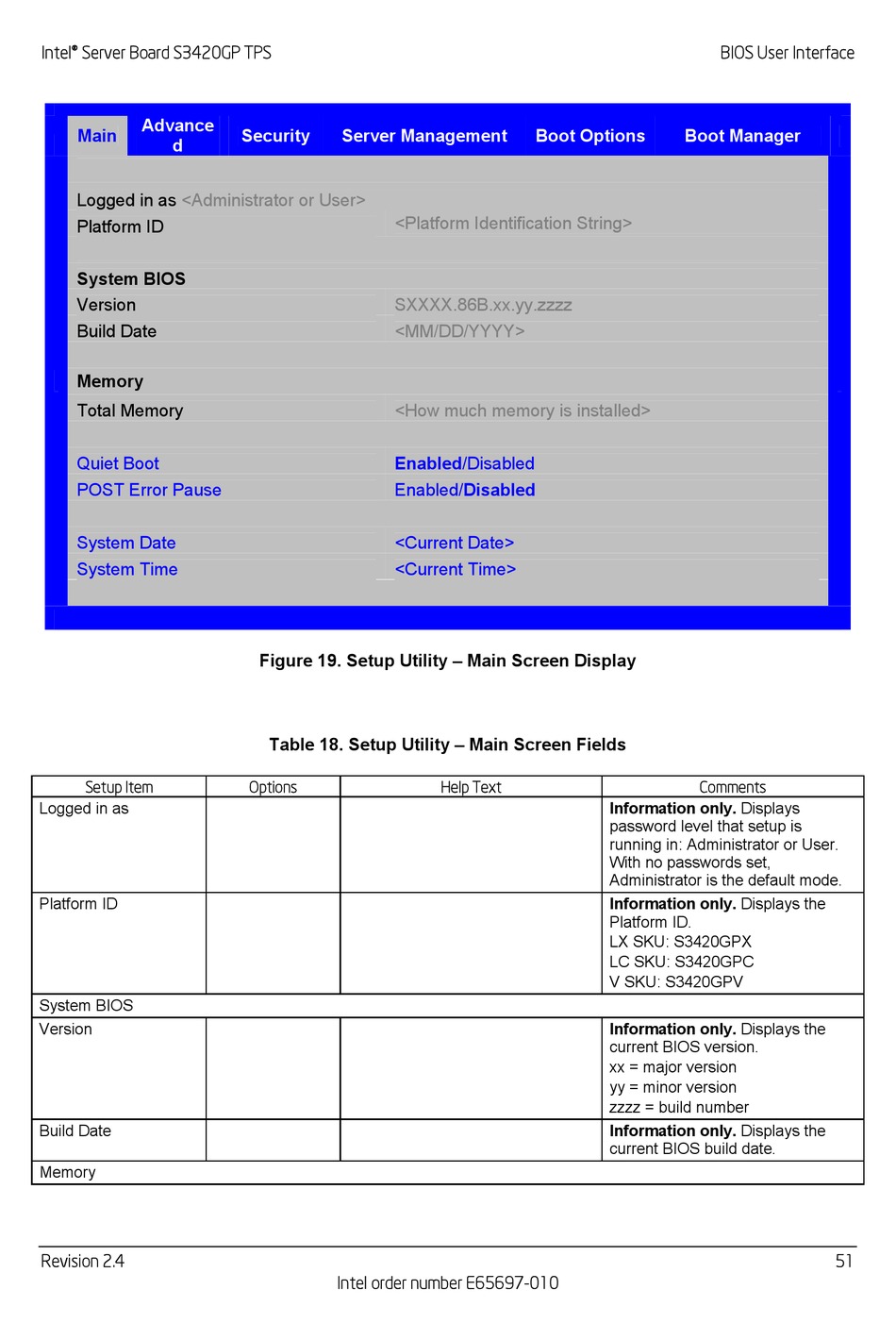

Figure 19. Setup Utility – Main Screen Display
Table 18. Setup Utility – Main Screen Fields
Options
Intel order number E65697-010
Boot Options

String>


installed>

Date>
Time>
Help Text
Information only. Displays
password level that setup is
running in: Administrator or User.
With no passwords set,
Administrator is the default mode.
Information only. Displays the
Platform ID.
LX SKU: S3420GPX
LC SKU: S3420GPC
V SKU: S3420GPV
Information only. Displays the
current BIOS version.
xx = major version
yy = minor version
zzzz = build number
Information only. Displays the
current BIOS build date.
BIOS User Interface

Boot Manager

Comments
51
