Replacing The Power Supply; Figure 32. Removing The Power Supply - Intel SR1325TP1 - Entry Server Platform User Manual

Platform Installations and Upgrades

Replacing the Power Supply

CAUTION
Your server does not have a redundant power supply. Before replacing the
power supply, you must take the server out of service.
1. Before removing the cover to work inside the system, observe the safety guidelines in the
beginning of the book.
2. Unplug the power cord from the power source and the power supply. See letter "A" in Figure
32.
3. Remove the chassis cover.
4. Disconnect the power cables from the server board and the drives. Note the connections you
are removing so you can reconnect them after you install the new power supply.
5. Remove the two screws from the power supply. See letter "B" in the figure below.
6. Slide the power supply slightly forward to disengage it from the tabs that attach it to the bottom
of the chassis. See letter "C" in Figure 32.
7. Lift the power supply out of the chassis.
48

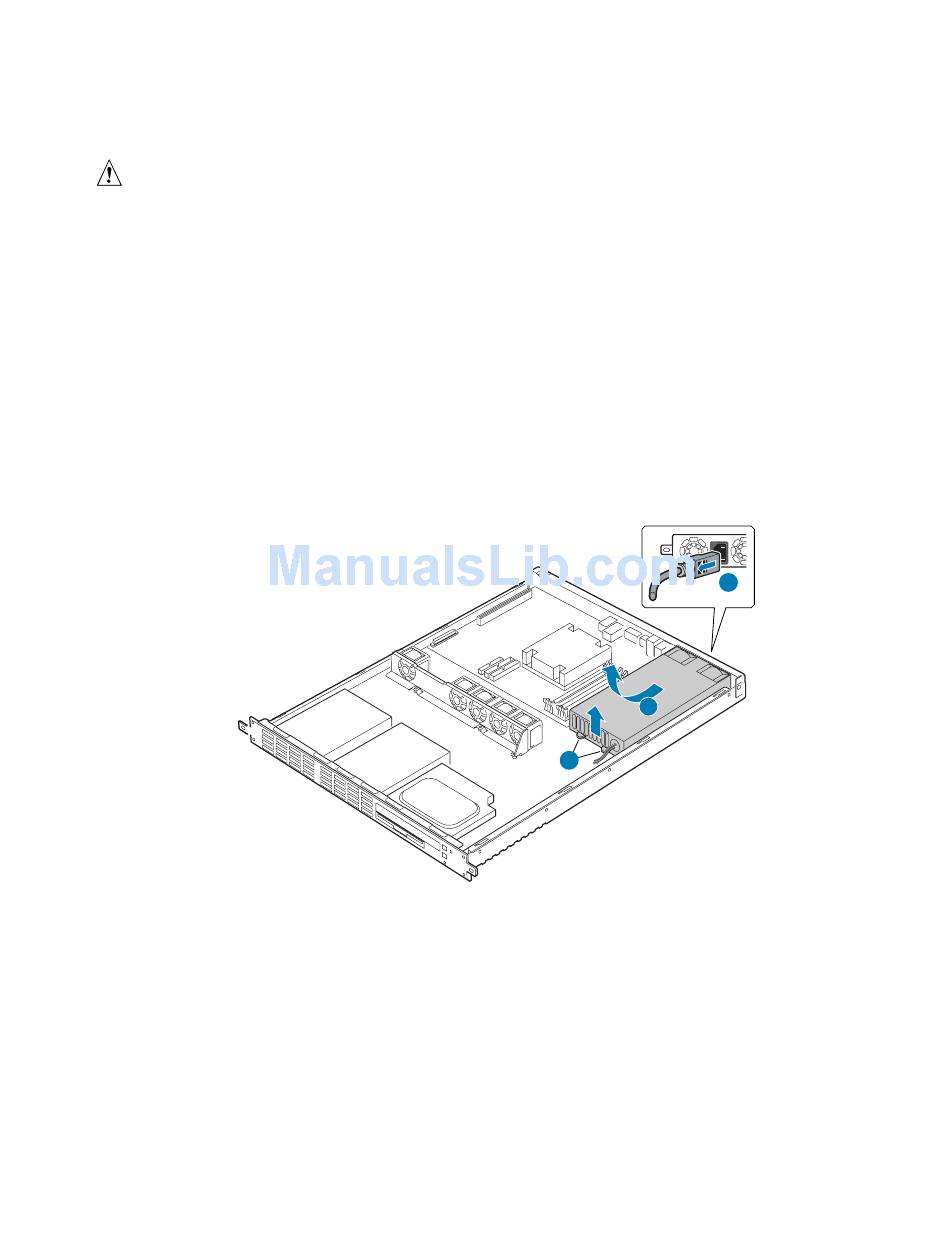

Figure 32. Removing the Power Supply

Intel
C
B
®
Entry Server Platform SR1325TP1-E User Guide
A
TP00587
