Platform Installations and Upgrades
1. Observe the safety and ESD precautions at the beginning of this book.
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Disconnect the AC power cord from the server.
4. Remove the server's cover and locate the battery.
5. Insert the tip of a small flat bladed screwdriver, or an equivalent, under the tab in the plastic
retainer. Gently push down on the screwdriver to lift the battery.
6. Remove the battery from its socket.
7. Dispose of the battery according to local ordinance.
8. Remove the new lithium battery from its package, and, being careful to observe the correct
polarity, insert it in the battery socket.
9. Close the chassis.
10. Run Setup to restore the configuration settings to the RTC.

Installing or Replacing the Power Cord

NOTE
If you will be placing your server in a rack, wait to install the power cord
until after the server is in the rack.
Plug the power cord into the power supply.
54

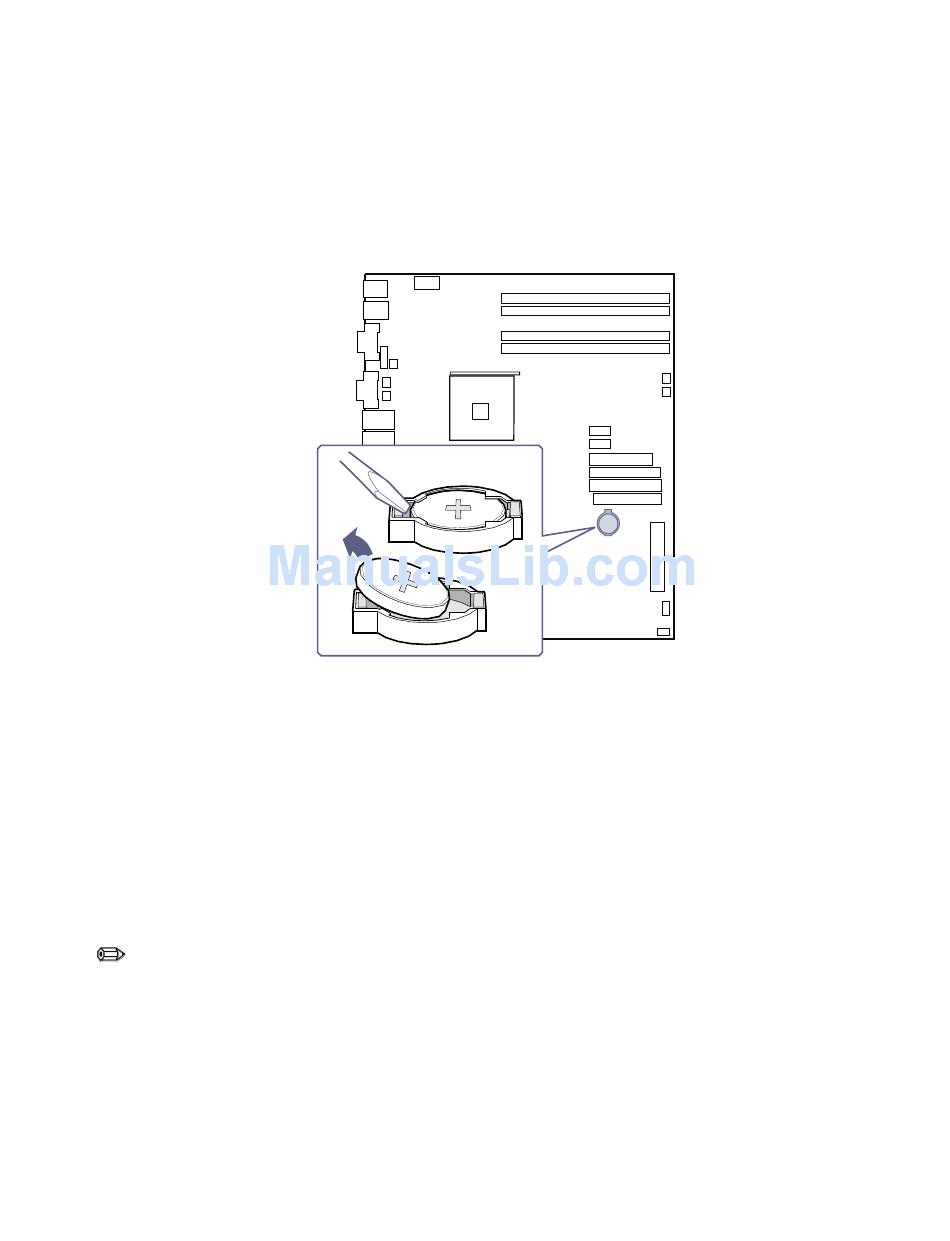

Figure 37. Replacing the Battery

®
Intel Entry Server Platform SR1325TP1-E User Guide
TP00511
