Platform Installations and Upgrades

Removing and Installing the Chassis Cover

Removing the Chassis Cover

NOTE
A nonskid surface or a stop behind the chassis may be needed to prevent the
chassis from sliding on your work surface.
1. Remove the two acess screws from the top cover.
2. Slide the top cover back until it stops.
3. Lift the cover straight up to remove it from the chassis.
26

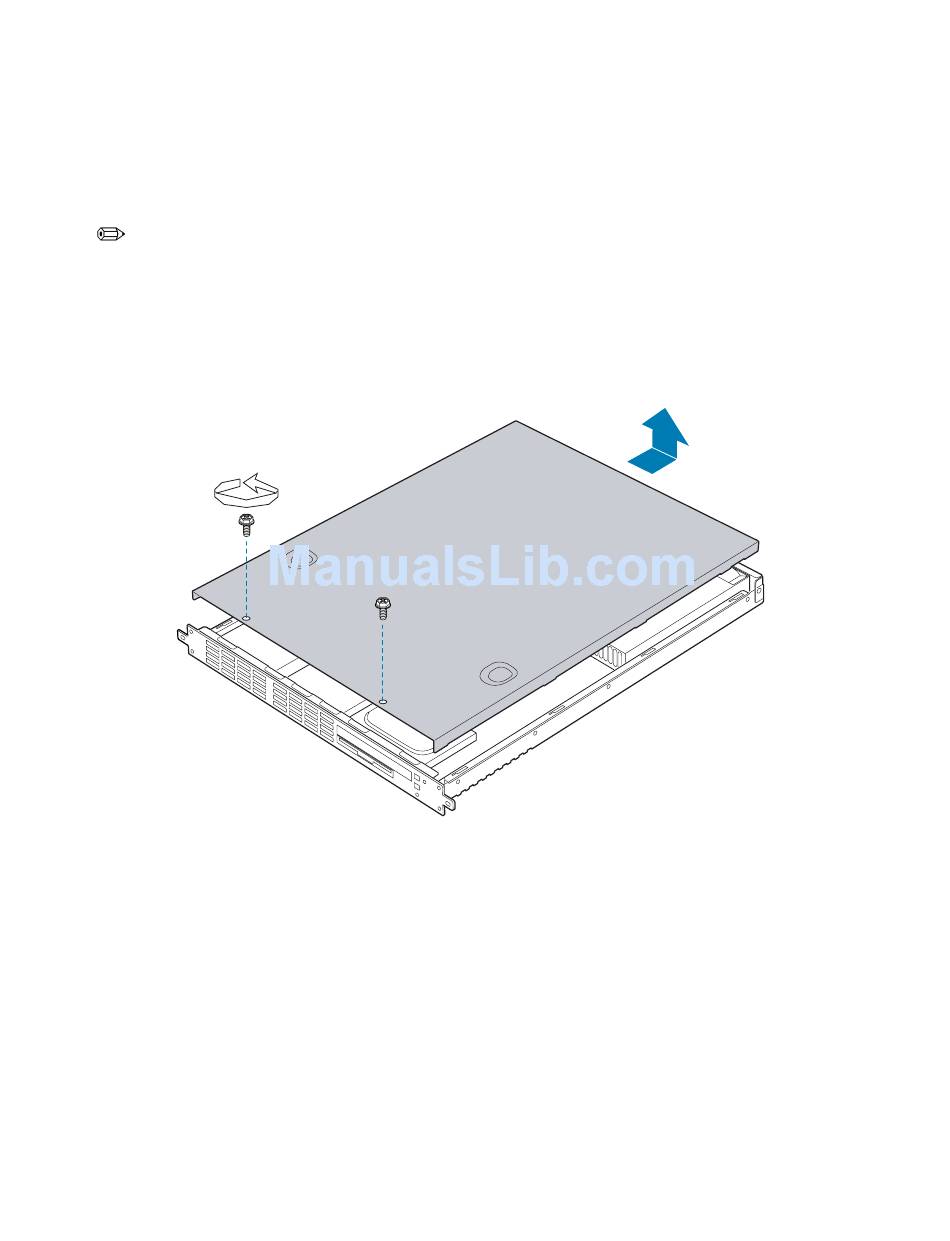

Figure 8. Removing the Cover

®
Intel Entry Server Platform SR1325TP1-E User Guide
TP00580
