Platform Installations and Upgrades

NOTE

The bottom of the heat sink may have thermal interface material (TIM)

already applied. Be careful not to damage the thermal interface material.

5. If there is no thermal interface material on the bottom of the heat sink, use the enclosed syringe

and apply the thermal interface material to the top of the processor.

6. Place the fan heat sink on top of the processor. See Figure 15.

7. Fully open the levers at the top of the heat sink, as shown by letter "A" in Figure 16.

8. With the levers in their fully opened position, push down firmly to secure the retention

mechanism clips, represented by letter "B" in Figure 16.

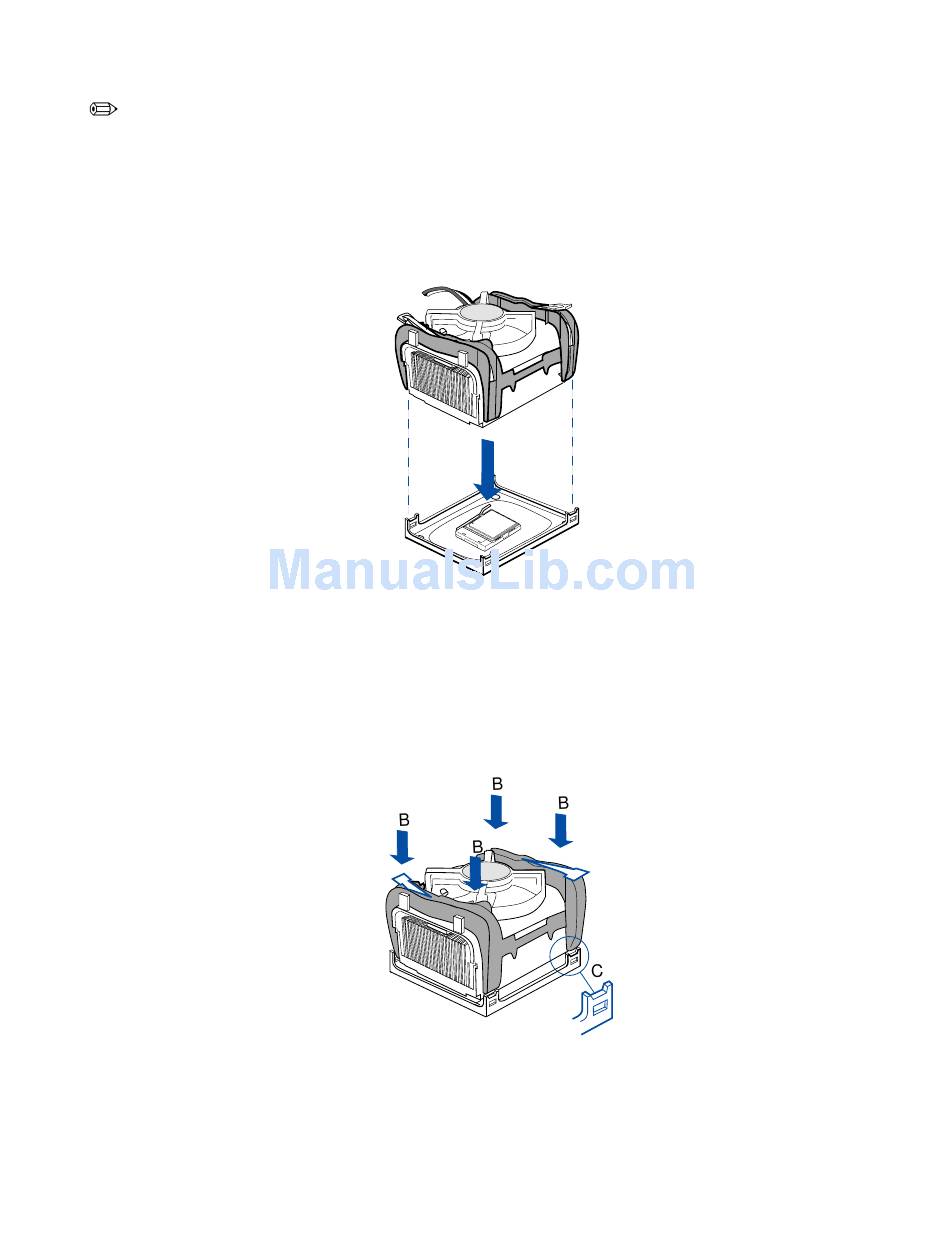

Figure 15. Attaching the Heat Sink to the Processor

TP00520

TP00521
