Platform Installations and Upgrades
8. Set the replacement power supply onto the chassis floor.
9. Connect the power connector at the rear of the power supply. See letter "C" in Figure 33.
10. Slide the power supply toward the rear of the chassis to engage the tab. See letter "B" in Figure
33.
11. Replace the two screws at the front of the power supply. See letter "A" in Figure 33.
12. Connect the power cables to the server board and the drives.
13. Replace the chassis cover.
14. Plug the power cord back into the power supply and the power source.
C
A
B
TP00618

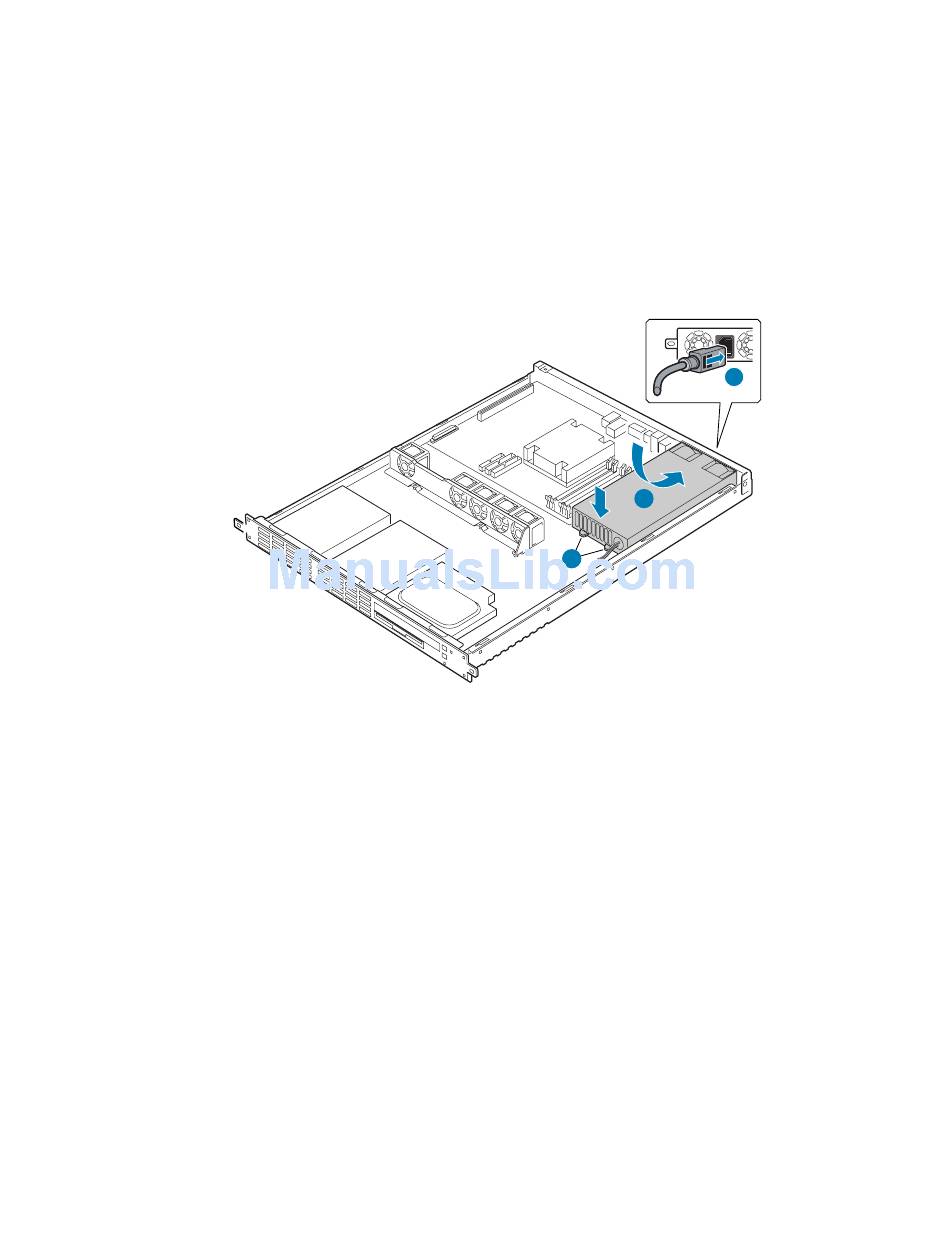

Figure 33. Installing the Power Supply

49
