Server Platform Features

Server Chassis Front Panel

NOTE
The figure above is shown with optional floppy drive and CD-ROM drive installed.
Table 4. Control Button Functions
Power/Sleep button
Reset button
Table 5. LED Indicator Status
NIC 1 activity LED
NIC 2 activity LED
Power/Sleep LED
Hard disk drive
status LED
System Fault LED
Notes:
The amber status takes precedence over the green status. When the amber LED is on or blinking, the green LED is off.
1 The power LED sleep indication is maintained on standby by the chipset. If the system is powered down without
going through BIOS, the LED state in effect at the time of power off will be restored when the system is powered on
until the BIOS clears it. If the system is not powered down normally, it is possible that the power LED will be blinking
at the same time that the system status LED is off due to a failure or configuration change that prevents the BIOS
from running.
2 In order for a hard disk fault indication to occur, an Intelligent Platform Management Interface (IPMI)–based satellite
management controller must send a Set Fault Indication command to the mini Baseboard Management Controller
(mBMC).
3 Off when the system is powered off or in a sleep state.
20
A.
Power button and power LED
B.
Network activity LEDs (NIC1 top, NIC2 bottom)
C.
System fault LED
D.
Hard drive activity LED
E.
Reset button

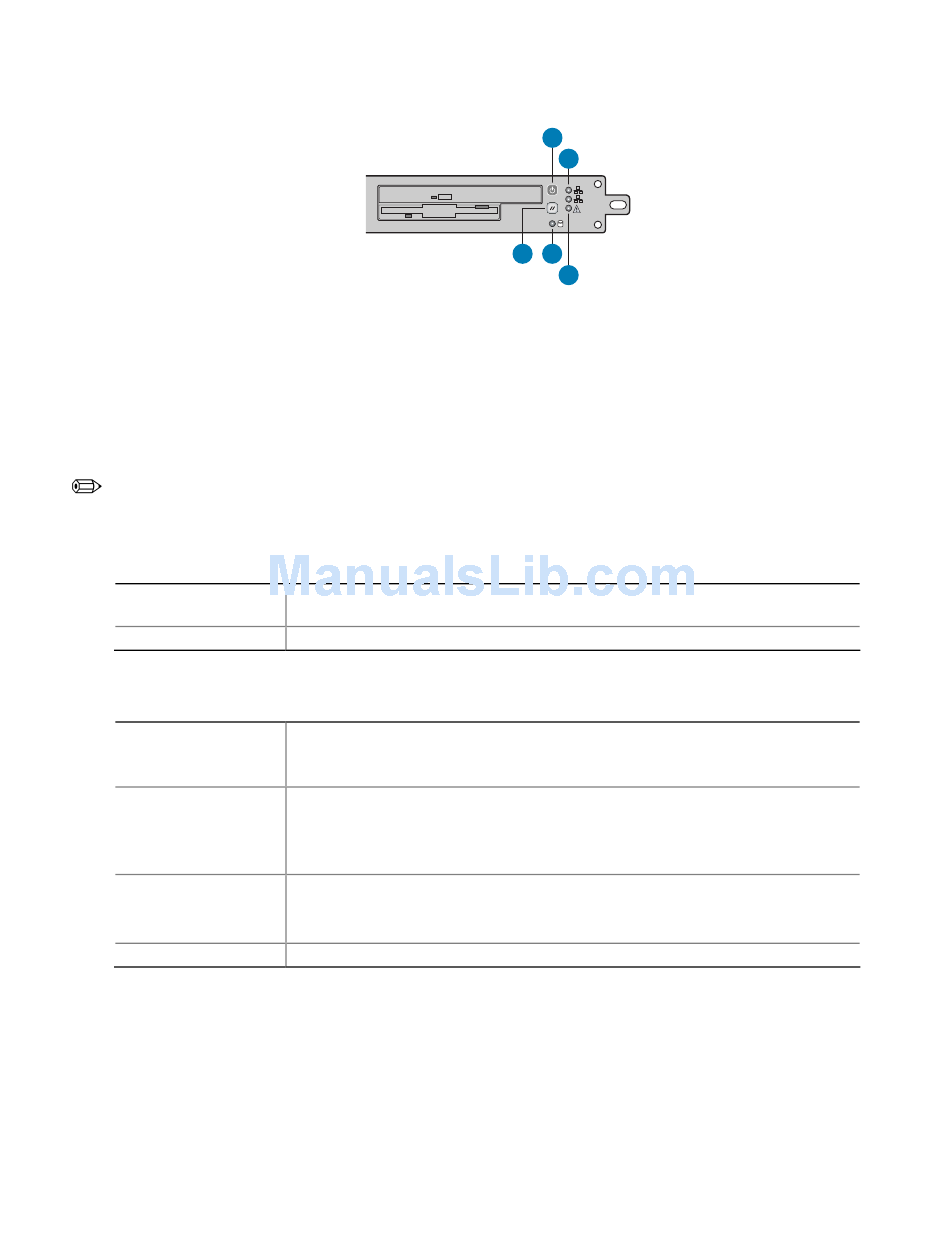

Figure 5. Chassis Front

Toggles the system power on/off. Sleep button for ACPI-compatible operating
systems.
Reboots and initializes the system.
Continuous green light indicates a link between the system and the network to
which it is connected.
Blinking green light indicates network activity.
Continuous green light indicates the system has power applied to it.
Blinking green light (Note 1) indicates the system is sleeping.
No light indicates the system does not have power applied to it (other than 5 V
standby power).
Random blinking green light indicates hard disk drive activity (SCSI or IDE).
Continuous amber light (Note 2) indicates hard disk drive fault (SCSI or IDE).
No light (Note 3) indicates no hard disk drive activity nor fault (SCSI or IDE).
LED illuminates if a system fault is detected.
A
B
1
2
E D
C
TP00576
®
