Platform Installations and Upgrades
8. Install the replacement fan module into the chassis using the three screws that held the original
fan module in place.
9. Reattach the chassis intrusion cable.
10. Reconnect the cable from each fan at the appropriate location on the server board. Fans are
routed as shown in the figure below.

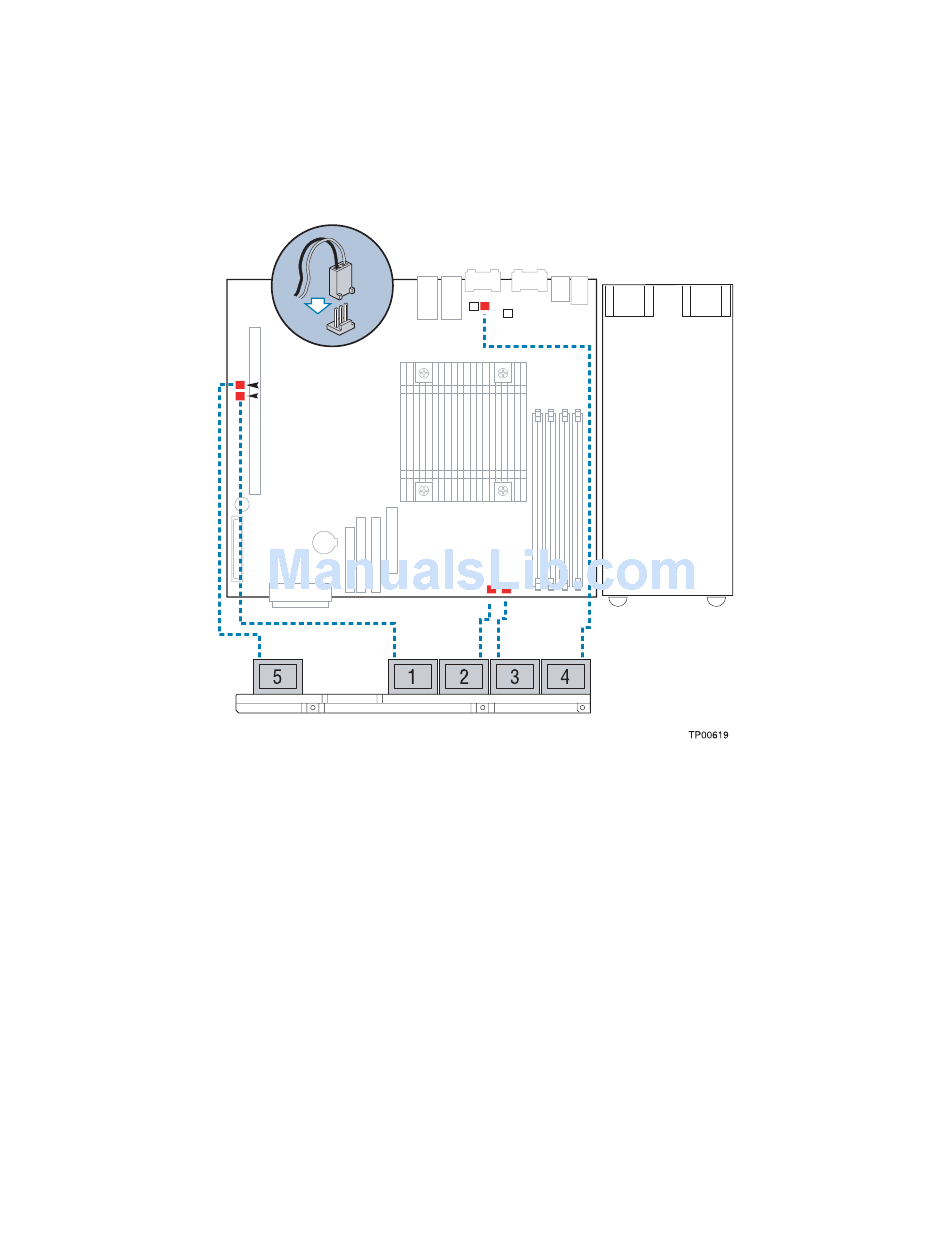

Figure 35. Routing the Front Fan Cables
51
