Removing Drive Cage from Chassis

1. Before removing the cover to work inside the system, observe the safety guidelines at the
beginning of this document.
2. Remove the top cover from the chassis.
3. Remove the power and data cables from the rear of the floppy drive / CD-ROM / DVD-ROM
drive backplane.
4. Remove the two screws that attach the drive cage to the chassis.
5. Tilt up the rear of the drive cage, then pull it back to lift it up and out of the chassis. See Figure
22.

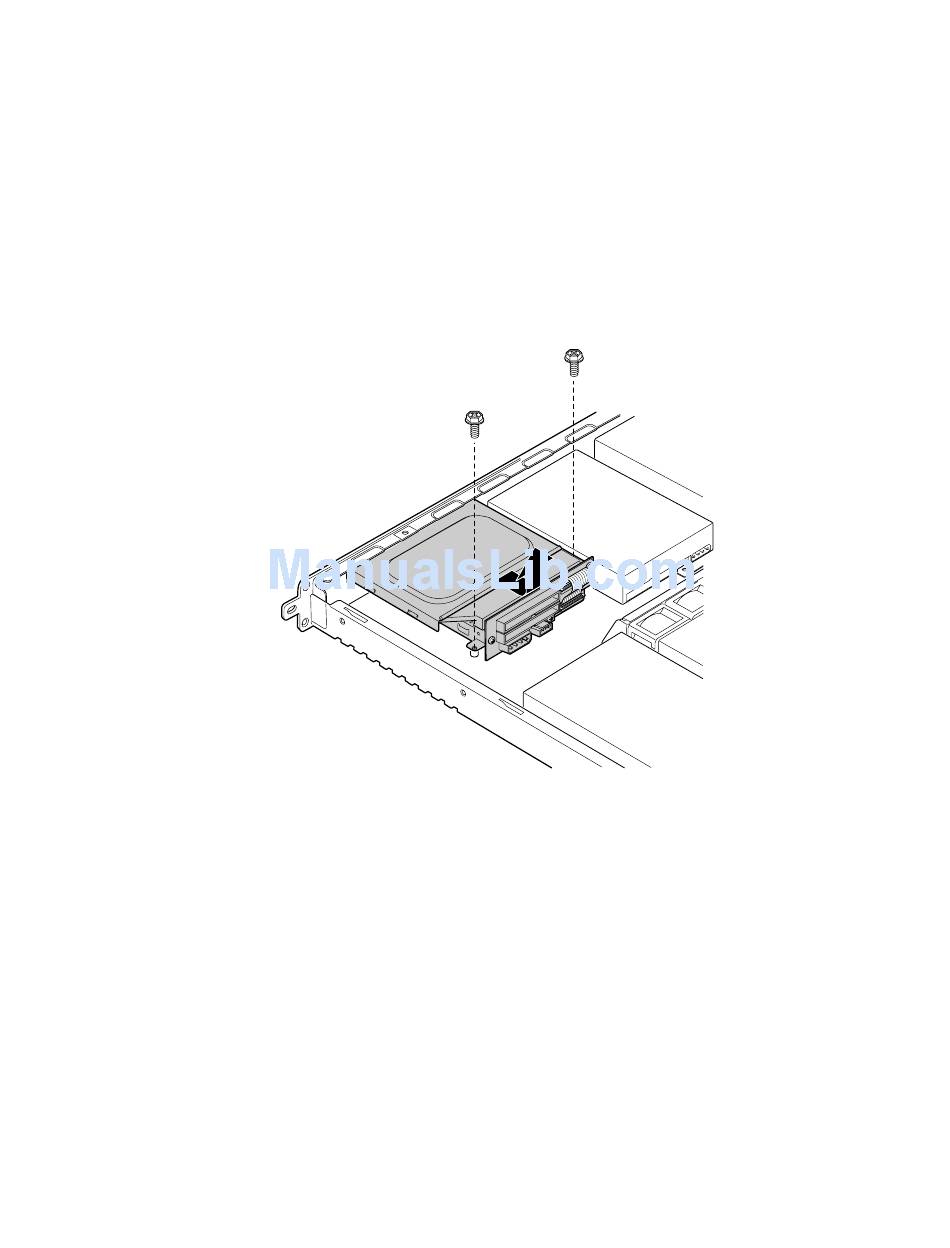

Figure 22. Removing Drive Cage

TP00292
