Platform Installations and Upgrades
9. Firmly push the levers closed. It may be necessary to exert pressure to close the levers. See
Figure 17.

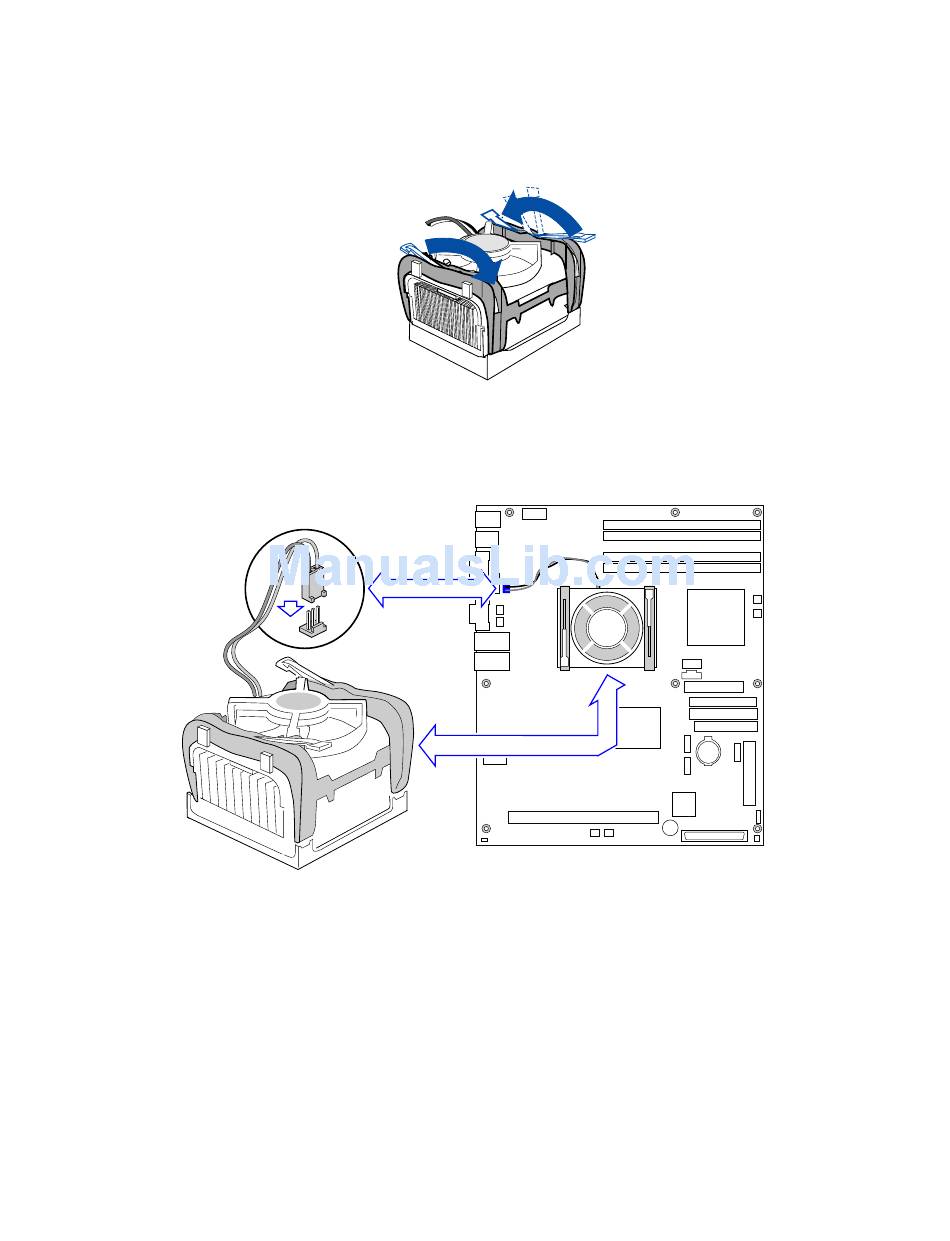

Figure 17. Attaching the Fan Heat Sink Clips to the Processor Socket

10. Connect the processor fan cable to the processor fan connector. See Figure 18.

Figure 18. Connecting the Processor Fan Cable to the Processor Fan Connector

11. Install the processor air duct. The air duct must be in place for proper system cooling. For
instructions on installing the processor air duct, see
34
TP00522
"Installing the Processor Air
®
Intel Entry Server Platform SR1325TP1-E User Guide
TP00523
Duct."
