CAN Port

The conga-HPC/3.5-Mini provides the module's CAN bus signals via a transceiver (Microchip Inc. MCP2562FD) on header X16. The CAN bus
does not have resistor termination.
For CAN bus termination, use a cable adapter with internal resistor termination.

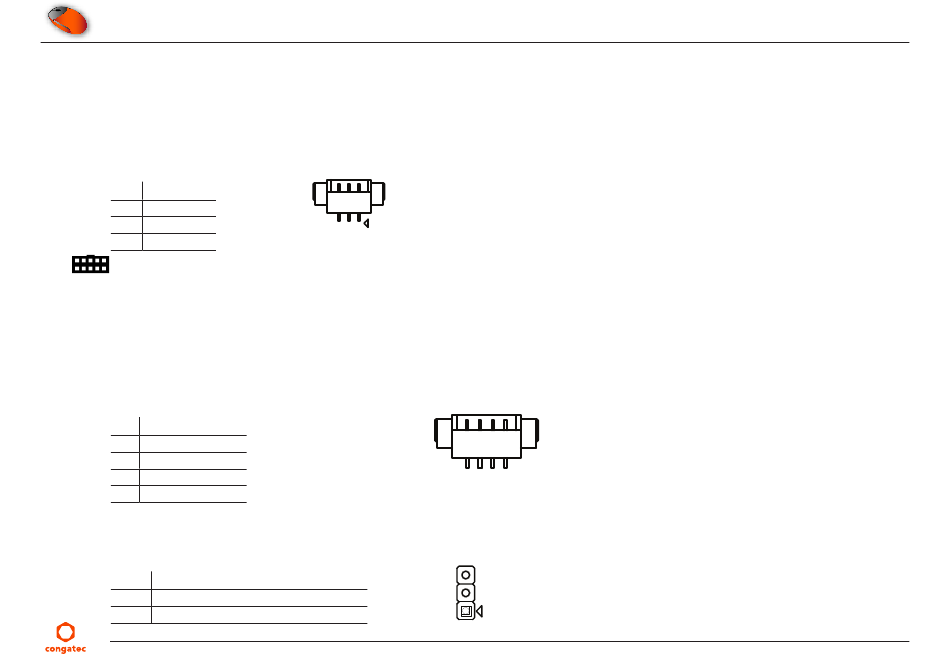

Table 24 X16 - CAN Pinout
Pin Signals
1 CAN_H
2 CAN_L
3 GND
Connector Type
X16: 1.25 mm pitch, 3x1-pin (Molex 53261-0371); Possible Mating Connector: Molex 51021-0300
4.19

System Fan Header

The conga-HPC/3.5-Mini provides a 4-pin fan connector (X50) for a system fan.
Table 25 X50 - System Fan Header Pinout
Pin Signal
1 GND
2 +VDD (12V/5V)
3 Sense
4 Control
Use jumper X49 to set the fan's supply voltage level.
Table 26 X49 - System Fan Voltage Control
Pin Configuration
1-2 12 V supply voltage (default)
2-3 5 V supply voltage
