GRAPHS PAGE

In this section you can visualize the real time parameters trends.
From a PARAMETERS drop-down menu, you can choose the parameters to display on the interface.
You can graph from a minimum of one to a maximum of three parameters at the same time in the
page.
The graphs of follow parameters are available:
-
-
-
-
-
-

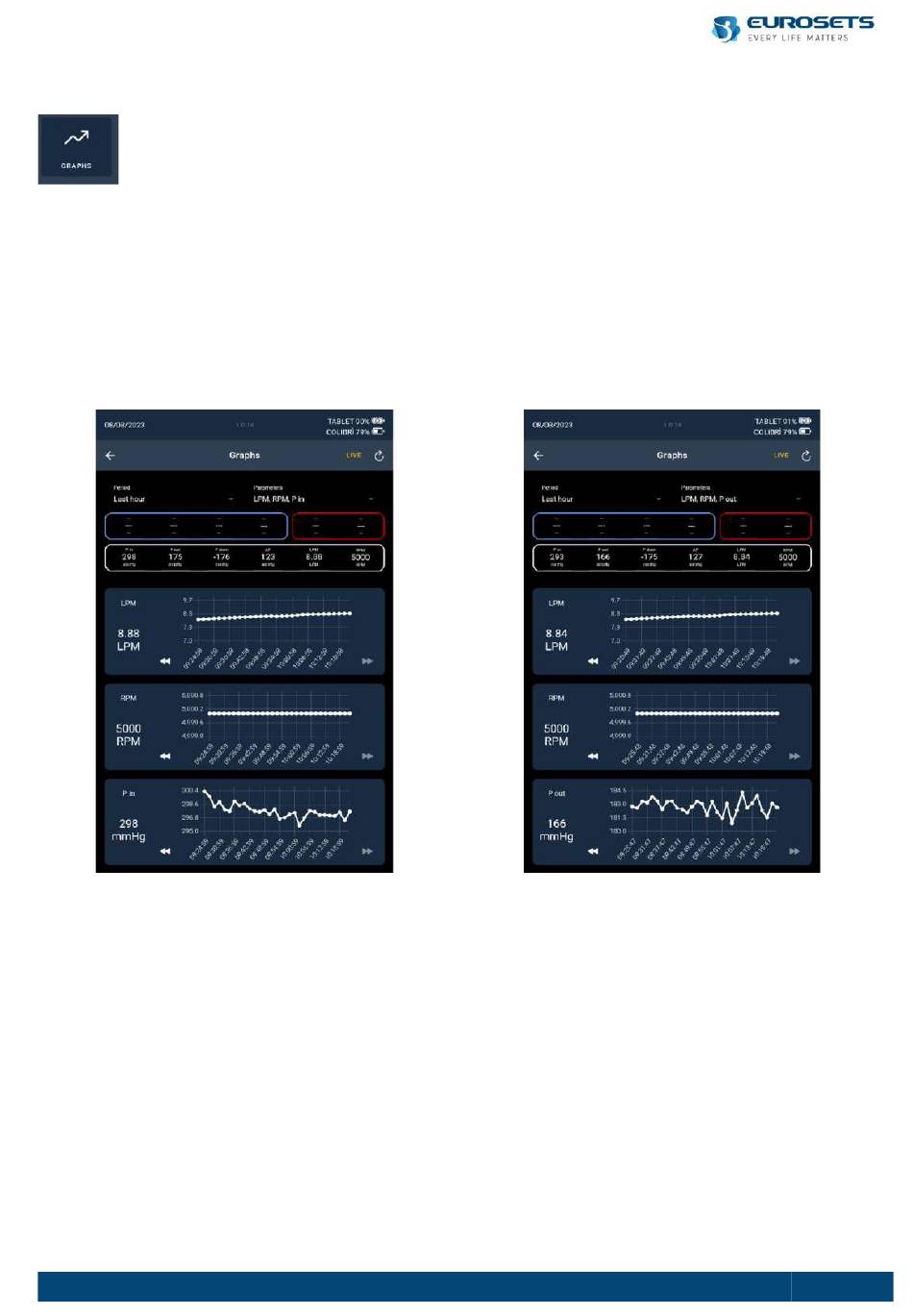

Parameters' graphs will be shown as follow:
en
Blood Flow (LPM)
Pump Speed (RPM)
Drainage pressure sensor (PDrain),
Pre-oxygenator pressure (Pin)
Post-oxygenator pressure (Pout),
Pressure drop (ΔP)
