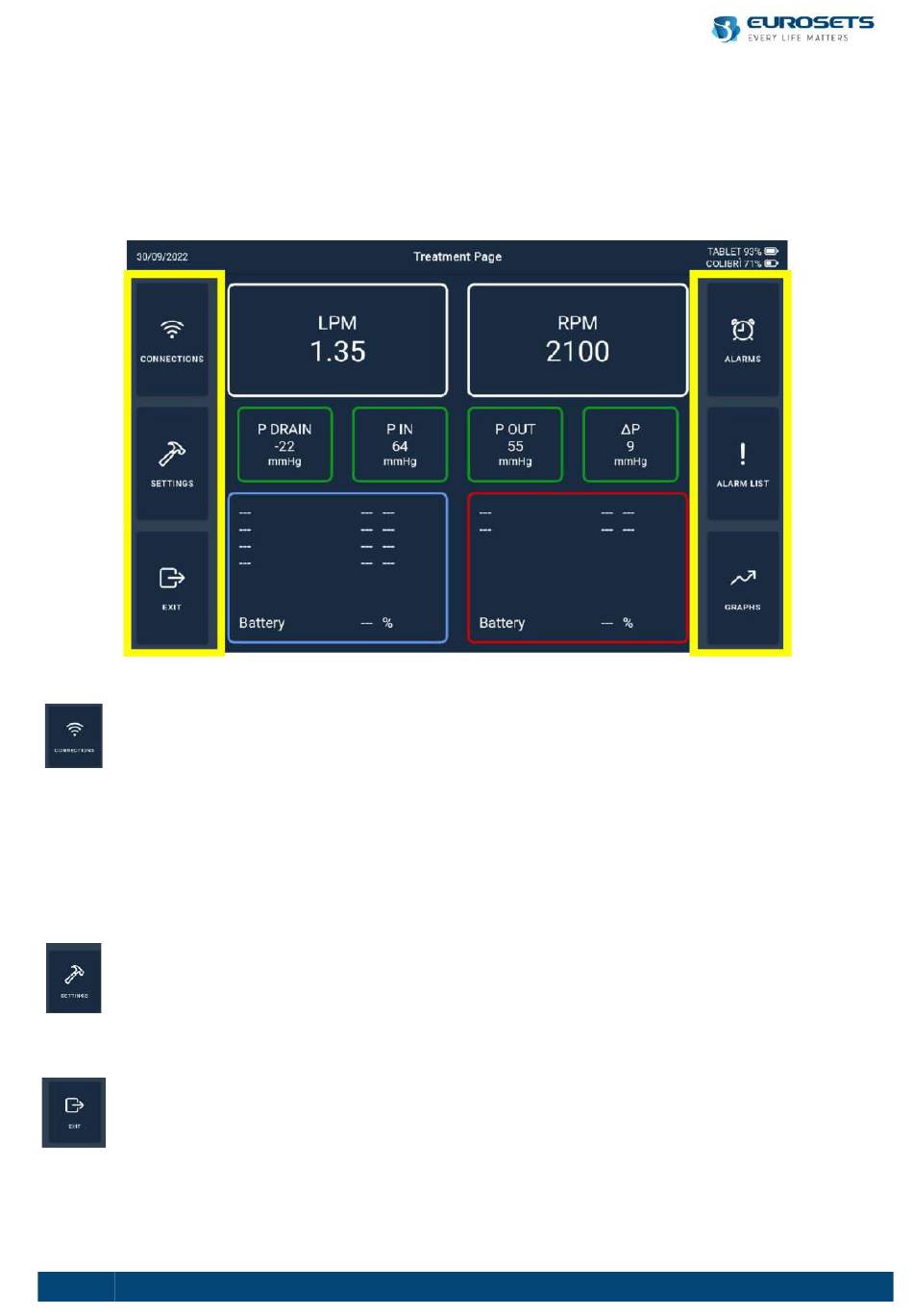

In the two side bars of the screen, the toolbar collects the main features provided by the APP:
- Graphs
- Connections
- Settings (not available)
- Exit
- Alarms (not available)
- Alarms list (not available),

CONNECTION PAGE

In the Connection screen you can visualize client devices connected to the network. For each of
them, the following information are reported:
- The serial number
- The probe model (in case of accessories probe such as arterial/venous probe)
- The probe software version of Colibrì System
A colored badge allows to visualize the status of the connection:
- Green: the sensor is connected and works correctly
- Red: the sensor is not connected
- Yellow: the sensor is connected but the medical hand -portable display does not receive any
data because another sensor of the same type is connected

SETTINGS PAGE

In the Settings screen you can visualize:
- The list of clients ID connected to the network with the respective IP address.
- IP Address of the Hand-portable display device.
- Identification of the port connection.
EXIT
By pressing EXIT button you can close the application.
A confirmation message is shown.
