Around The Left Side Of The System - NEC VERSA 6200MX User Manual

T
Monitor (Video) Port — Use this 15-pin port to attach an external
monitor to your NEC Versa. You can run the LCD display and the ex-
ternal monitor simultaneously or run either alone.
T
Serial Port — Use this port to connect an external modem or other serial
device.

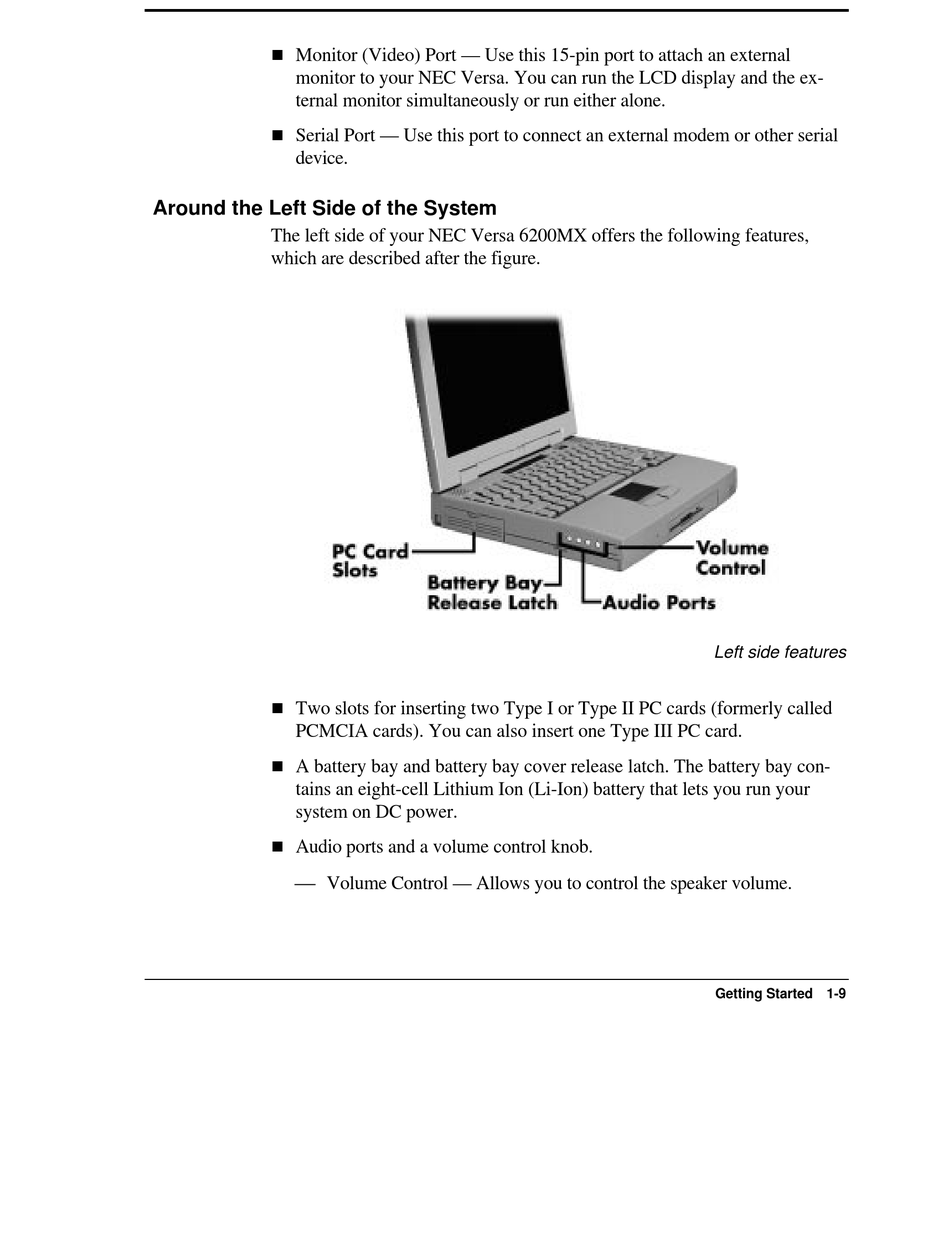

Around the Left Side of the System

The left side of your NEC Versa 6200MX offers the following features,
which are described after the figure.
T
Two slots for inserting two Type I or Type II PC cards (formerly called
PCMCIA cards). You can also insert one Type III PC card.
T
A battery bay and battery bay cover release latch. The battery bay con-
tains an eight-cell Lithium Ion (Li-Ion) battery that lets you run your
system on DC power.
T
Audio ports and a volume control knob.
Volume Control — Allows you to control the speaker volume.
Left side features
Getting Started 1-9
