Around the Front of the System

The NEC Versa 6200MX is compact with features on every side. First, look
at the front of the NEC Versa 6200MX. The following sections describe
front features, beginning with the liquid crystal display (LCD) panel.

LCD Panel

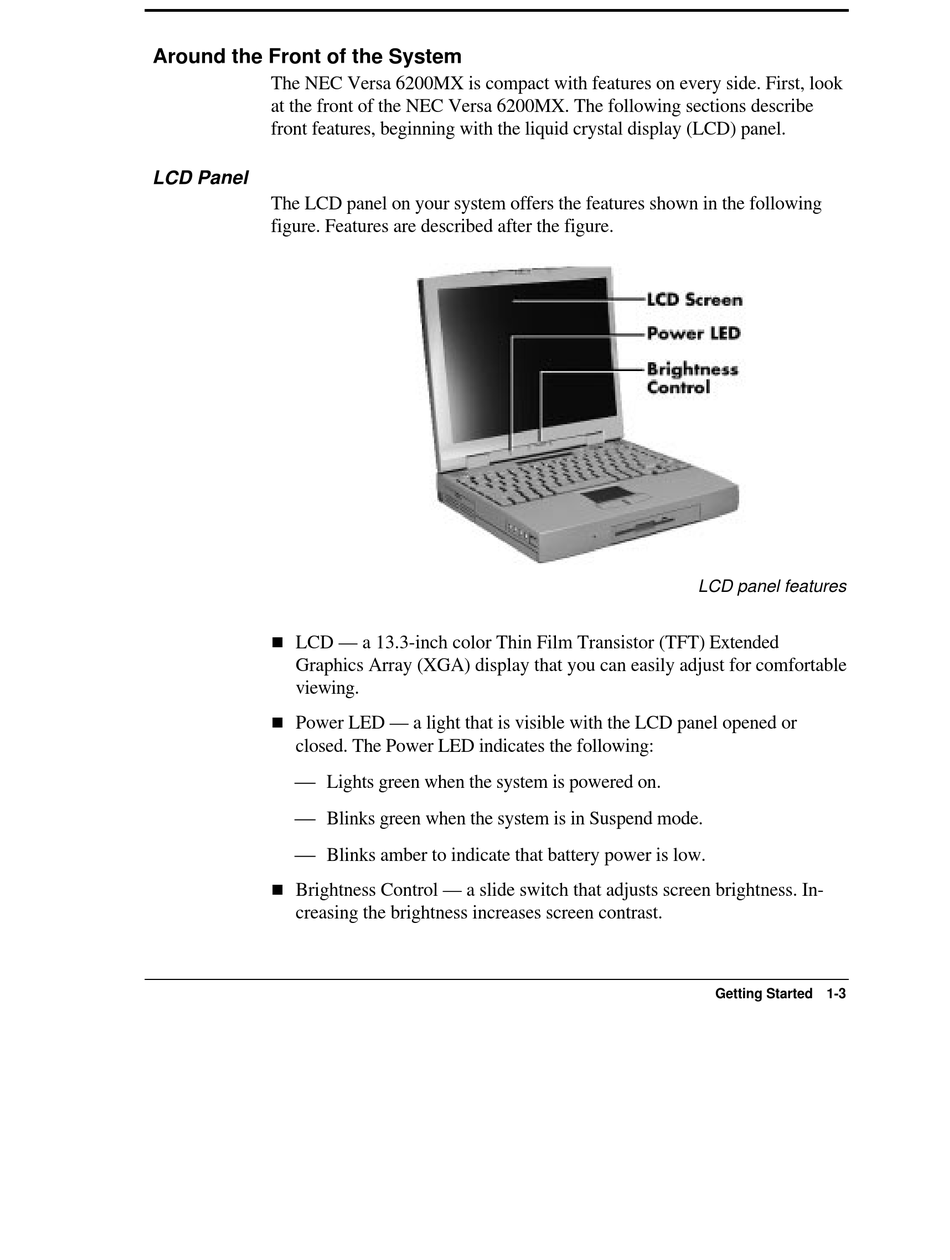

The LCD panel on your system offers the features shown in the following
figure. Features are described after the figure.
T
LCD — a 13.3-inch color Thin Film Transistor (TFT) Extended
Graphics Array (XGA) display that you can easily adjust for comfortable
viewing.
T
Power LED — a light that is visible with the LCD panel opened or
closed. The Power LED indicates the following:
Lights green when the system is powered on.
Blinks green when the system is in Suspend mode.
Blinks amber to indicate that battery power is low.
T
Brightness Control — a slide switch that adjusts screen brightness. In-
creasing the brightness increases screen contrast.
LCD panel features
Getting Started 1-3
