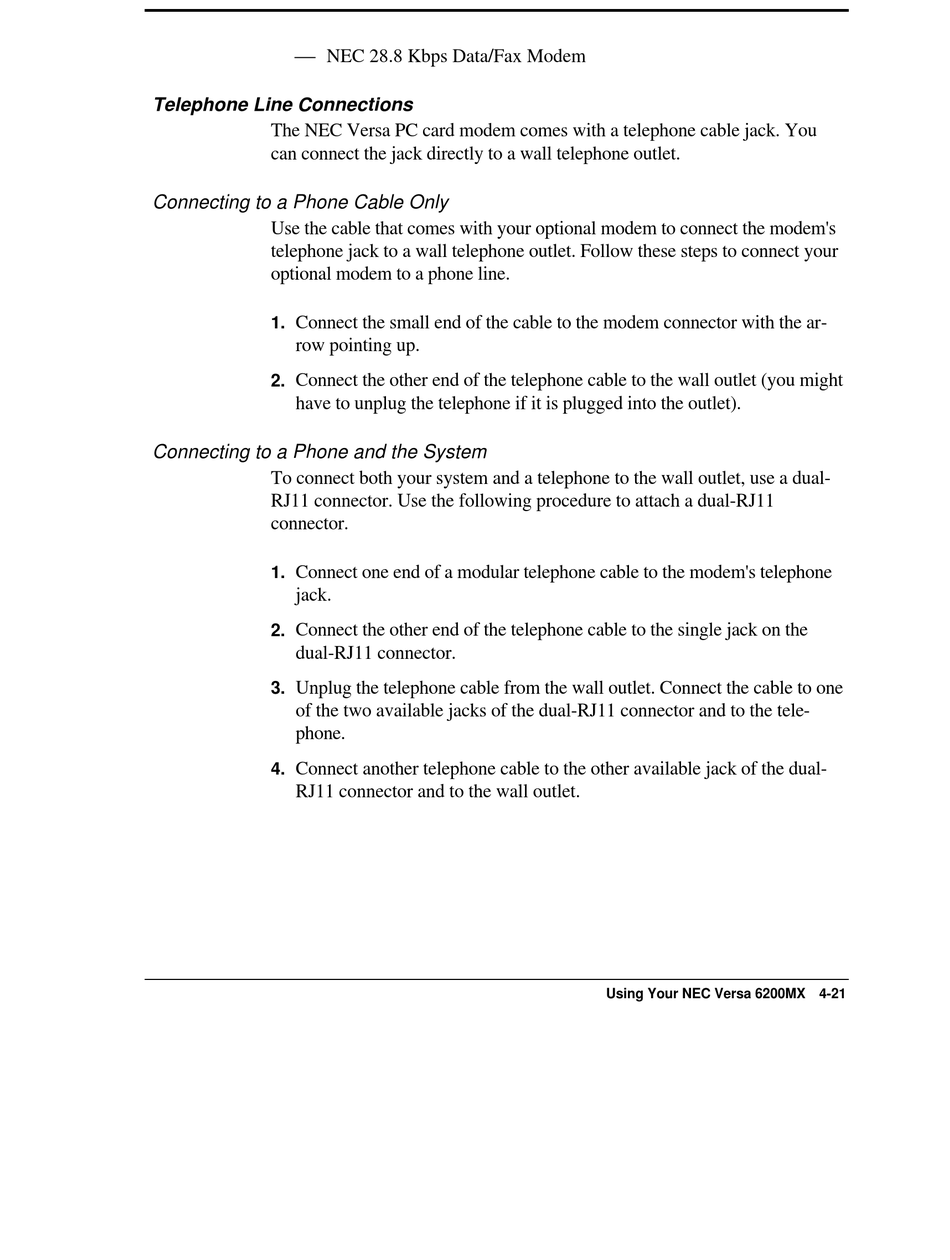

NEC 28.8 Kbps Data/Fax Modem

Telephone Line Connections

The NEC Versa PC card modem comes with a telephone cable jack. You
can connect the jack directly to a wall telephone outlet.
Connecting to a Phone Cable Only
Use the cable that comes with your optional modem to connect the modem's
telephone jack to a wall telephone outlet. Follow these steps to connect your
optional modem to a phone line.
1. Connect the small end of the cable to the modem connector with the ar-
row pointing up.
2. Connect the other end of the telephone cable to the wall outlet (you might
have to unplug the telephone if it is plugged into the outlet).
Connecting to a Phone and the System
To connect both your system and a telephone to the wall outlet, use a dual-
RJ11 connector. Use the following procedure to attach a dual-RJ11
connector.
1. Connect one end of a modular telephone cable to the modem's telephone
jack.
2. Connect the other end of the telephone cable to the single jack on the
dual-RJ11 connector.
3. Unplug the telephone cable from the wall outlet. Connect the cable to one
of the two available jacks of the dual-RJ11 connector and to the tele-
phone.
Connect another telephone cable to the other available jack of the dual-
4.
RJ11 connector and to the wall outlet.
Using Your NEC Versa 6200MX 4-21
