5-6
System Unit Repair
4.
Remove the 3 1/2-inch drive bracket screw (see Figure Section 5-10).
Screw
Tab
Remove the four 3 1/2-inch diskette drive screws; two on each side of the drive
5.
bracket (see Figure Section 5-12).
Remove the two 3 1/2-inch hard disk drive screws; two on each side of the drive
bracket (see Figure Section 5-12).
Pull the drives out from the front of the bracket.
6.
Diskette Drive
Screws
Hard Disk
Drive Screws

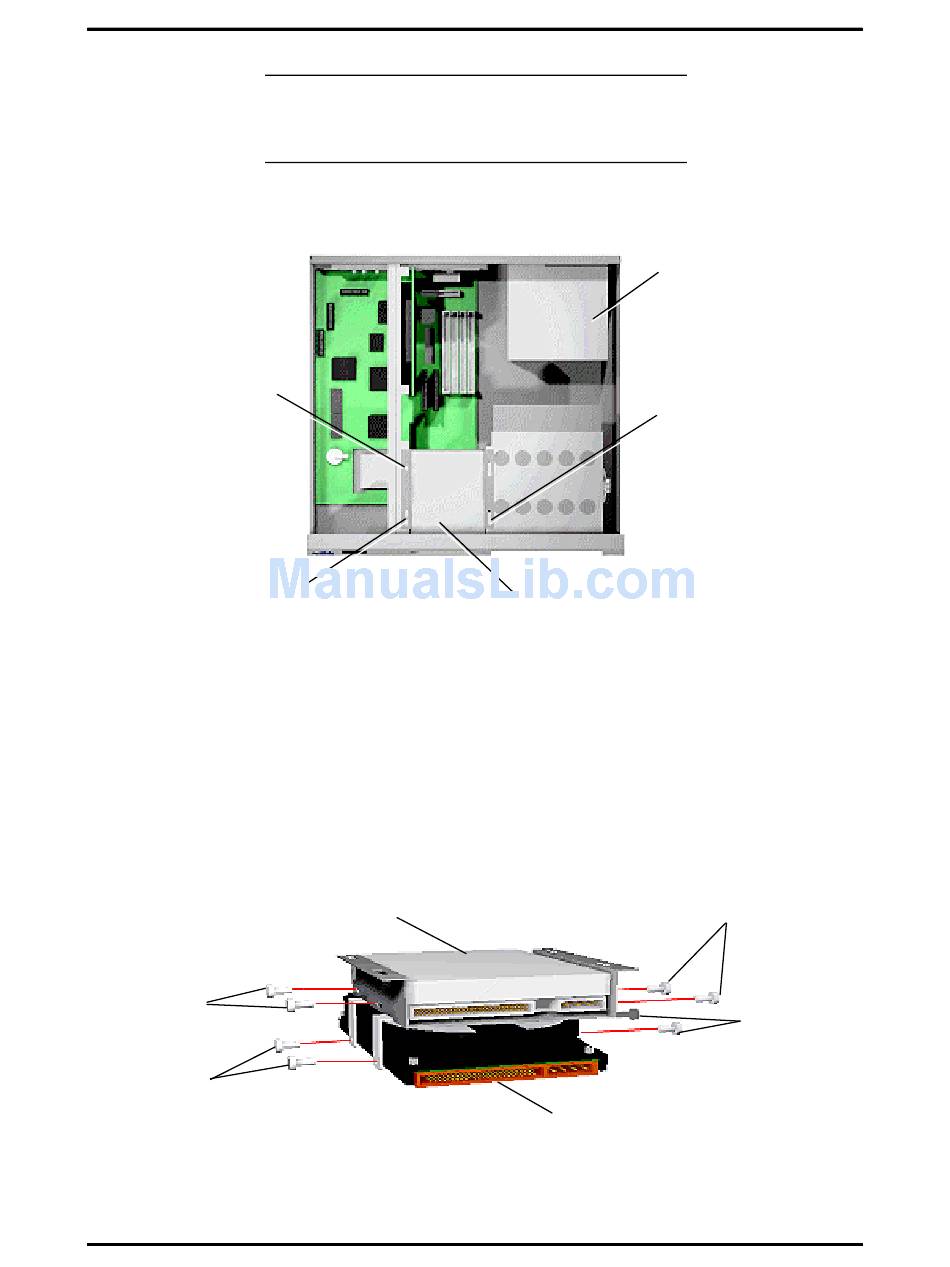

Figure Section 5-12 3 1/2-Inch Diskette and Hard Disk Drive Screws
NOTE: When reinstalling the drives, note that
all power cables are keyed to fit only in the cor-
rect position.
Figure Section 5-10 3 1/2-Inch Drive Bracket
Diskette Drive
Power
Supply
Tabs
3 1/2-Inch
Drive Bracket
Hard Disk Drive
Diskette Drive
Screws
Hard Disk
Drive Screws
