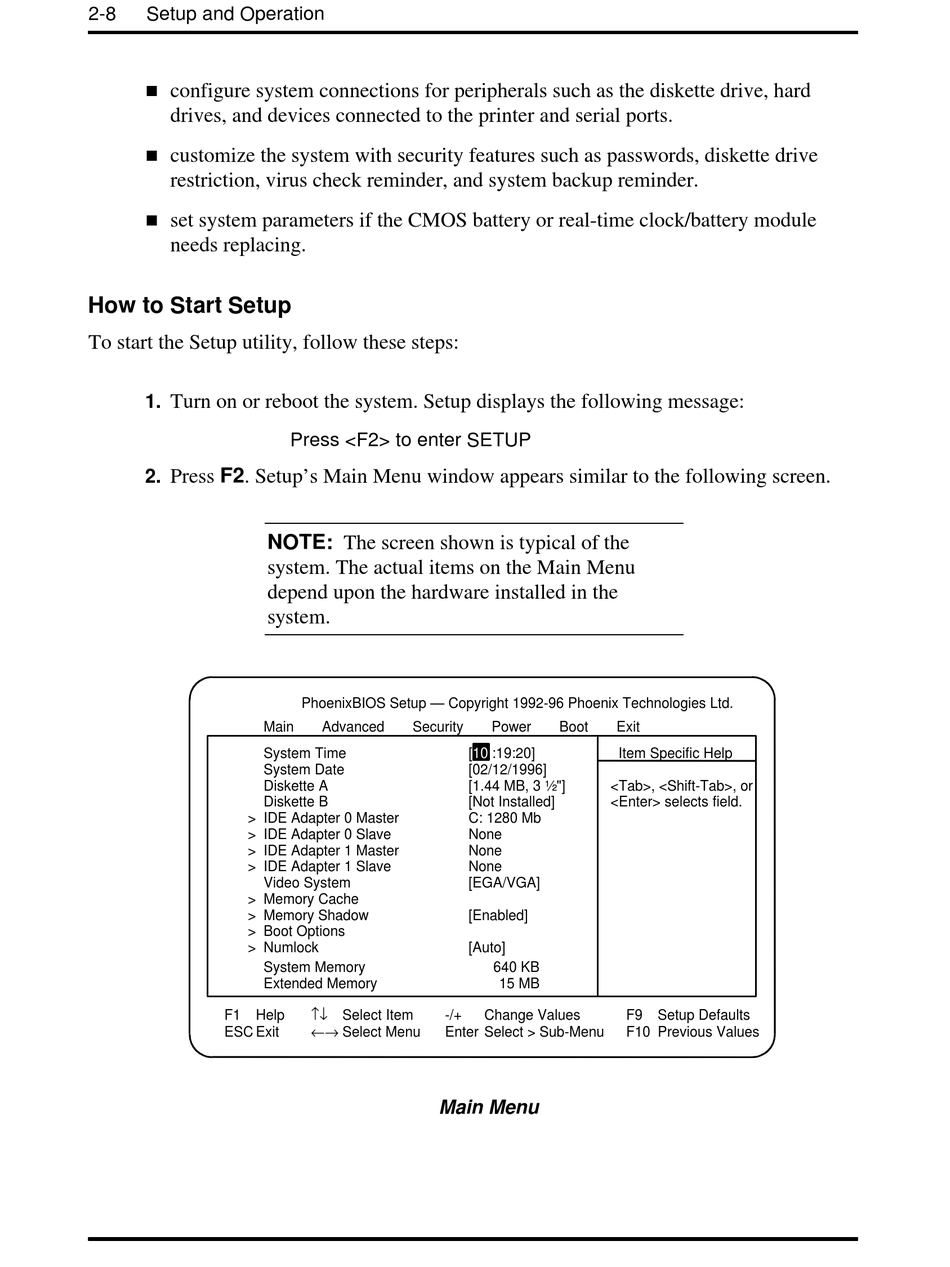

2-8 Setup and Operation
n
configure system connections for peripherals such as the diskette drive, hard
drives, and devices connected to the printer and serial ports.
n
customize the system with security features such as passwords, diskette drive
restriction, virus check reminder, and system backup reminder.
n
set system parameters if the CMOS battery or real-time clock/battery module
needs replacing.

How to Start Setup

To start the Setup utility, follow these steps:
1. Turn on or reboot the system. Setup displays the following message:
Press F2. Setup's Main Menu window appears similar to the following screen.
2.
Main
System Time
System Date
Diskette A
Diskette B
> IDE Adapter 0 Master
> IDE Adapter 0 Slave
> IDE Adapter 1 Master
> IDE Adapter 1 Slave
Video System
> Memory Cache
> Memory Shadow
> Boot Options
> Numlock
System Memory
Extended Memory
F1 Help
ESC Exit
Press <F2> to enter SETUP
NOTE: The screen shown is typical of the
system. The actual items on the Main Menu
depend upon the hardware installed in the
system.
PhoenixBIOS Setup — Copyright 1992-96 Phoenix Technologies Ltd.
Advanced Security
Select Item -/+
Select Menu Enter Select > Sub-Menu
Main Menu
Power Boot Exit
[10 :19:20] Item Specific Help
[02/12/1996]
[1.44 MB, 3 ½"] <Tab>, <Shift-Tab>, or
[Not Installed] <Enter> selects field.
C: 1280 Mb
None
None
None
[EGA/VGA]
[Enabled]
[Auto]
640 KB
15 MB
Change Values F9
F10 Previous Values
Setup Defaults
