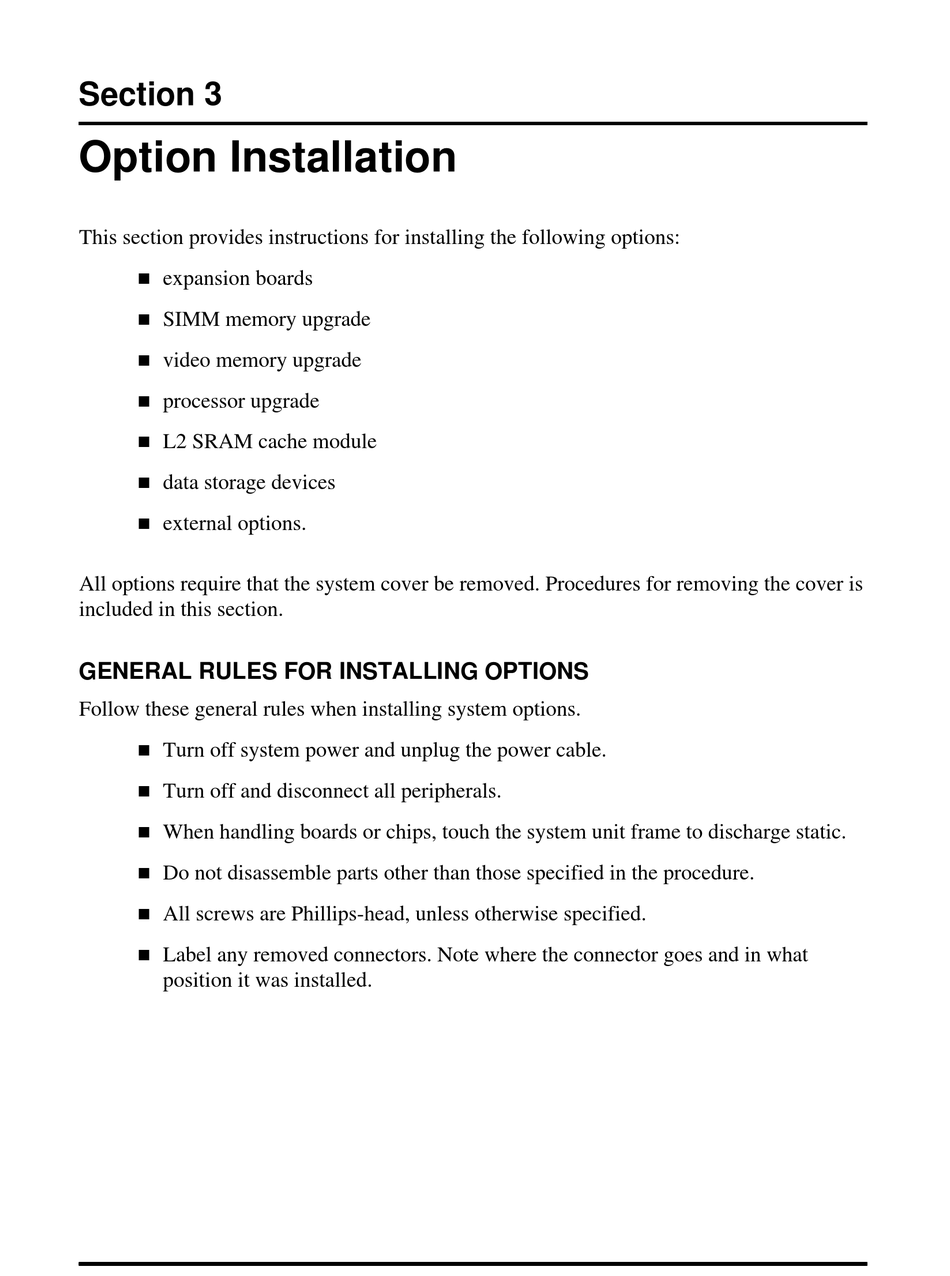

Section 3
Option Installation
This section provides instructions for installing the following options:
n
expansion boards
n
SIMM memory upgrade
n
video memory upgrade
n
processor upgrade
n
L2 SRAM cache module
n
data storage devices
n
external options.
All options require that the system cover be removed. Procedures for removing the cover is
included in this section.
GENERAL RULES FOR INSTALLING OPTIONS
Follow these general rules when installing system options.
n
Turn off system power and unplug the power cable.
n
Turn off and disconnect all peripherals.
n
When handling boards or chips, touch the system unit frame to discharge static.
n
Do not disassemble parts other than those specified in the procedure.
n
All screws are Phillips-head, unless otherwise specified.
n
Label any removed connectors. Note where the connector goes and in what
position it was installed.
