3. If setting up a network-ready system, connect the appropriate network cable to
the network board at the rear of the system (see Figure Section 2-3).
CAUTION: If adding a T-connector, be sure
that other network users are logged off the
system before connecting the cable.

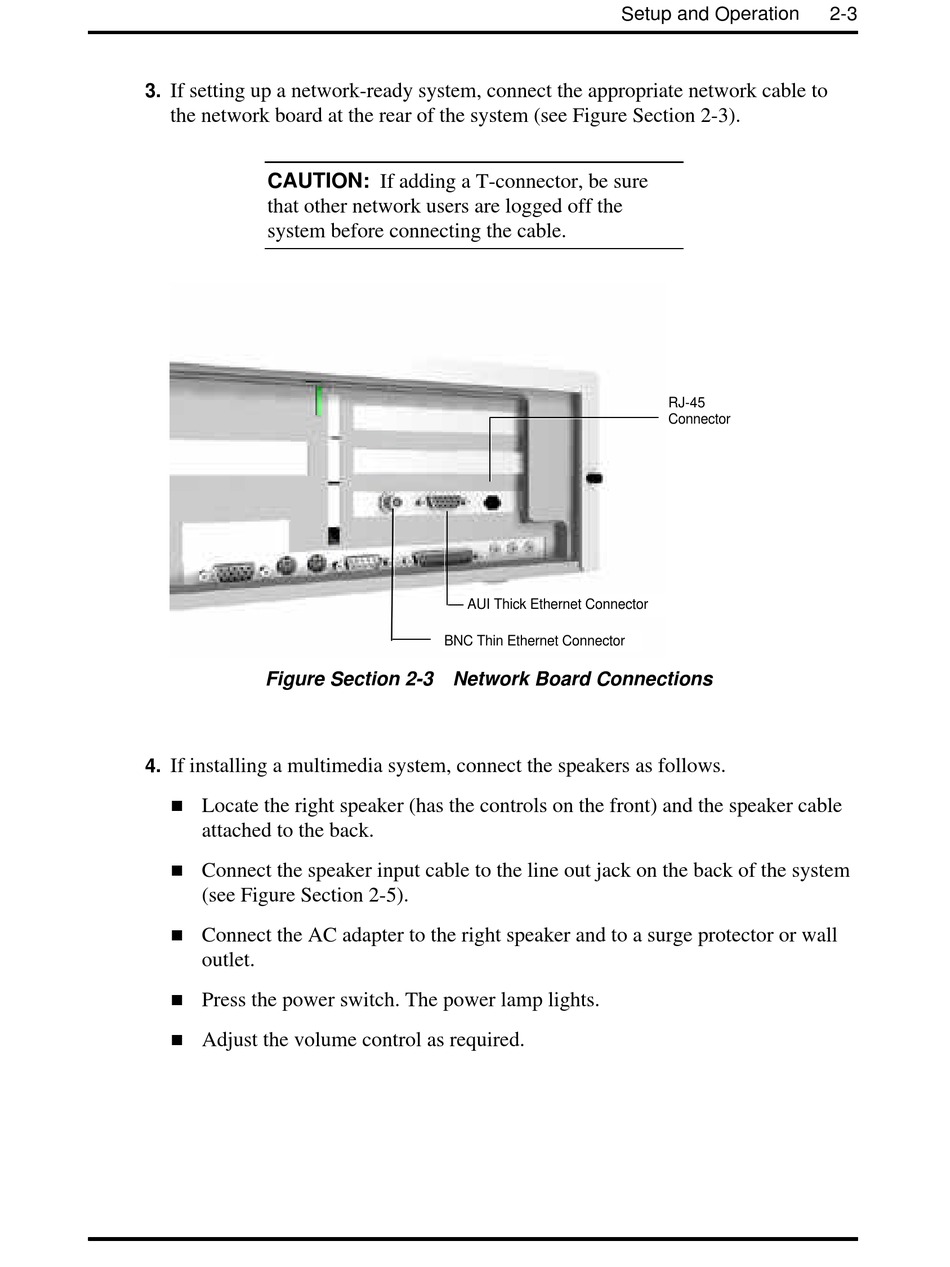

Figure Section 2-3 Network Board Connections
4. If installing a multimedia system, connect the speakers as follows.
n
Locate the right speaker (has the controls on the front) and the speaker cable
attached to the back.
n
Connect the speaker input cable to the line out jack on the back of the system
(see Figure Section 2-5).
n
Connect the AC adapter to the right speaker and to a surge protector or wall
outlet.
n
Press the power switch. The power lamp lights.
n
Adjust the volume control as required.
Setup and Operation
AUI Thick Ethernet Connector
BNC Thin Ethernet Connector
2-3
RJ-45
Connector
