3-24 Option Installation
Screw
Tab
Figure Section 3-27 Removing the 3 1/2-Inch Drive Bracket

Installing the 3 1/2-Inch Drive

Install a hard disk drive into the drive bracket as follows.
Remove the system unit cover as previously described.
1.
2. Remove the 3 1/2-inch drive bracket from the system unit (see "Removing the
3 1/2-Inch Drive Bracket").
3. Follow the preinstallation instructions that come with the device, such as setting
jumpers and switches.
Insert the hard disk drive so that the connectors extend out of the bracket on the
4.
same end as the standard diskette drive connectors.
Align the holes in the hard disk drive with the holes in the bracket.
5.
Secure the device to the bracket with the four screws, two to a side, that come
6.
with the device (see Figure Section 3-29).

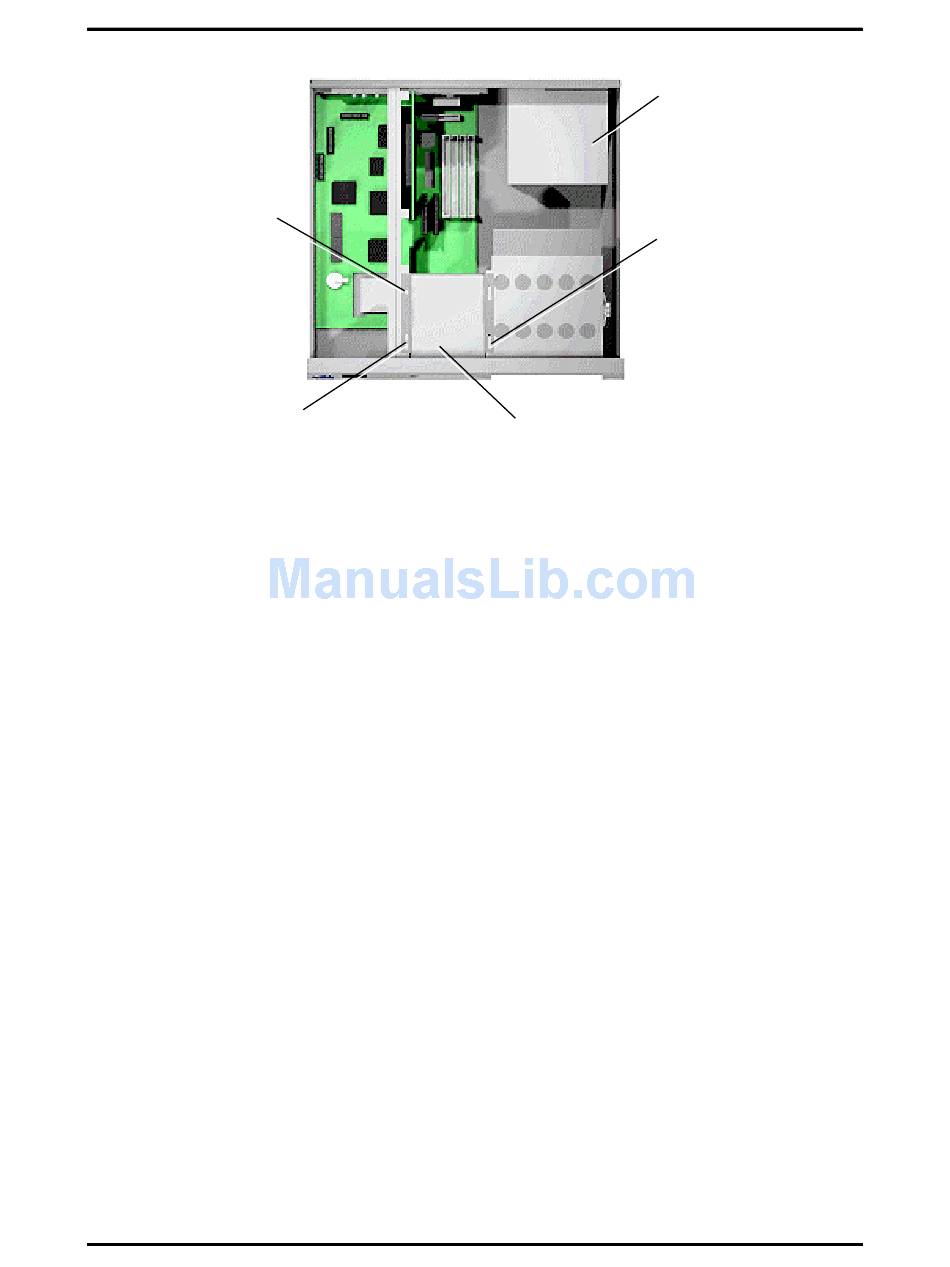

Power
Supply
Tabs
3 1/2-Inch
Drive Bracket
