NEC POWERMATE VE - SERVICE MANUAL 05-1996 Service Manual page 39

2-2 Setup and Operation
Voltage Selector
Switch
Fan
2. Connect the keyboard, mouse, monitor, and printer cables to the back of the
system unit (see Figure Section 2-2).
System Power
Switch

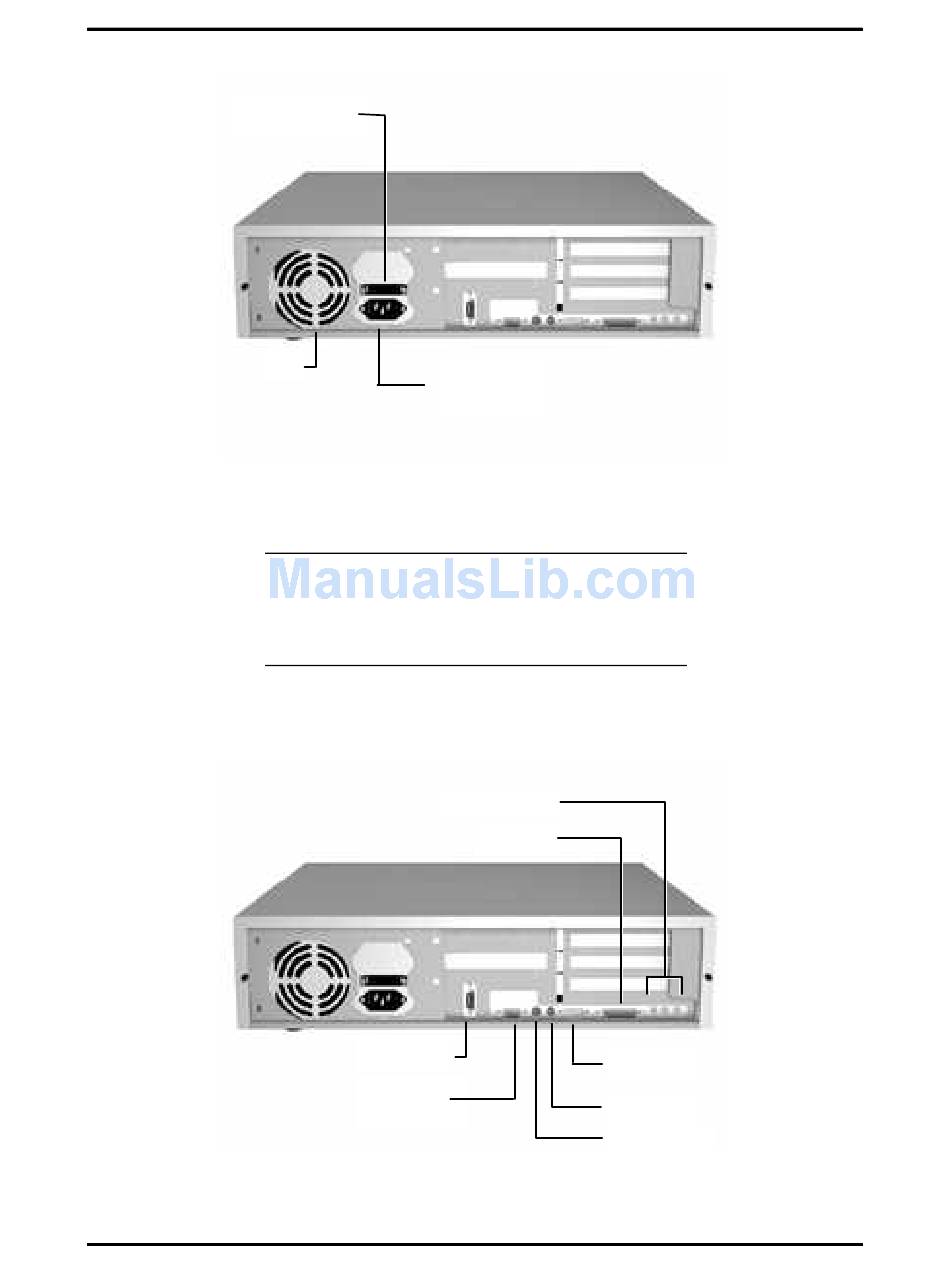

Figure Section 2-1 Voltage Selector Switch
NOTE: The correct AC input voltage must be
properly set. Select the appropriate voltage with
the voltage selector switch located at the rear of
the system.
Audio Connectors
Serial Port 2
VGA Monitor
Connector
Figure Section 2-2 Peripheral Connections
Printer Port
Serial Port 1
Mouse Port
Keyboard Port
