Align the notched ends of the module and socket (see Figure Section 3-19).
Using equal pressure, gently press the module into the socket. Repeat for the
second module.

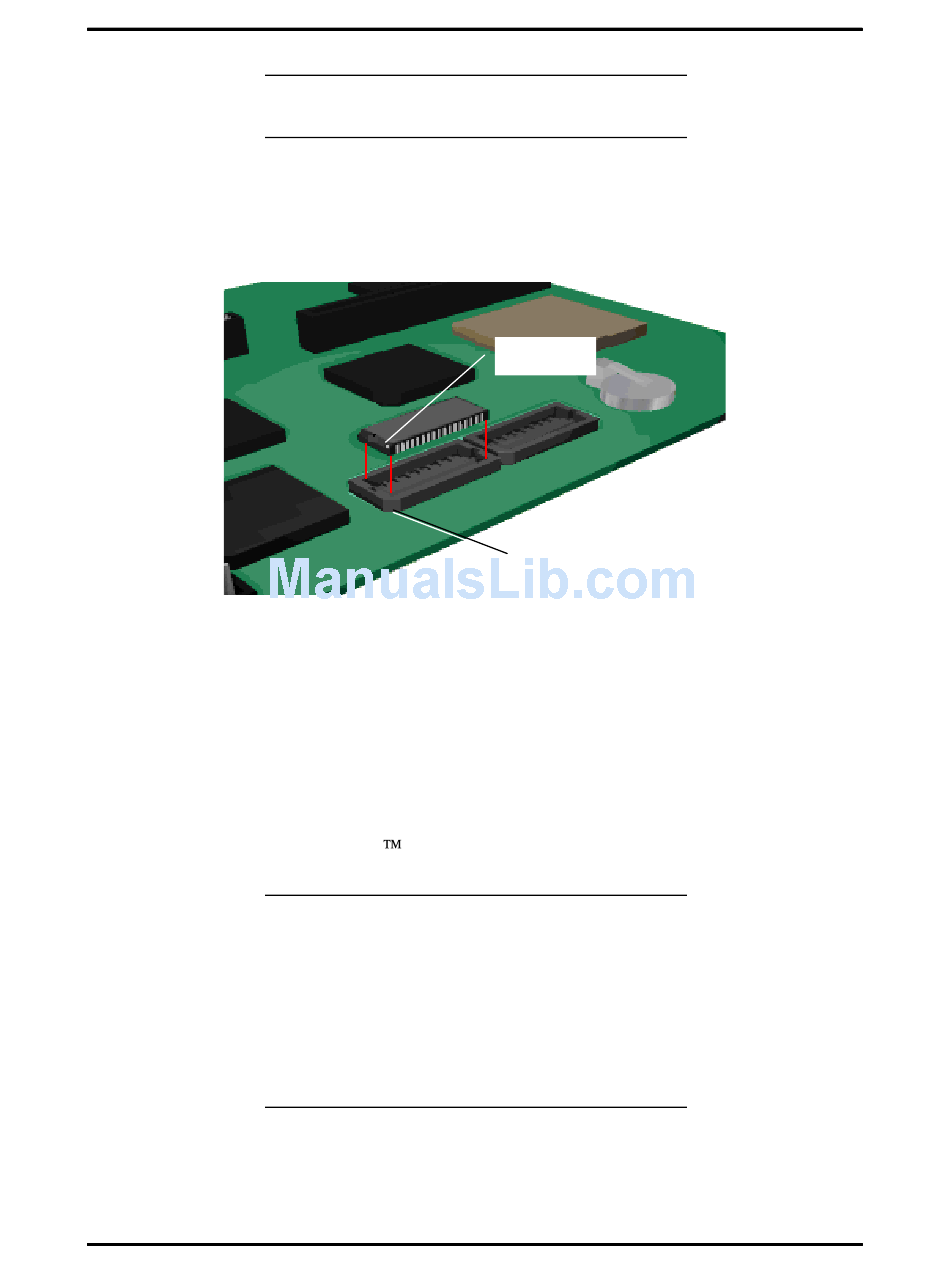

Figure Section 3-19 Aligning the Video DRAM Module with the Socket
4.
Replace any boards that were removed.
5.
Replace the system unit cover.
Processor Upgrade
The zero-insertion force (ZIF) socket accepts pin-grid-array (PGA) processors, such as the
primary processor or an OverDrive
When upgrading the processor, first remove the processor currently installed in the system,
then install the OverDrive processor.
CAUTION: Reduce static discharge by
touching the system's metal chassis.
processor.
CAUTION: Incorrect installation of the
processor can damage the processor, system
board, or both. Follow the installation
instructions carefully.
The system requires a heatsink on the OverDrive
processor. Verify that you have the correct
heatsink for the processor.
Option Installation
Notched End
of Module
Notched Corner
of Socket
3-13
