2-4 Setup and Operation

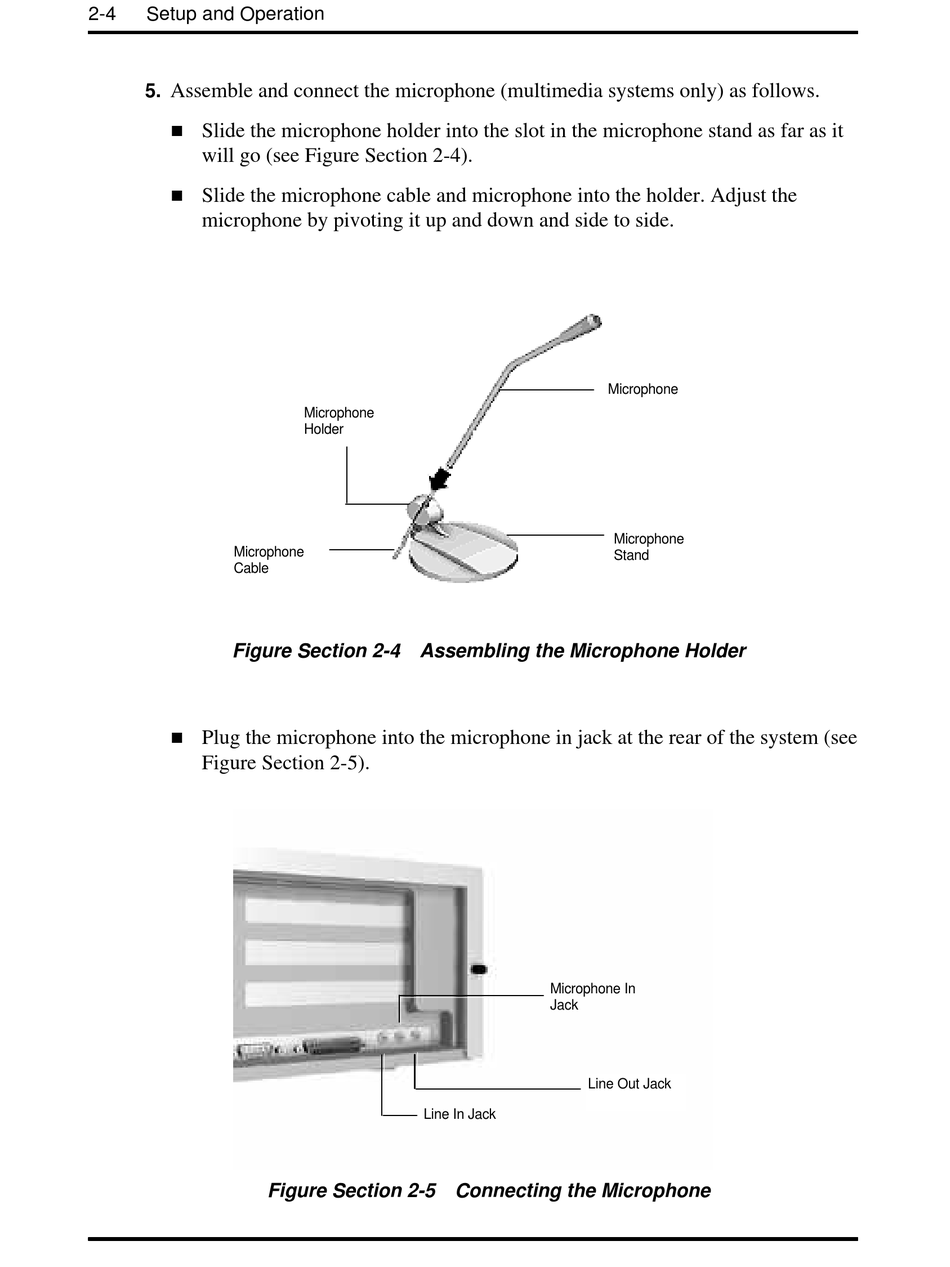

5. Assemble and connect the microphone (multimedia systems only) as follows.
n
Slide the microphone holder into the slot in the microphone stand as far as it
will go (see Figure Section 2-4).
n
Slide the microphone cable and microphone into the holder. Adjust the
microphone by pivoting it up and down and side to side.
Microphone
Cable
Figure Section 2-4 Assembling the Microphone Holder
n
Plug the microphone into the microphone in jack at the rear of the system (see
Figure Section 2-5).
Microphone
Holder
Line In Jack
Figure Section 2-5 Connecting the Microphone
Microphone
Microphone
Stand
Microphone In
Jack
Line Out Jack
