Invacare® LiNX
4.23 Charging the Batteries
WARNING!
Risk of Injury, Damage or Death
Improper routing of charger cord(s) may cause tripping, entanglement or strangulation hazard that may result in injury, damage or
death.
— Ensure all charger cord(s) are routed and secured properly.
— Close supervision and attention is needed when charging the wheelchair near children, pets or people with physical / mental
disabilities.
Please cycle the power prior to charging if wheelchair has not been used within 24 hours. This will ensure the enhanced battery gauge
registers the charge to give an accurate reading during use of wheelchair.

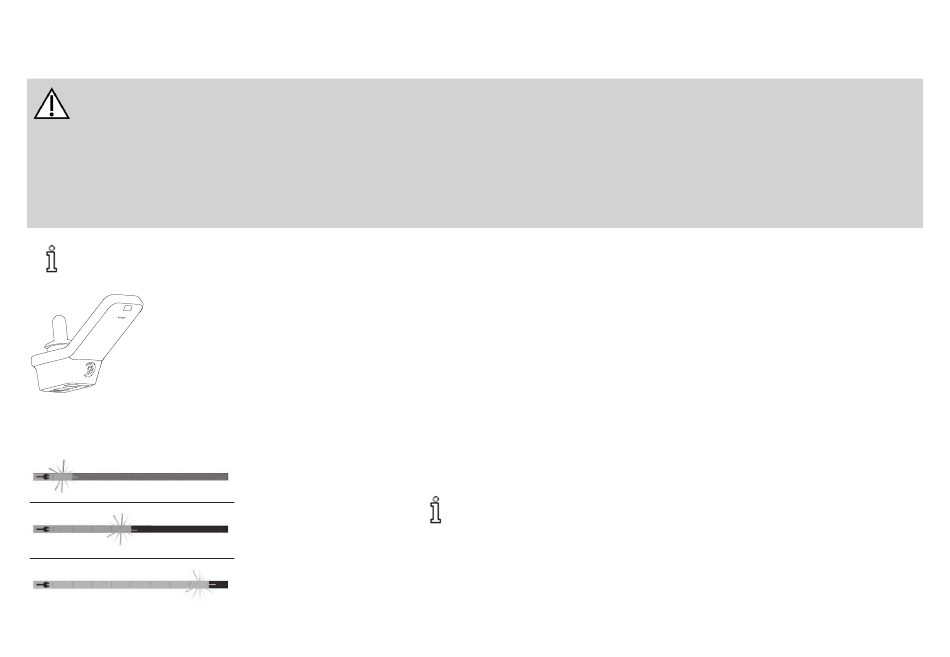

1. Plug battery charger into remote's charger socket A.
A
If remote is powered up, battery gauge indicates that system is connected to charger by displaying a charge sequence and then displaying the
approximate battery charge state at the end of charge sequence.
88
Battery bar displays red
Battery Synchronisation
when charge is < 20 %
Battery bar displays orange
when charge is between
20 % and 60 %
Battery bar displays green
when charge is between
60 % and 100 %
NEW Batteries Only—The wheelchair power must be on during charging to
ensure that accurate battery charge levels display on the remote. New
batteries must be charged fully. The Battery synchronization Procedure
MUST be performed within 24 hours of powering on the wheelchair. The
Battery synchronization procedure can be found in the LiNX service manual
and must be performed by a provider or qualified technician.
