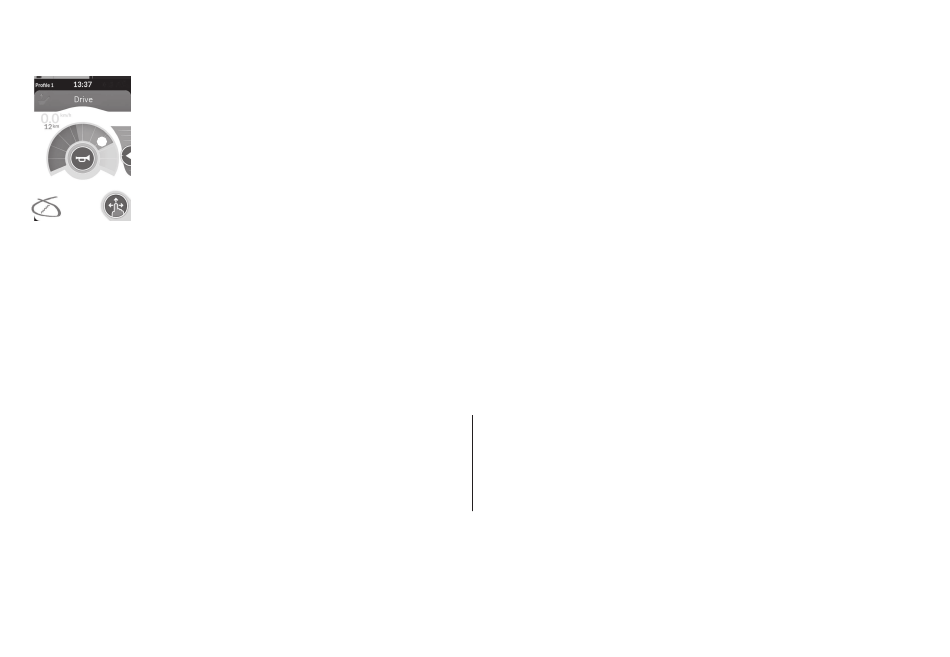

4.10.4 5 Step Up
In this mode, you can step through one of five fixed speeds. The speeds available are 20 %, 40 %, 60 %, 80 % and 100 % of the
A
maximum pre-set reverse or forward speed A of the selected drive card and then remain at that speed for the programmed
Latch Drive Timeout period as long as no further demand is given.
Accelerating
1. Give drive demand in desired direction (forward or reverse).
2. Release drive demand. Wheelchair speed accelerates t o 20 % of the maximum drive speed.
3. Give forward demand when driving forwards or reverse demand w hen driving in reverse to accelerate to next fixed speed.
4. Release drive demand. New speed is held constantly.
Decelerating
When stopping, the speed decelerates to zero at one of two rates (normal or gentle), depending on how the deceleration is triggered (long or
short demand) and if the optional slower rate is configured by the provider.
Normal Rate
1. Give long drive demand, greater than one second, in opposite
direction (a reverse demand when driving forwards or a forward
demand w hen driving in reverse) or
press external stop switch.
Interrupting Deceleration
When stopping (except for an emergency stop or control input configured for a stop), the deceleration can be interrupted to resume driving.
1. Give drive demand for accelerating before speed has reached zero, so speed accelerates to nearest higher fixed speed.
1637423-K
Gentler Rate
1. Give short drive demand, less than one second, in opposite
direction (a reverse demand when driving forwards or a forward
demand when driving in reverse) or
let Latch Drive Timeout expire.
