Invacare® LiNX
Other Configurations
The displayed function cards are configuration examples only.

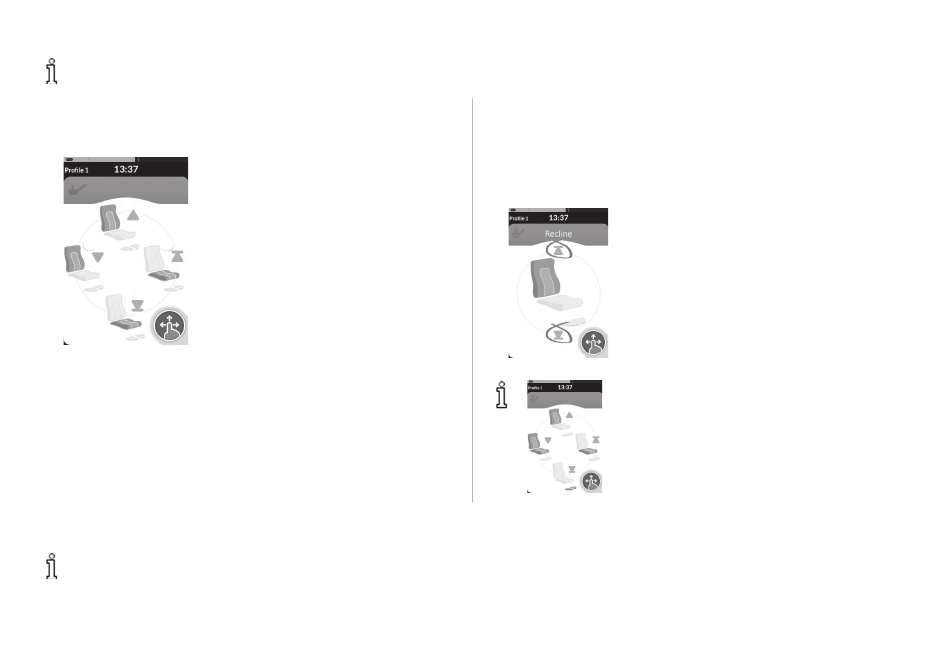

Four Quadrant Configuration
l
A
D B
C
All four quadrants are used for operating powered seating
functions.
1. Give and hold forward A, reverse C, left D or right demand
B to operate seating function.
Motion is deactivated as soon as demand is released or
when motion reaches its end-of-travel.
4.16.2 Through External Switches
Not all configurations and combinations of powered seating functions through external switches are available on all products.
52
A Recline up
B Seat lifter up
C Seat lifter down
D Recline down
Latched Configuration
l
A latched configuration allows you to operate a motion without
continuously providing a demand.
A latched configuration can be a single powered seating function
or a four quadrant configuration.
1. Give demand to front or rear to operate
seating function.
2. Release demand.
Motion is deactivated as soon as joystick
is deflected again or when motion reaches
its end-of-travel.
In a four quadrant configuration it is possible to
mix the motion o perations, like displayed in the
example.
1637423-K
