2 Components

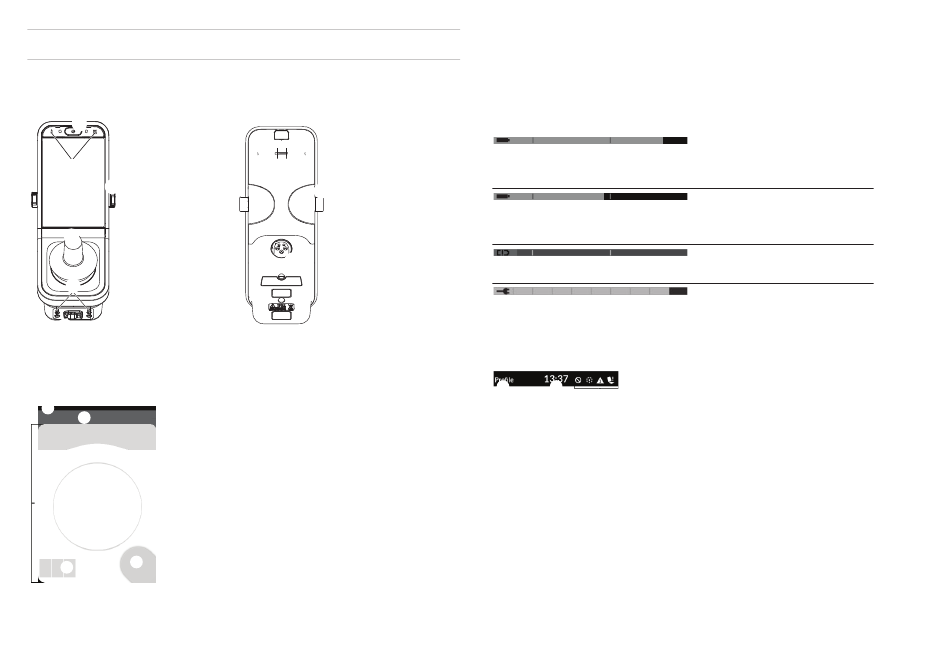

2.1 User Interface REM400
A
ON/OFF key /
A
Status LED
B
Multipurpose
B
J
keys
C
C Touch display
D
D Joystick
Stereo jack
E
E
sockets
F
F Bus socket
2.2 Screen Composition Overview
A Battery bar
A
B
B Status bar
C User function card
C
D Navigation button
E Function information
D
E
1637423-K
Infrared
G
G
transmitter
H
H Speaker
J
I Charger socket
J Toggle switches
I
2.2.1 Battery Bar
The battery bar provides a graphical display of the battery's current
state of charge and, when a battery charger is connected, the charging
status.
Battery bar displays green when state of charge is between
60 and 100%.
Battery bar displays orange when state of charge is between
20 and 59%.
Battery bar displays red when state of charge is less than 20%.
Charging.
2.2.2 Status Bar
A
B
C
Profile Name
The profile name can only be set by the provider.
Time
The time is displayed as a 12– or 24–hour clock. It is set using the
coordinated universal time (UTC) and an offset based on the location
(country) of the user. The UTC is automatically acquired when a system
is connected to a programming and diagnostic tool. The country-based
offset is set through the remote module's Menu screen, refer to 4.2.4
Configuring Settings, page 21.
2 Components
A Profile name B Time
C S tatus information
7
