Installation Guide | iC7 Series Liquid-cooled System Modules

Cooling

3

Insertion of Pipes into Cooling Circuit Connectors

3.1
The insertion length of a Ø16 mm (0.63 in) pipe is 29 mm (1.14 in). Make a mark on the pipe where it can be checked that the pipe is
correctly inserted into the cooling circuit connector.
To remove the pipe from the connector, push the release sleeve towards the connector and pull out the pipe.
For cold PA11 plastic pipes, the minimum bending radius is 138 mm (5.43 in). A smaller bending radius requires heating of the pipe. See
3.3 Cooling Circuit
Pipes.
29
(1.14)
1

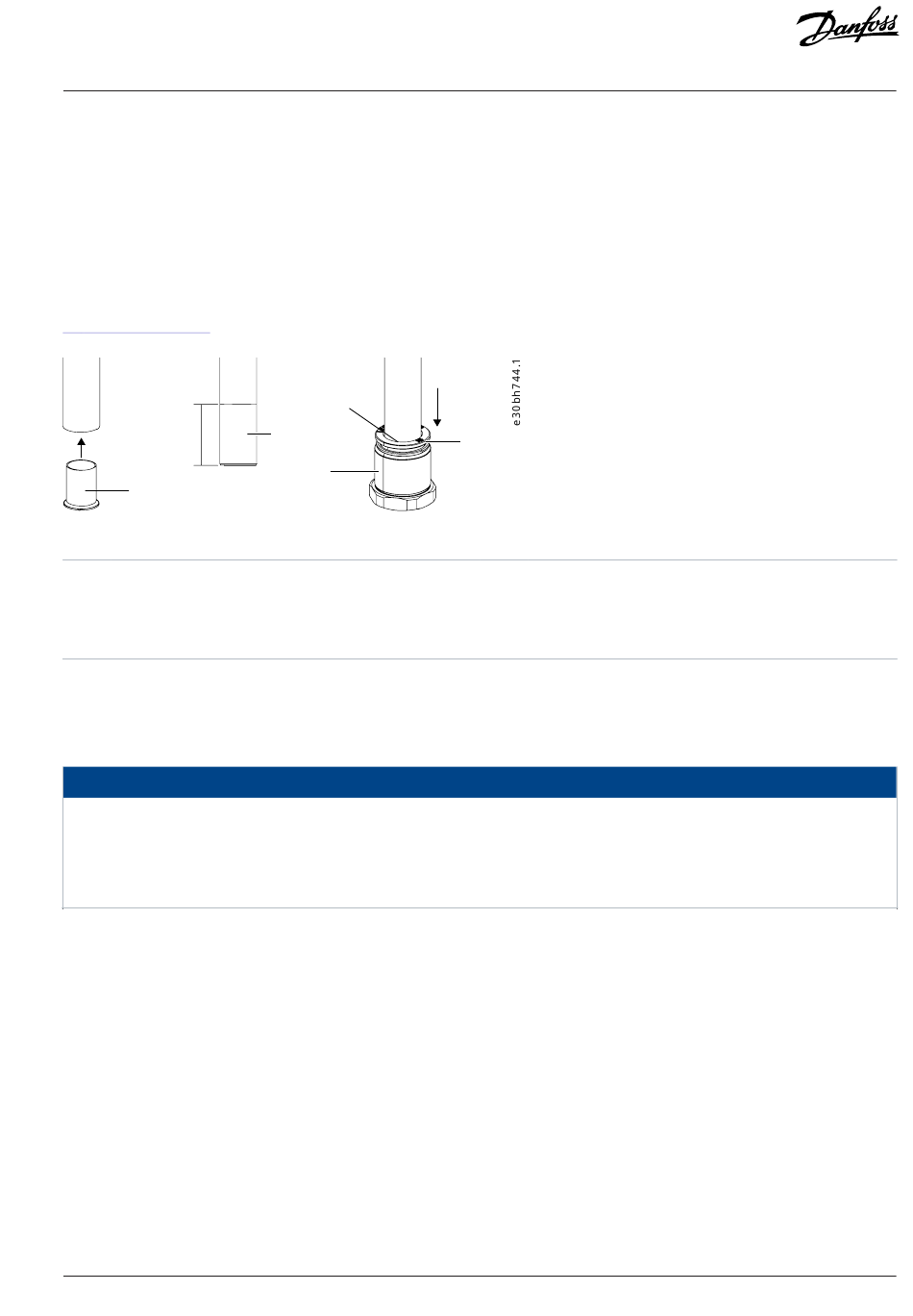

Figure 15: Inserting a Pipe into the Cooling Circuit Connector, mm (in)
1
The pipe ferrule
3
A cooling circuit connector (available as option)
5
The release sleeve

Inlet and Outlet Connectors

3.2

Inlet and Outlet Connectors of System Modules

3.2.1
INCORRECT INLET AND OUTLET CONNECTIONS IN THE COOLING SYSTEM
If inlet and outlet connectors are connected incorrectly, the cooling does not work as expected. Incorrect cooling can damage the
product.
Make the connections carefully.
Danfoss Drives Oy © 2024.03
4
2
3
  NOTICE
5
2
The pipe ferrule inside the pipe
4
The mark in the pipe
AN389643231588en-000101 / 172F6360A |
19
