Installation Guide | iC7 Series Liquid-cooled System Modules
Installing the Cables, INU (IM10L, IM12L), AFE and CG (AM10L, AM12L), and DC/DC Converter
4.5.5
(DM10L, DM12L)
1.
Find the power terminals below the system module. Notice the location of the different terminals.

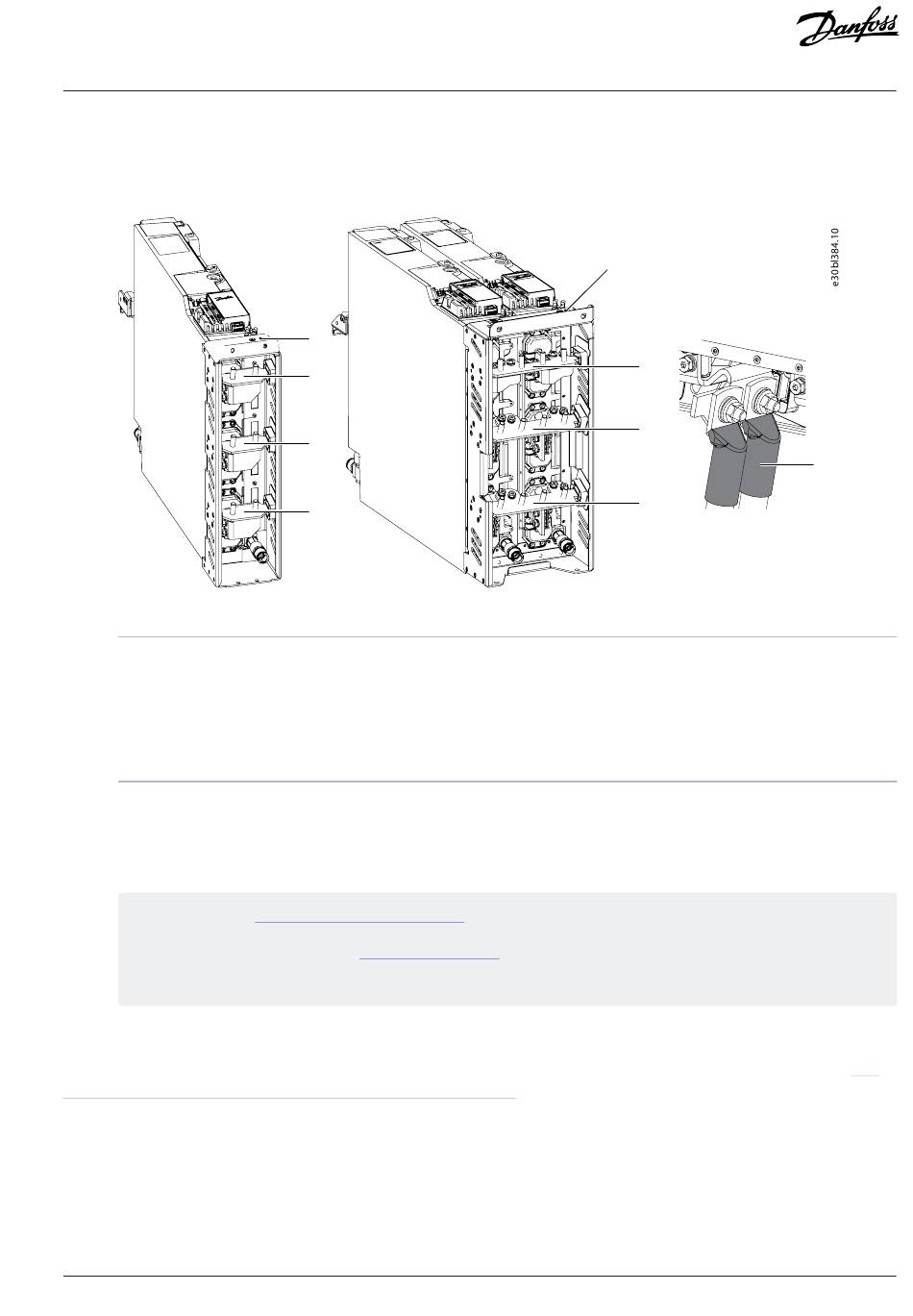

Figure 29: The Power Terminals of IM10L, AM10L, and DM10L (left) and IM12L, AM12L, and DM12L (right)
1
Grounding terminal
3
Motor terminal V (IM10L), mains terminal L2 (AM10L),
or DC terminal V (DM10L)
5
Cable lugs and heat-shrink tubes
2.
Attach the cable lugs to the cables.
3.
Put heat-shrink tubes around the cable lugs and shrink them.
4.
Install the cable lugs to the corresponding motor terminals with washers and nuts.
See the bolt sizes in
See the correct tightening torques in
The terminal bolt spacing is 48 mm (1.89 in).

Installing the Cables with the Power Terminal Adapter, INU IR10L, IR12L

4.5.6
Use this procedure to install cables when more than 2 smaller power cables are preferred, for example in marine installations. See
Alternative Cable Sizes for Marine Installations, INU Modules 525–690 V
One power terminal adapter (+AFMC) is needed for IR10L, and 2 adapters for IR12L.
Procedure
1.
Install a power terminal adapter first to the lowest terminal W/T3.
Danfoss Drives Oy © 2024.03
1
2
3
4
7.2.1 List of Cable Size Information.
7.1 Tightening
1
2
Motor terminal U (IM10L), mains terminal L1 (AM10L),
or DC terminal U (DM10L)
4
Motor terminal W (IM10L), mains terminal L3 (AM10L),
or DC terminal W (DM10L)
Torques.
AC.
2
3
4
AN389643231588en-000101 / 172F6360A |
5
7.2.6
31
