Installation Guide | iC7 Series Liquid-cooled System Modules
Preparing for a PC Connection
6.5
Use these instructions to connect the drive or several drives to a PC with an RJ45 cable.
1.
Connect an RJ45 cable to the PC.
To connect several drives at the same time, use an Ethernet switch between the PC and the control unit.
1
Ethernet switch

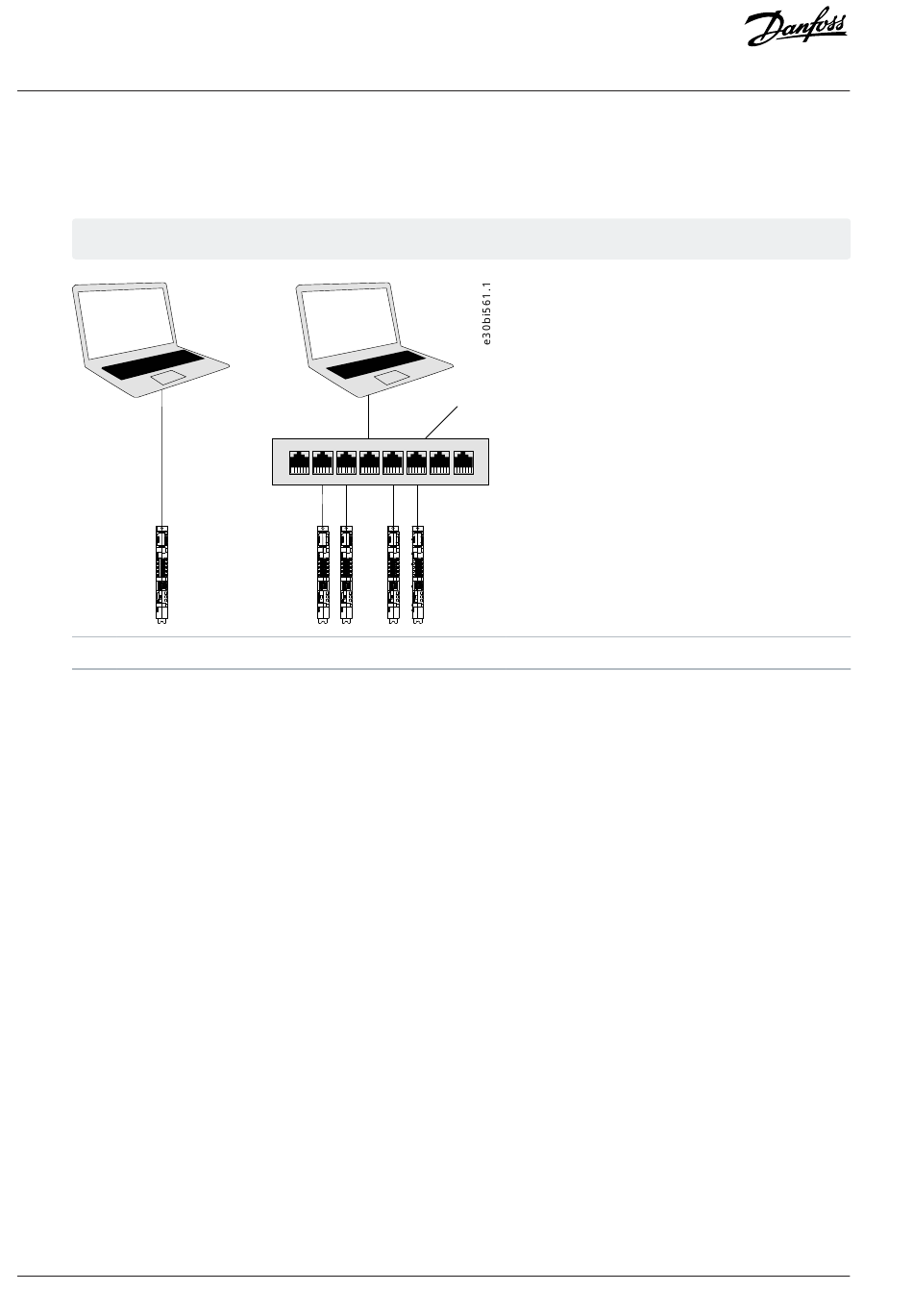

Figure 54: Connecting the Drive to a PC
2.
Connect the cable coming from the PC or from the Ethernet switch to the Ethernet port X0 on the control unit of the drive.
3.
See the Application Guide for information on the next steps.
54
| Danfoss Drives Oy © 2024.03
1
AN389643231588en-000101 / 172F6360A
