Installation Guide | iC7 Series Liquid-cooled System Modules

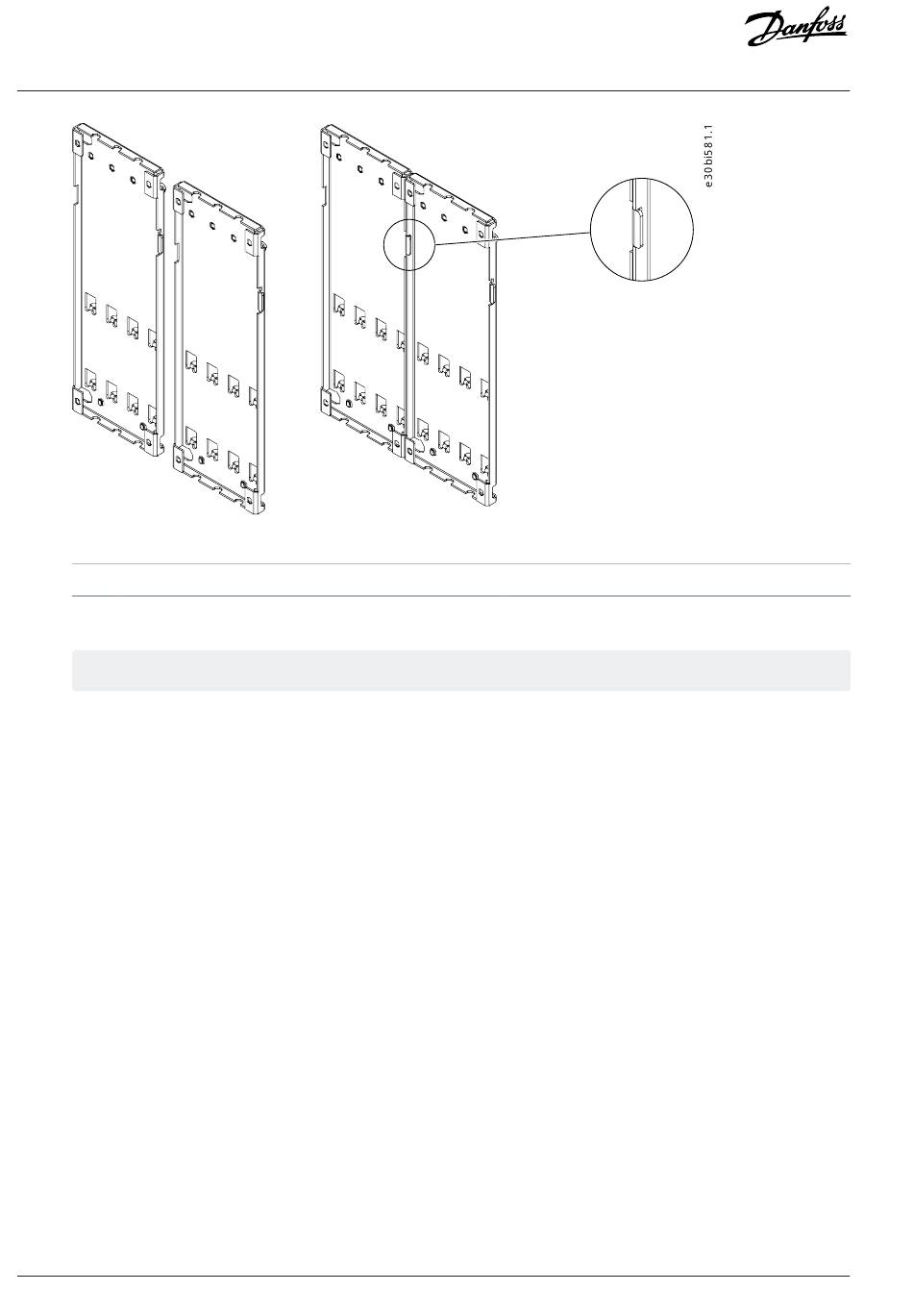

Figure 46: Attaching Mounting Plates to Each Other

Lip

Attach the mounting plates onto the cabinet with screws by the 4 mounting holes in the corners of the mounting plates.

The screws are not included in the delivery. Use an M4/M5 screw.

Installing the Control Unit

5.3

Install the control unit to the selected location. Use the 4 mounting holes in the corners of the mounting plate.

5.4

Connect the PLC to the Ethernet port X1 or X2 in the control board with a fieldbus cable.

Connect the terminal X80 in the control board to the terminal X90 in the star coupler board with a fiber cable.

Connect the terminals X301–X316 in the star coupler board to the power units with fiber cables.

AN389643231588en-000101 / 172F6360A
