Table 11: Relay 2 Signals (X102)
Terminal
Function
4
COM
5
NO
6
NC
Table 12: Relay 3 Signals (X103)
Terminal
Function
7
COM
8
NO
Connecting the Control Panel
5.10
1.
Connect the control panel to the terminal X9 in the modular control unit with a panel cable adapter.
Installing the microSD Card
5.11
Supported microSD card types:
SD
SDHC
SDXC
The microSC card must be formatted for the file system FAT32. It is recommended to use SDHC type cards as they are preformatted to
FAT32.
1.
Locate the microSD card hole on the control board of the control unit.

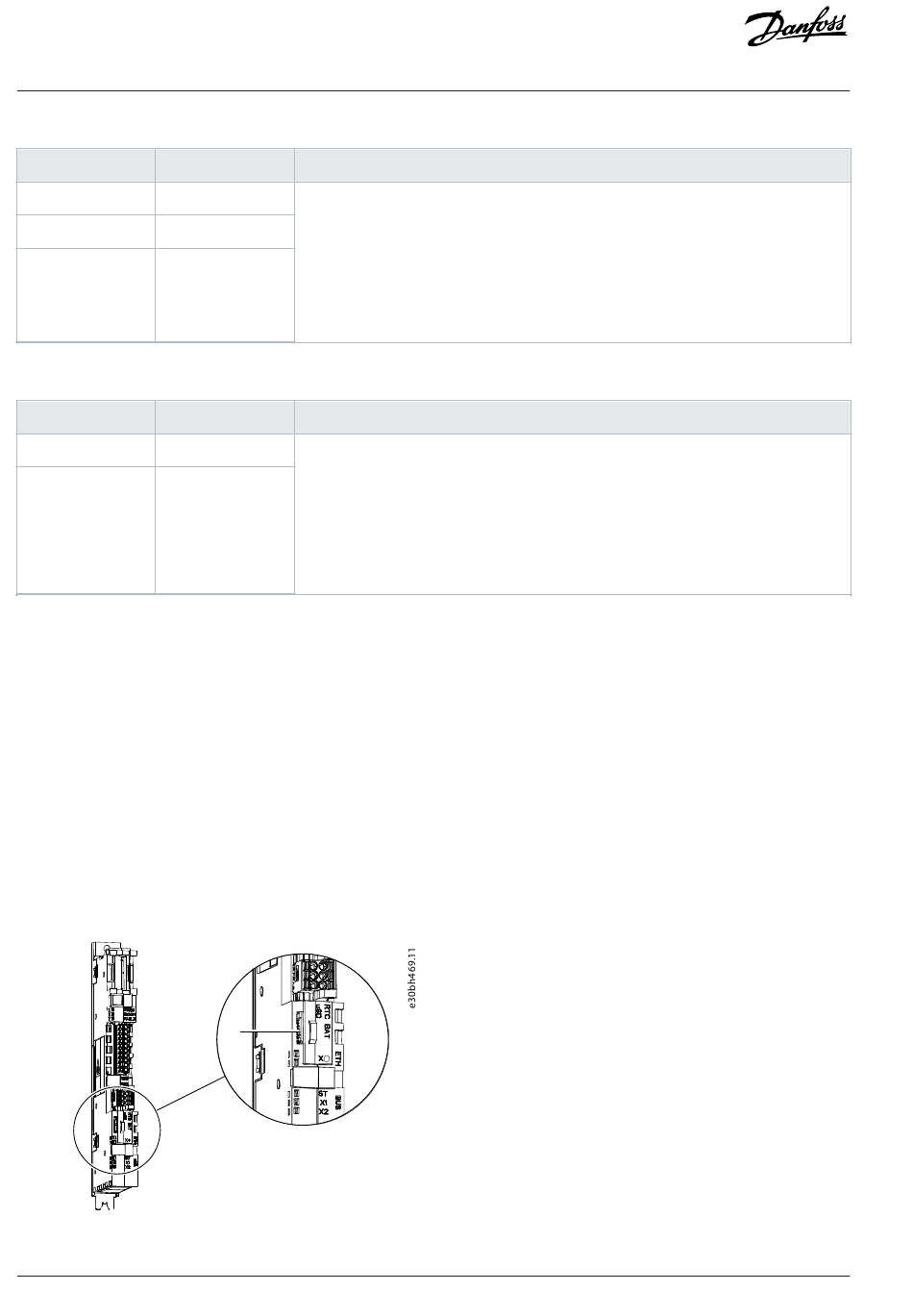

Figure 53: Location of the microSD Card
50
| Danfoss Drives Oy © 2024.03
Description
Configurable relay output.
Switching capacity:
• 24 V DC/8 A
• 250 V AC/8 A
• 125 V DC/0.4 A
Minimum switching load: 5 V/10 mA
Description
Configurable relay output.
Switching capacity:
• 24 V DC/8 A
• 250 V AC/8 A
• 125 V DC/0.4 A
Minimum switching load: 5 V/10 mA
1
AN389643231588en-000101 / 172F6360A
