Mechanical Installation

2

Installation Requirements

2.1
The system modules that are described in this guide have the protection rating IP00/Open Type. Install them in a cabinet or other
enclosure that has a correct level of protection against the ambient conditions in the installation area.
The installation procedure varies between product categories and mechanical variants depending on selected options.
Reserve enough space around the system module to ensure sufficient cooling. The mounting plane must be relatively even.

Installation Directions

2.2
Do not install the system module upside down or the front side facing down.
The system module can be installed vertically, horizontally, and on its backside.

Installing System Modules

2.3

Installing System Modules into a Cabinet Vertically

2.3.1
1.
Install the system module into the cabinet in a vertical position.
2.
Use mounting holes to attach the system module into the cabinet.
a.
Use M6 grade 8.8 screws.
b.
For an AM12L or IM12L, use M8 grade 8.8 screws for the lower parts.
1

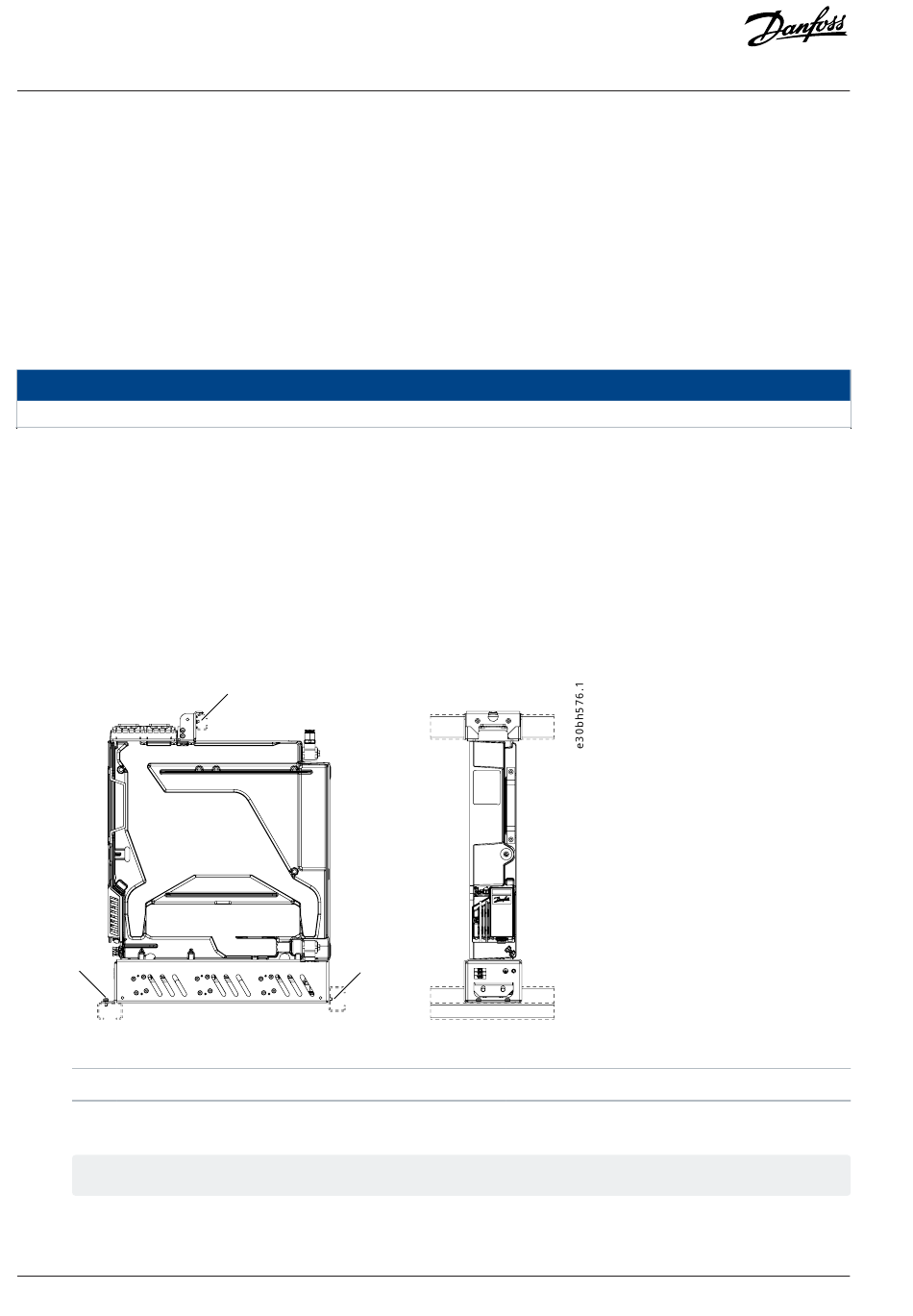

Figure 5: Mounting Holes of the System Module in Vertical Position
1
Mounting holes
3.
Attach the system module to the mounting brackets of the cabinet.
The mounting brackets are not included in the delivery.
a.
To ease the removal of the system module from the cabinet for service, use support bars under the system module.
10
