Control Installation

5

Assembling the Control Unit Mounting Plates

5.1
Use these instructions to assemble the mounting plate of the modular control unit. All the parts can be found in the accessories bag.
1.
Assemble the mounting plate as shown in the illustration.
a.
Attach the base grounding plate into the mounting plate.
b.
Align the cable clamps in the holes in a wave-like form and attach with screws.
c.
Attach the grounding plate extension onto the base grounding plate with 2 screws.
d.
Attach the cable clamps with screws.
1
3

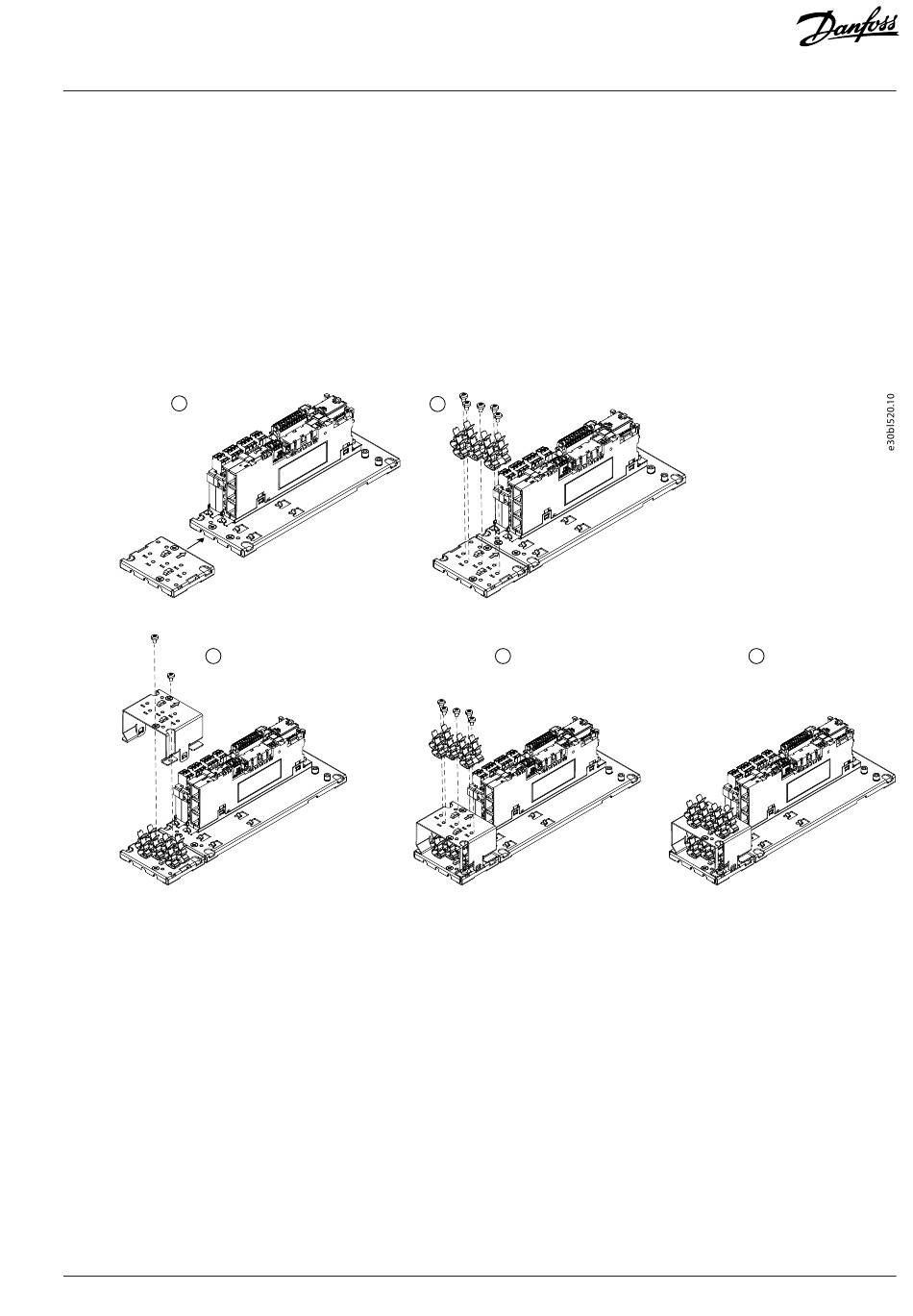

Figure 45: Assembling the Mounting Plate

Attaching the Control Unit Mounting Plates

5.2
Use these instructions to attach 2 or several mounting plates to each other, and to install mounting plates to the cabinet. All the parts
can be found in the accessories bag.
1.
Install the mounting plates to each other by fitting the sides together.
Danfoss Drives Oy © 2024.03
2
4 5
