Installation Guide

iC7 Series Liquid-cooled L Filter OF7Z5

1 Overview

L Filter

1.1

The L Filter is used together with an LC Filter to create an LCL input filter for AFE or grid converter modules in applications where

regenerative or low-harmonic functionality is required.

There are 3 electrical sizes of the filter: 400 A, 1000 A, and 1640 A.

400 A

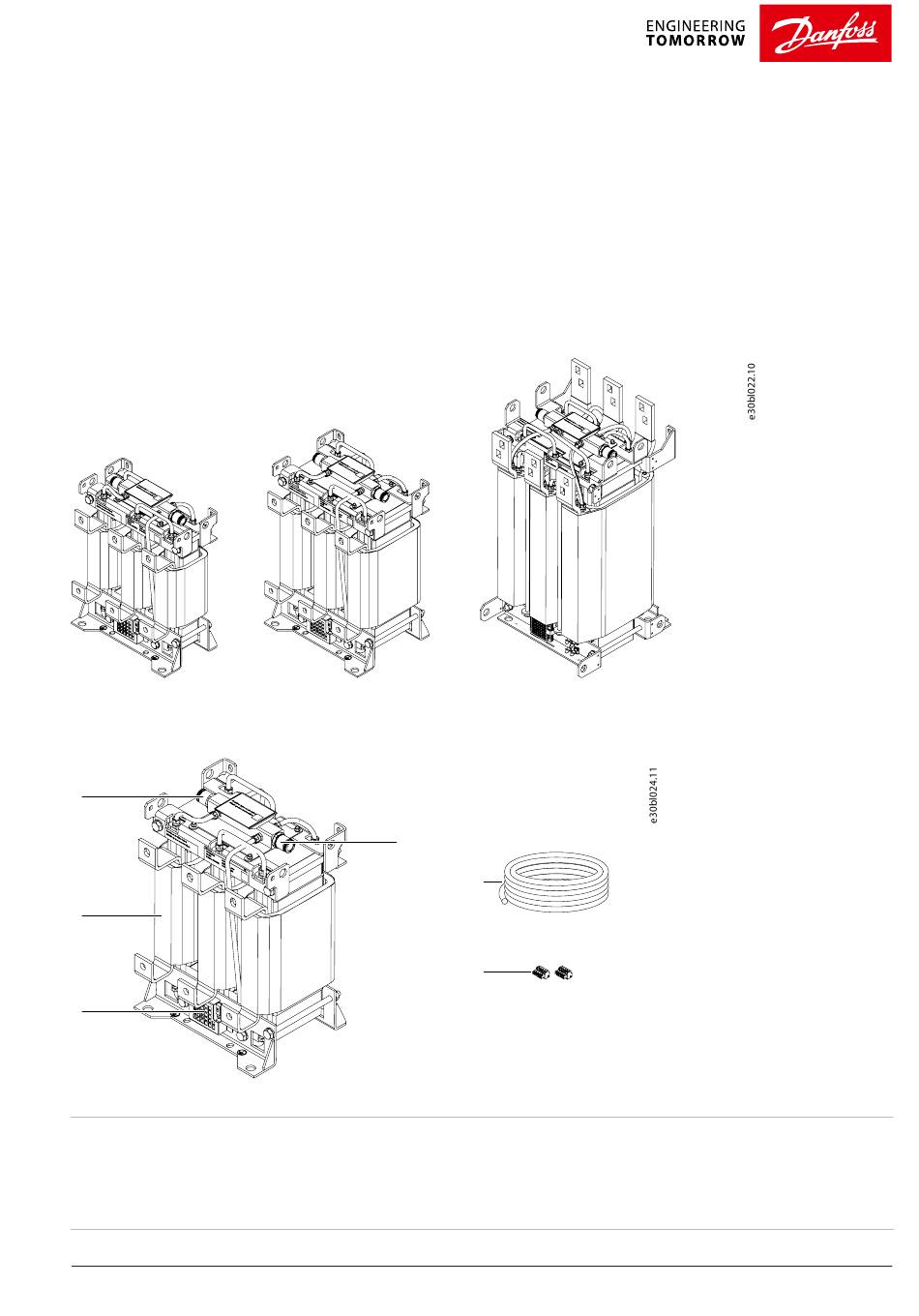

Figure 1: Liquid-cooled L Filters

Contents of the Delivery

1.2

Figure 2: Items Included in the Delivery

L Filter, 400 A, 1000 A, or 1640 A

Push-in cooling connectors, 2 pcs (available as option

+ANN1)

AuxBus terminals, 2 pcs

1000 A

1640 A

AuxBus temperature measurement board (installed)

AuxBus cable, 3 m (9.8 ft)

AN447722950367en-000201 / 172K1111B |

Need help?

Do you have a question about the iC7 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Danfoss iC7 Series

Page 1 Installation Guide iC7 Series Liquid-cooled L Filter OF7Z5 1 Overview L Filter The L Filter is used together with an LC Filter to create an LCL input filter for AFE or grid converter modules in applications where regenerative or low-harmonic functionality is required.
Page 2 Only qualified personnel are allowed to perform the installation described in this guide. Follow the instructions in this guide and relevant local regulations. Also read the instructions and safety information in the iC7 Series Air-cooled and Liquid-cooled System Modules Installation Safety Guide. Installation Requirements The products described in this guide have the protection rating IP00/UL Open Type.
Page 3 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Mechanical Installation Figure 3: Installing the L Filter into a Cabinet (400 A, 1000 A) Square mounting holes The mounting holes at the top The mounting holes at the bottom Use the mounting holes to attach the filter.
Page 4 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Mechanical Installation Figure 4: Installing the L Filter into a Cabinet (1640 A) The mounting holes at the top The bracket The mounting holes at the bottom Use the bracket to attach the filter from below.
Page 5 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Mechanical Installation Dimensions of the L Filter Ø9.5 x 14 (4.13) (0.37) (0.39) (7.48) (6.93) (11.81) (10.39) (4.92) Ø10 Ø9.5 x 14.5 (0.39) (0.37) Ø13 x 18 (0.51) Ø13 (0.51) (6.50) (4.13)
Page 6 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Mechanical Installation Ø11 x 14 (0.43) (4.13) (0.39) (7.48) (11.81) (10.39) (9.29) Ø9.5 x 14.5 (7.28) (0.37) Ø10 (0.39) Ø13 x 18 (0.51) Ø13 (0.51) (4.13) (4.13) (8.86) 249.9 (11.50) (9.84) (7.48)
Page 7 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Mechanical Installation (9.72) Ø18 (7.68) (0.71) (1.97) (1.97) Ø4.5 (0.51) (0.51) (0.51) (0.51) (0.18) (0.55) Ø4.5 (0.33) (0.18) 32.5 (1.27) (0.51) (0.51) 23.5 (0.51) (0.51) (0.93) 24.5 (0.96) 298.5 100(3.94) (11.75) (2.56)
Page 8 General Information on Cooling NOTICE For more detailed information about the requirements for liquid-cooling, see the iC7 Series Liquid-cooled System Modules Design Guide. The product is cooled with liquid. The liquid circulation of the drive is usually connected to a heat exchanger (liquid-to-liquid or liquid-to- air) that cools down the liquid circulating in the cooling elements.
Page 9 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Cooling Requirements These glycols already include corrosion inhibitors. Do not add any other inhibitor. Do not mix different glycol qualities because there can be harmful chemical interactions. The glycol concentration of the coolant must be 25–55% by volume, according to the specified ambient temperature. Higher concentration reduces cooling capacity.
Page 10 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Cooling Requirements 26 27 28 29 l/min Figure 9: Pressure Drop, L Filter OF7Z5, 690 V/1000 A 26 27 28 29 l/min Figure 10: Pressure Drop, L Filter OF7Z5, 690 V/1640 A Cooling Circuit Connectors The L Filter has cooling circuit connectors at the top of the filter.
Page 11 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Electrical Installation Table 1: Recommended Connectors Connector Tightening torque Pipe Pipe ferrule Parker 69111621 MALE STUD 20–30 Nm PA 16/13 pipe Parker 1827-16-13 1/2"BSPP SS STEEL 31 6L D16 (177–265 in-lb) EPDM SEAL...
Page 12 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Electrical Installation Cable Requirements For information about recommended cable types and required cable sizes, see the iC7 Series Liquid-cooled System Modules Design Guide. Grounding Ground the filter in accordance with applicable standards and directives.
Page 13 AuxBus Connections NOTICE For the drive to be able to protect the filters, AuxBus must be connected. For more information about AuxBus, see the iC7 Series Liquid-cooled System Modules Design Guide. Danfoss Drives Oy © 2024.11 AN447722950367en-000201 / 172K1111B |...
Page 14 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Electrical Installation Procedure Connect the AuxBus cable between the L Filter and the LC Filter. If there are several parallel filters, connect each L Filter to the LC Filters individually. Connect the end of the AuxBus cable where the insulation was removed to terminal X85 on the LC Filter.
Page 15 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Electrical Installation Figure 16: Using the Cable Clamps Stripping length, 15 mm (0.59 in) Strain relief Grounding At the terminal X86 end of the cable, place the cable in a cable clamp for strain relief.
Page 16 These conditions can include, for example, extreme temperature, dust, high humidity, hours of use, corrosive environment, and loading. For operation in stressful conditions, Danfoss offers the DrivePro® Preventive Maintenance service. DrivePro® services extend the lifetime and increase the performance of the product with scheduled maintenance including customized part replacements. DrivePro® services are tailored to your application and operating conditions.
Page 17 Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5 Maintenance Table 4: Maintenance Schedule for Liquid-cooled Filters (continued) Component Inspection Preventive maintenance actions Service schedule interval Cable routing 1 year – Check for parallel routing of motor cables, mains wiring, and sig- nal wiring.
Page 18 The advan- coolant tage of using a pre-mixed coolant is that the chemical composi- tion is within Danfoss specifications, and there is no need for ana- lyzing the coolant. Demineralized wa- 1 year...
Page 19 Contact your local Danfoss office for further information on environmental aspects and recycling instructions for professional recyclers. End-of-life treatment must follow international and local regulations. All products are designed and manufactured in accordance with Danfoss company guidelines on prohibited and restricted substances. A list of these substances is available at www.danfoss.com.
Page 20 Danfoss reserves the right to alter its products without notice. This also applies to products ordered but not delivered provided that such alterations can be made without changes to form, fit or function of the product. All trademarks in this material are property of Danfoss A/S or Danfoss group companies.
