Installation Guide | iC7 Series Liquid-cooled System Modules
1

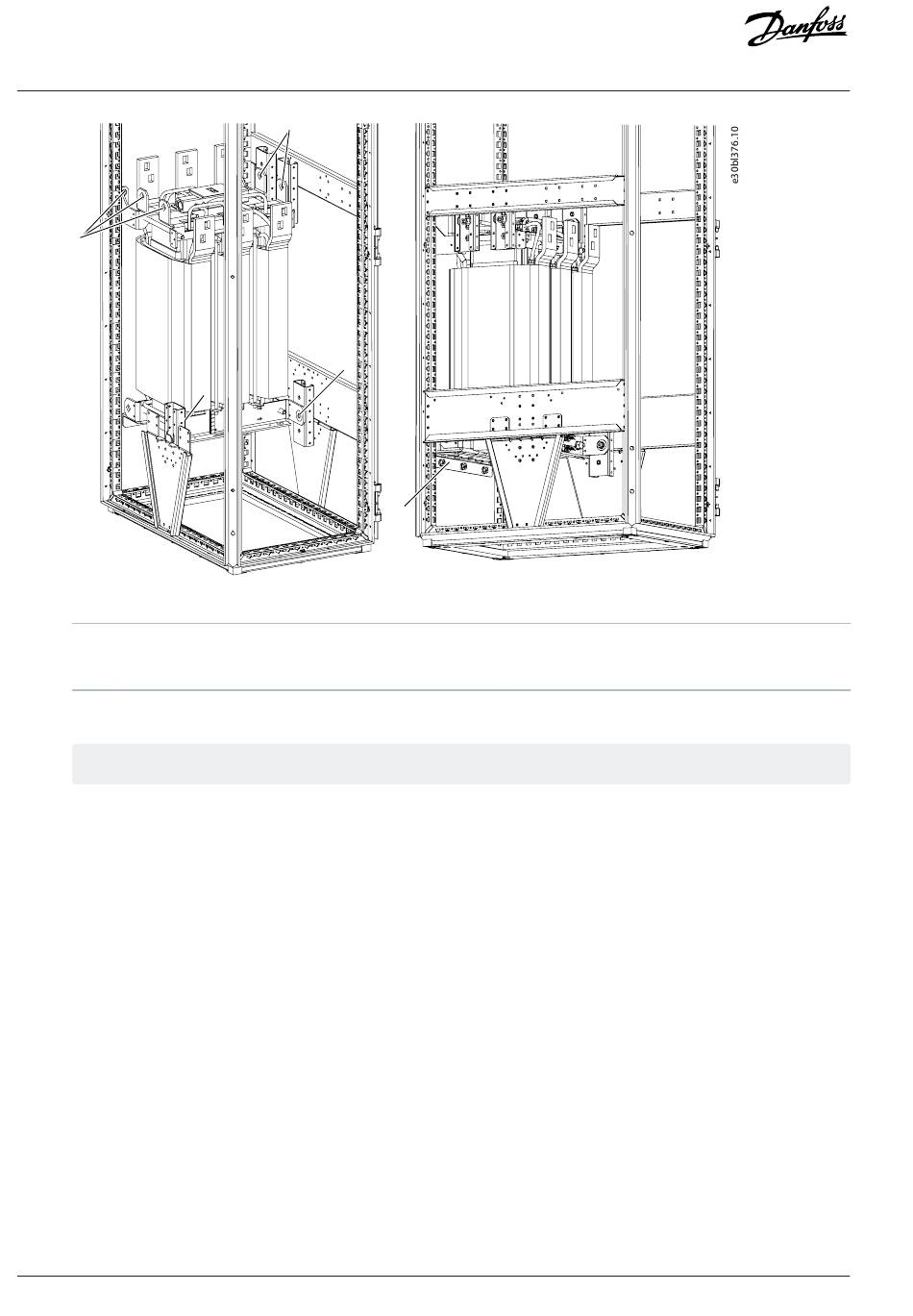

Figure 14: Installing the L Filter into a Cabinet (1640 A)
1
The mounting holes at the top
3
The mounting holes at the bottom
3.
Use the bracket to attach the filter from below.
The mounting brackets are not included in the delivery.
18
| Danfoss Drives Oy © 2024.03
1
3
3
2
2
The bracket
AN389643231588en-000101 / 172F6360A
