Installation Guide | iC7 Series Liquid-cooled System Modules
1
2
1

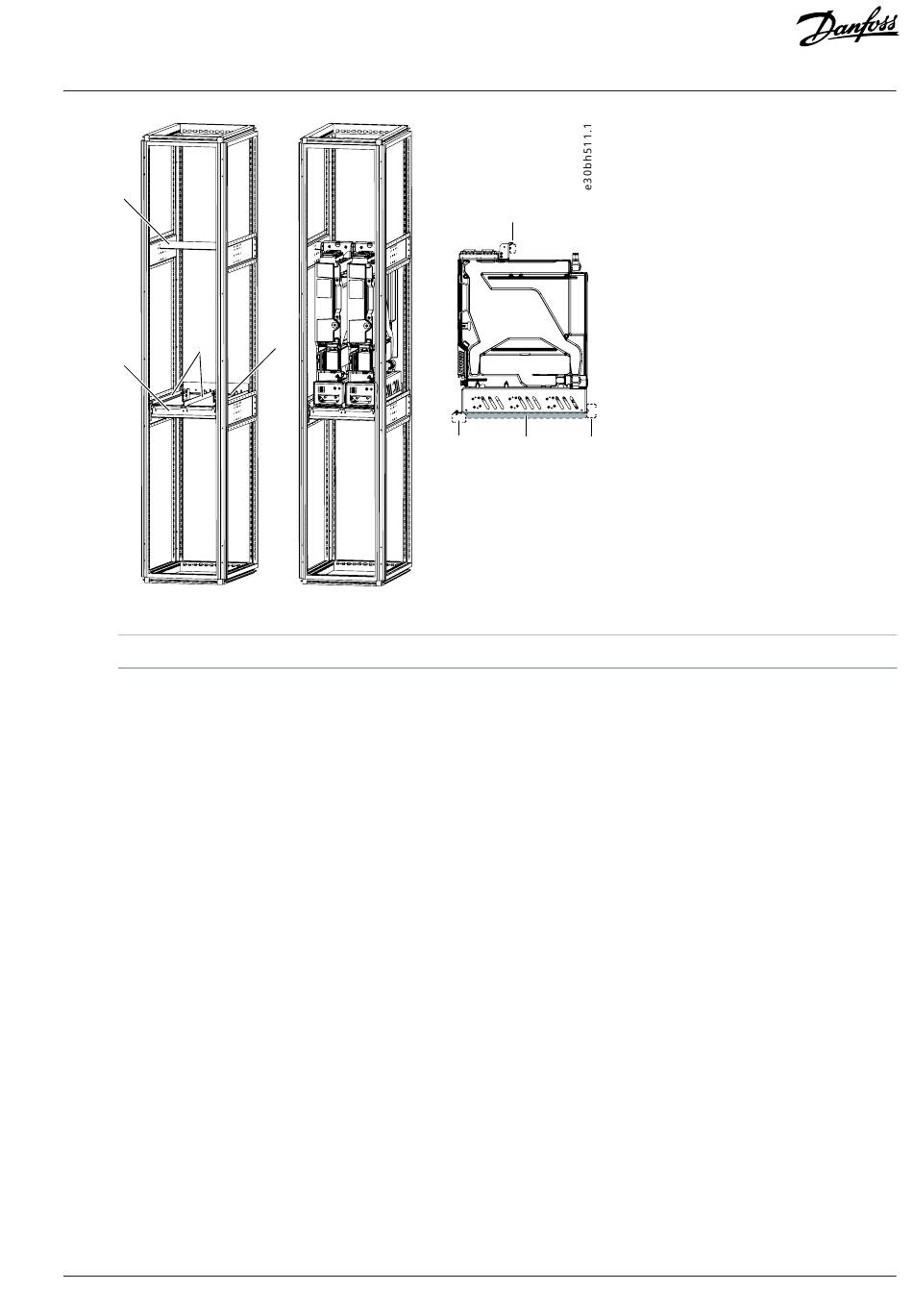

Figure 6: The Mounting Brackets and the Installation of System Modules into the Cabinet
1
Mounting brackets
Installing System Modules into a Cabinet Horizontally
2.3.2
1.
Install the system module into the cabinet in a horizontal position on its left side.
2.
Use mounting holes to attach the system module into the cabinet.
a.
Use M6 grade 8.8 screws.
b.
For an AM12L or IM12L, use M8 grade 8.8 screws for the lower parts.
Danfoss Drives Oy © 2024.03
1
1
1
2
1
2
Support bars
AN389643231588en-000101 / 172F6360A |
11
