Changing the EMC Protection Level

4.7

4.7.1

In an IT system, to change the EMC protection level of the AC drive from C3 to C4, disconnect the LC Filter ground capacitor.

Procedure

Loosen the screw of the grounding wire of the LC Filter.

Remove the grounding wire from the grounding terminal.

Move the cable lug of the grounding wire with the screw onto the insulator and tighten the screw (maximum 0.5 Nm (4.4 in-lb)).

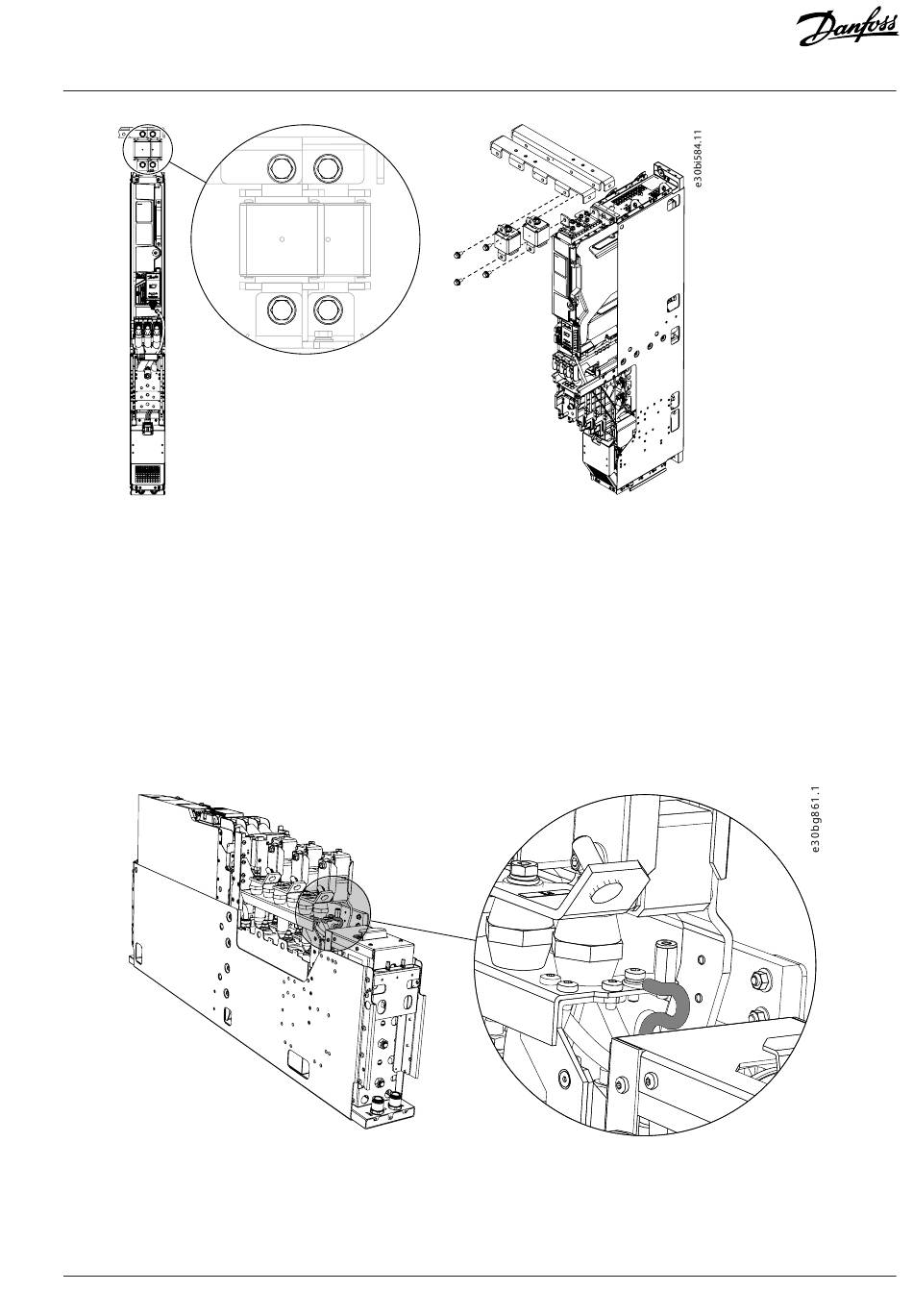

Figure 35: Level C3

DC+

DC-
